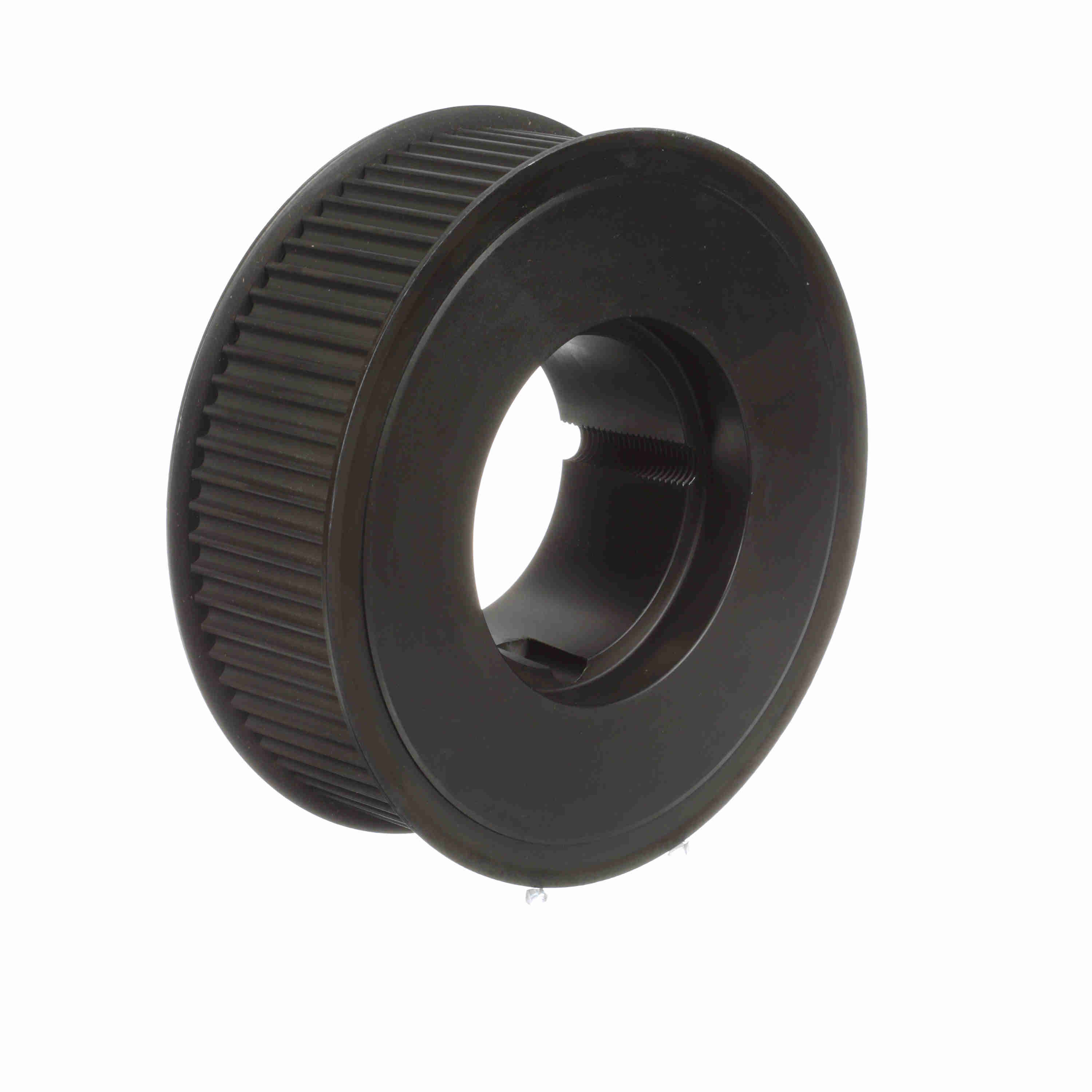

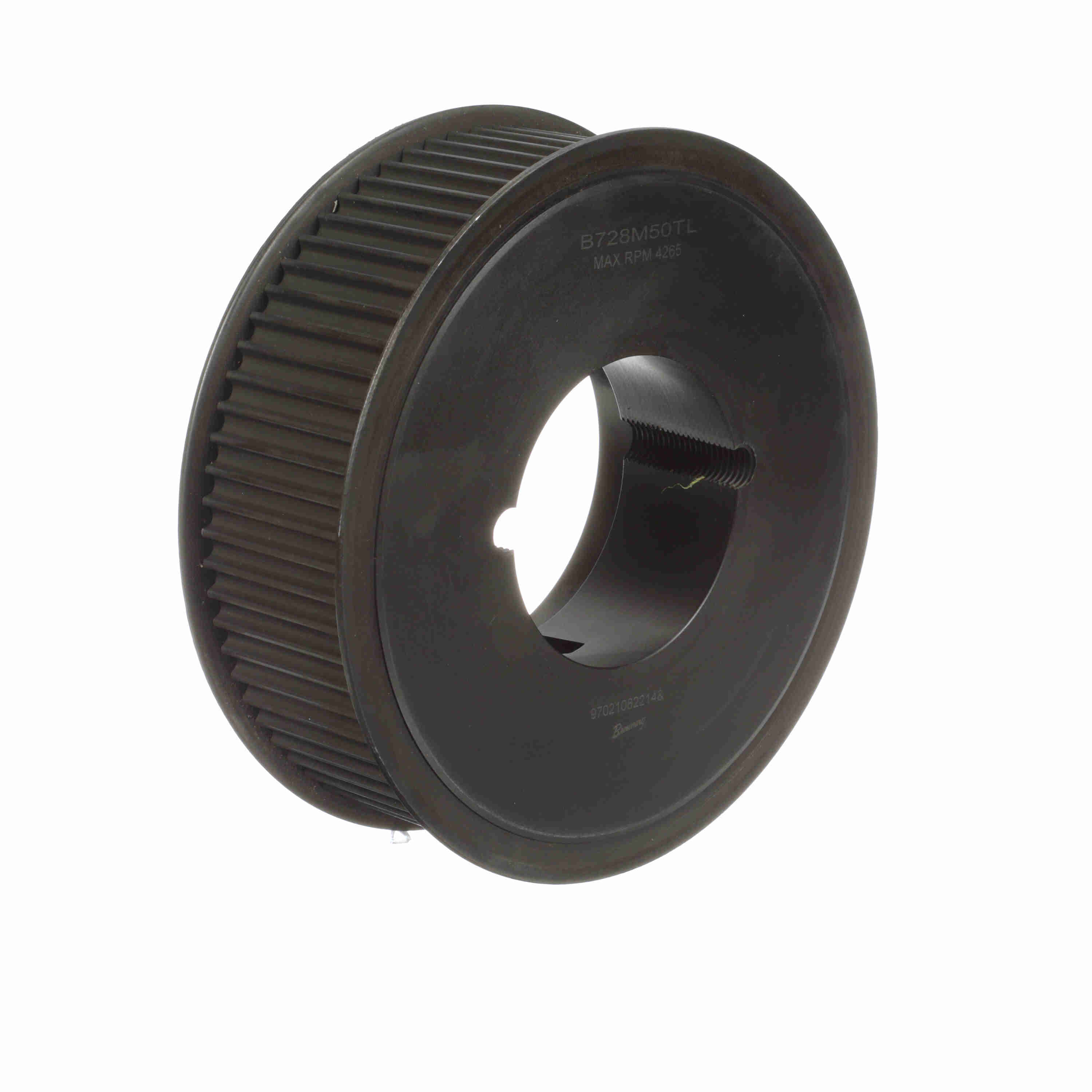

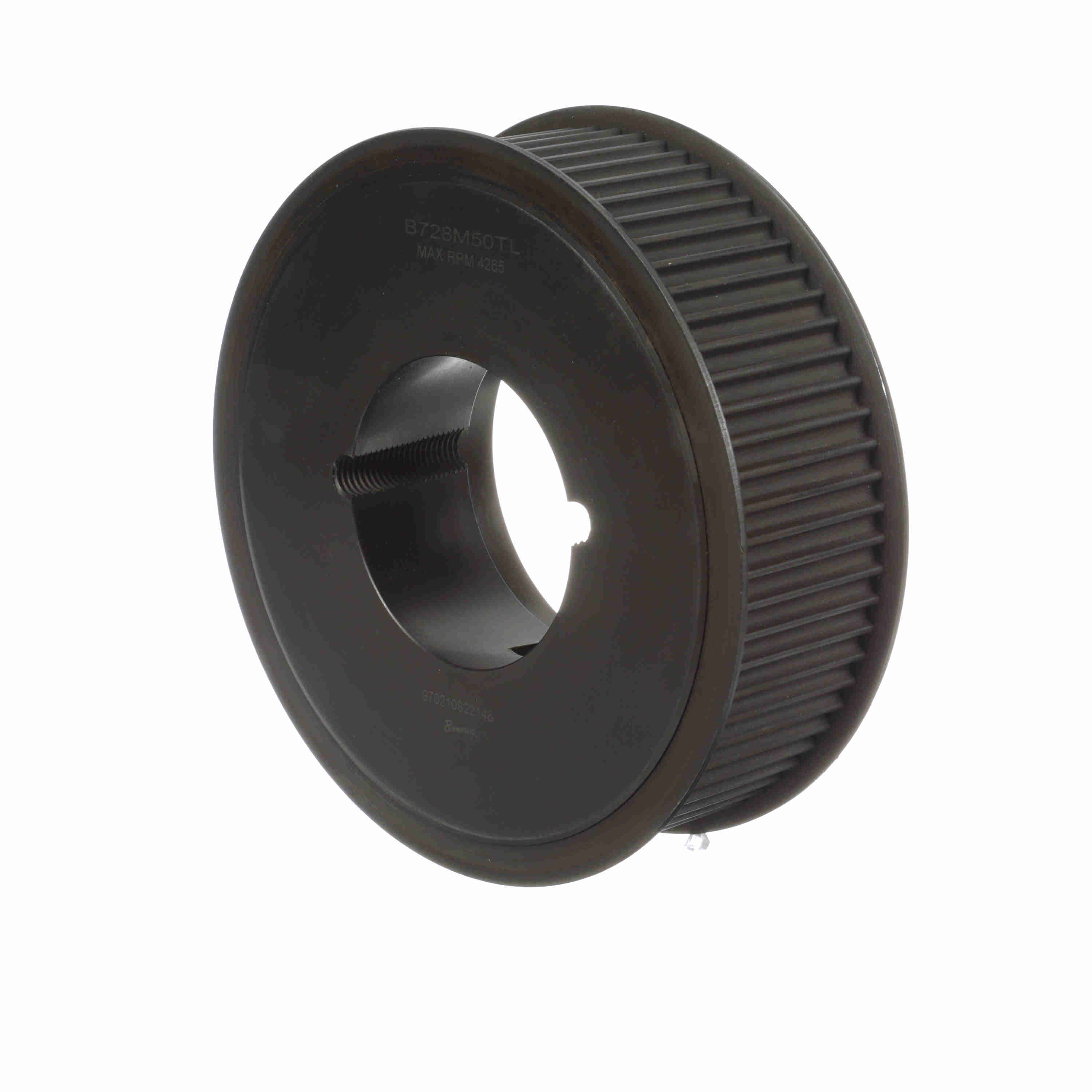

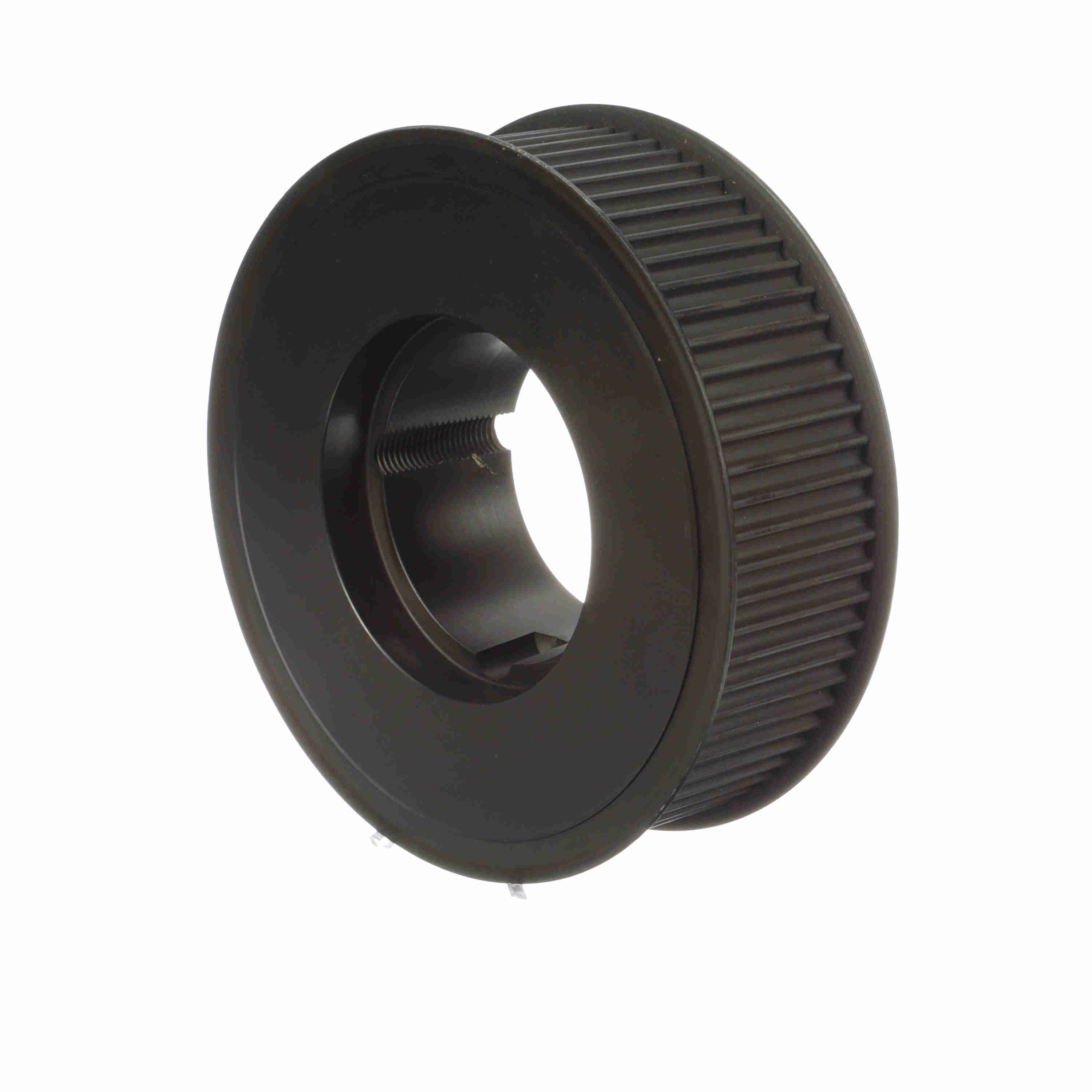

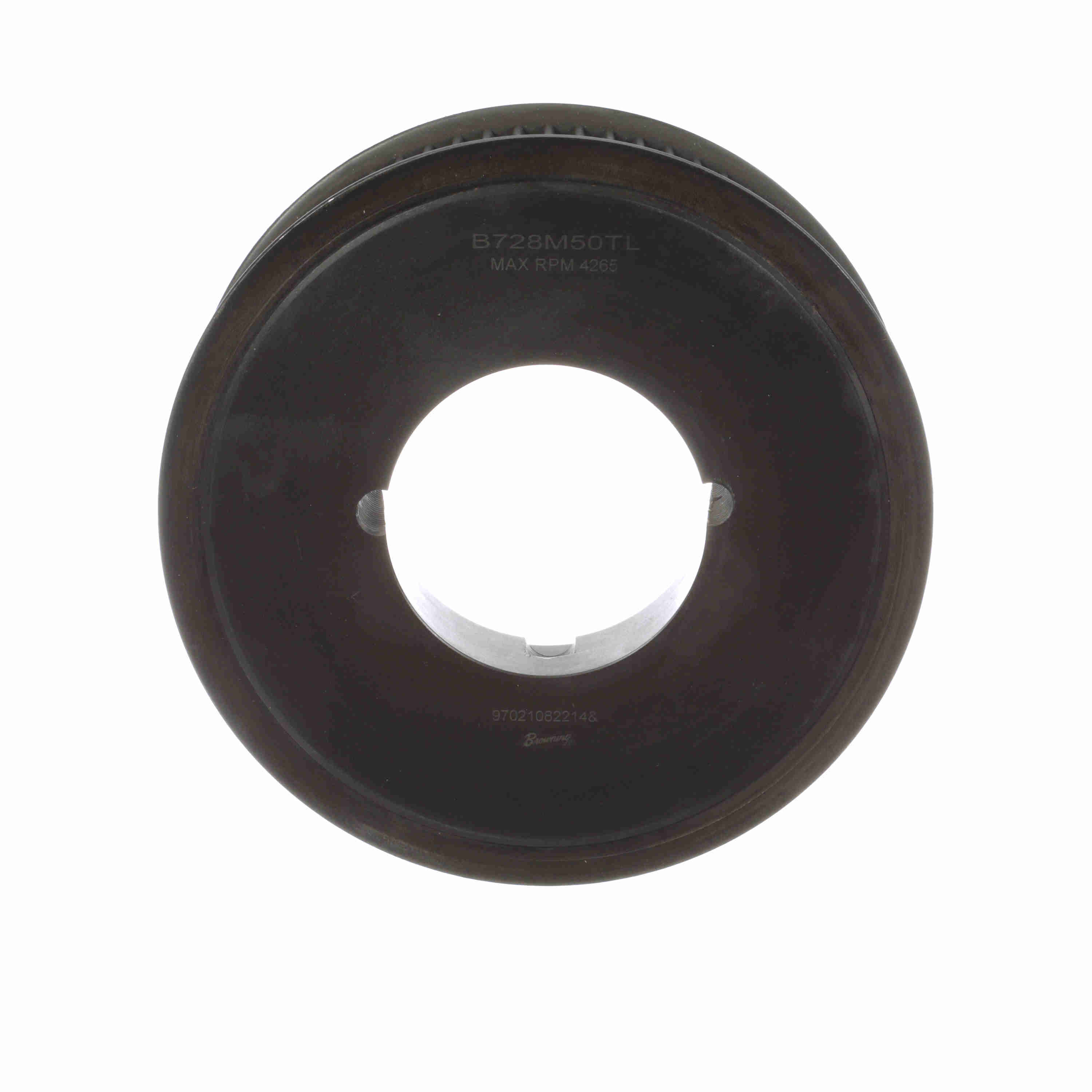

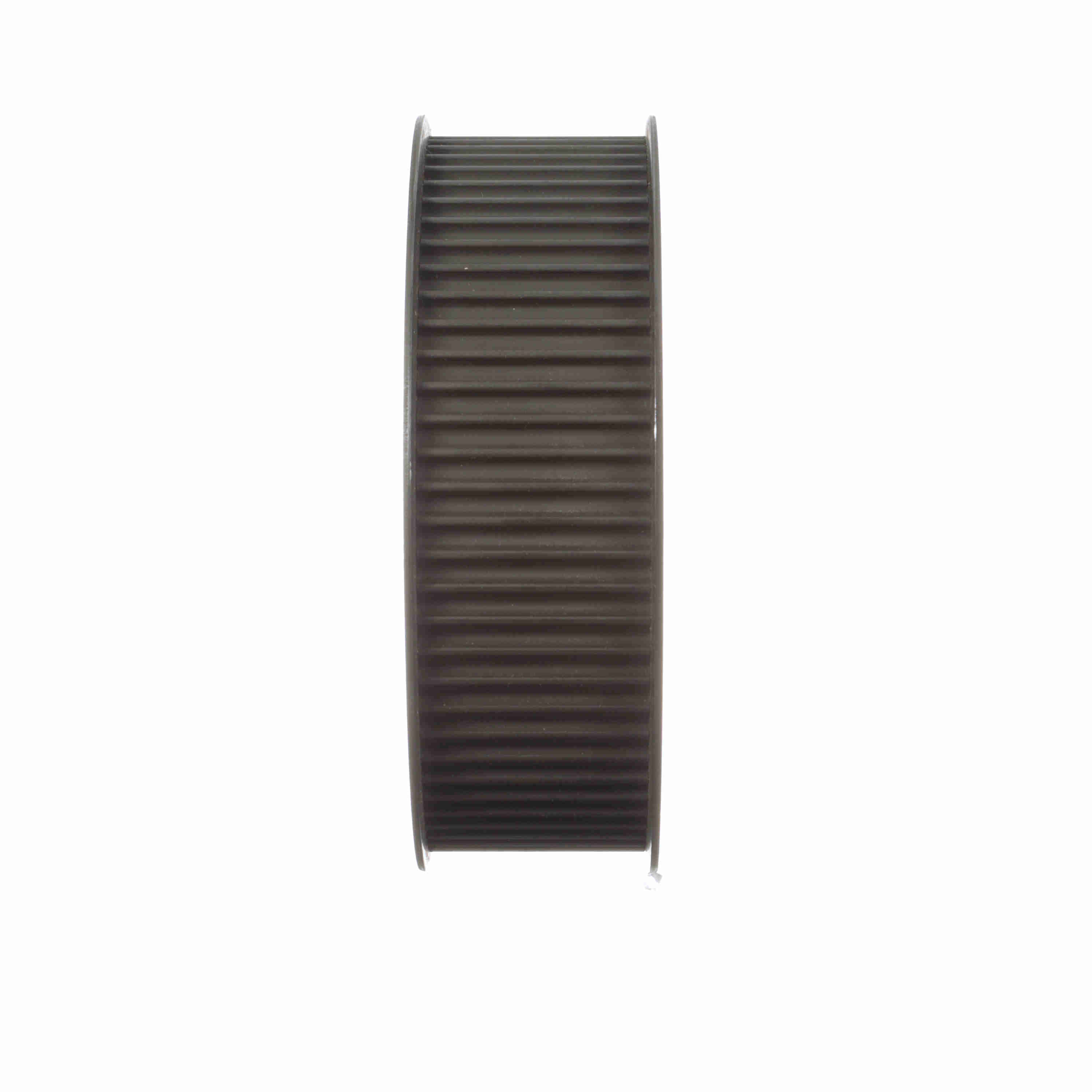

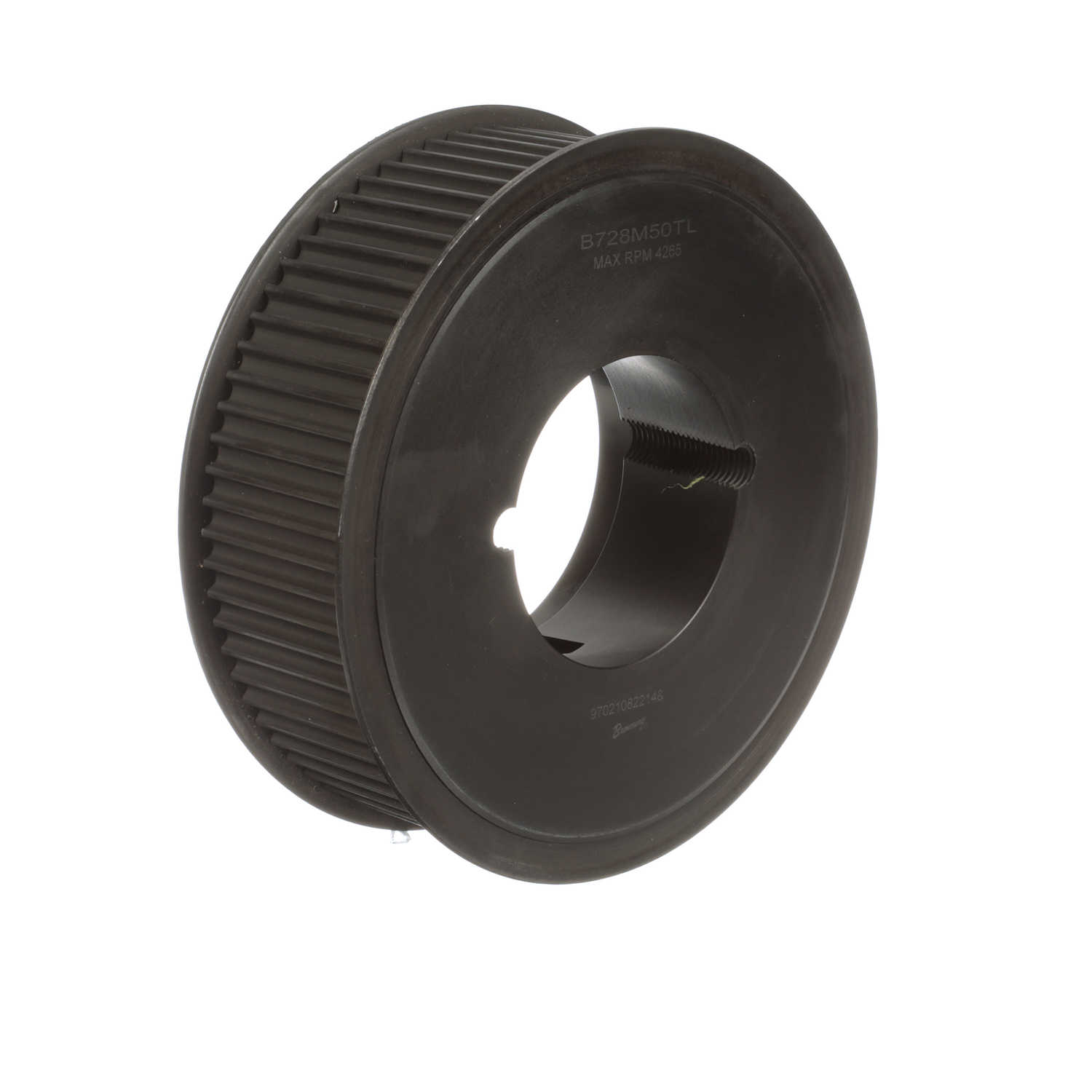

Browning Steel Bushed Bore HPT Sprocket - B728M50TL

Part #:2763217

Catalog #:B728M50TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	192.405 mm	Product Type:	HPT Sprocket
Number of teeth:	72	Bushing:	2517
Width (mm):	50 mm	Bushing Type:	Taper Bore
Bore Type:	Bushed	Bore (Max) (mm):	63.5 mm
Belt Section:	8M	Material:	Steel
Pitch Diameter (mm):	183.3372 mm	Bore (Min) (mm):	12.7 mm
Outside Diameter (mm):	181.9656 mm

General Specifications

UPC:	662460610153	Weight:	16.49 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
