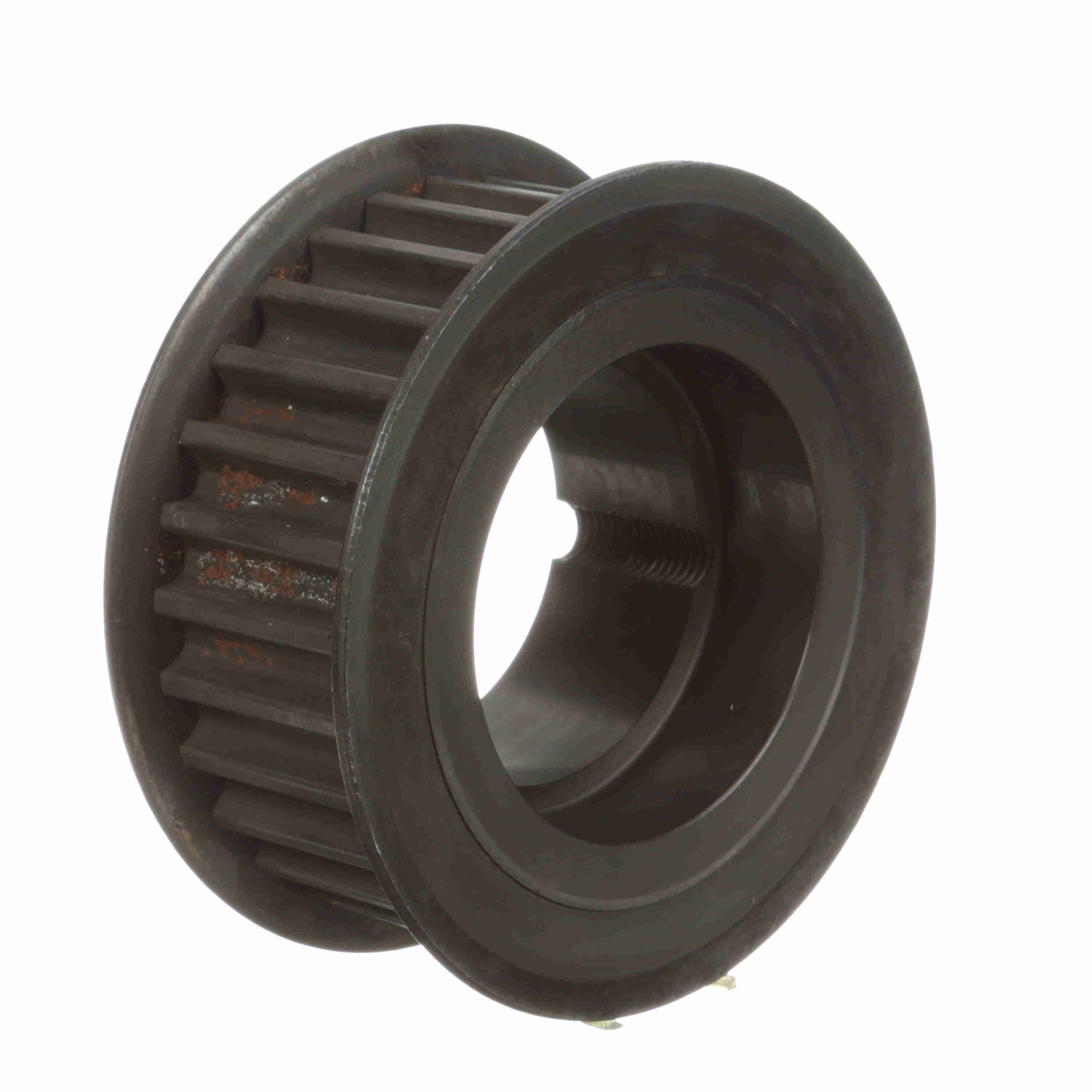

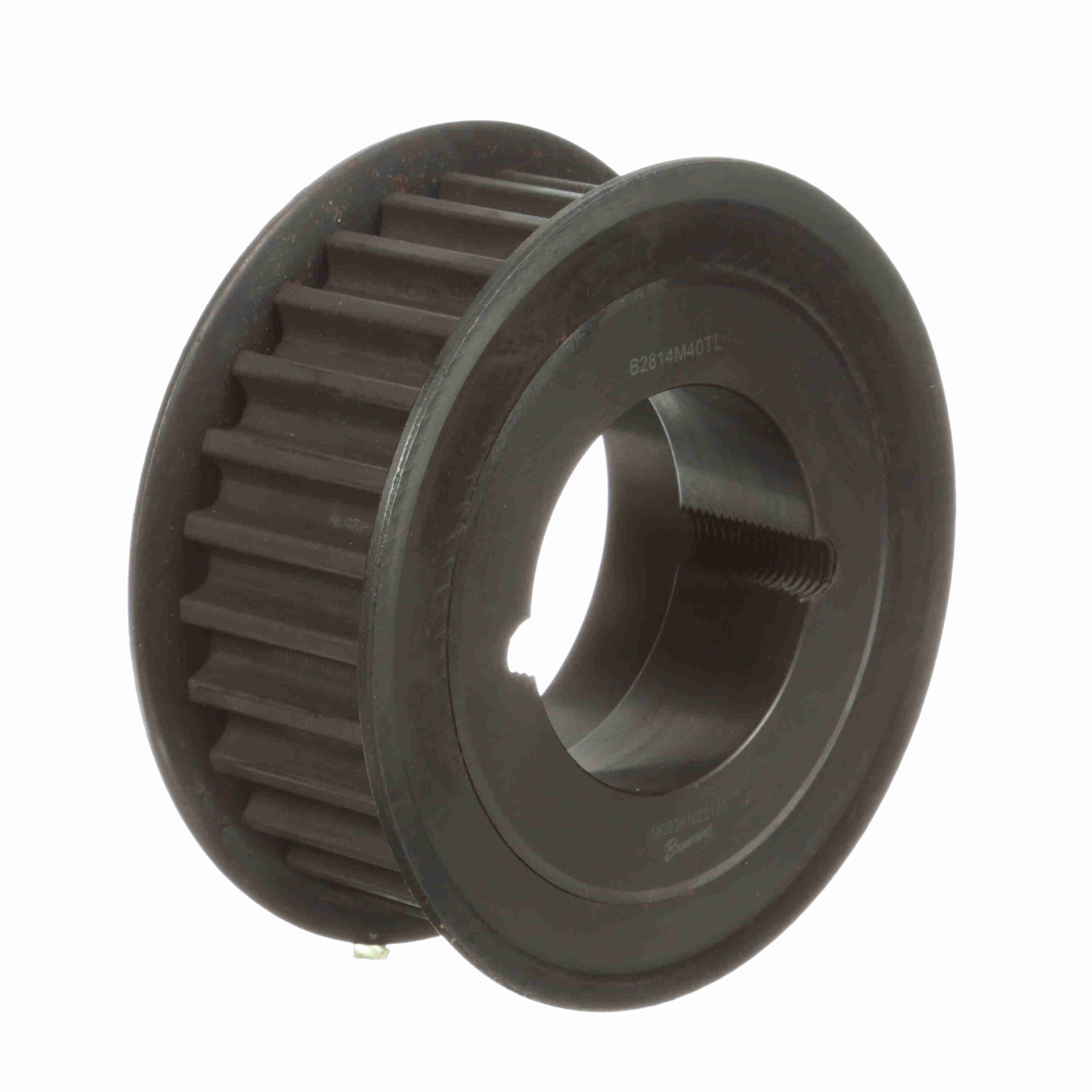

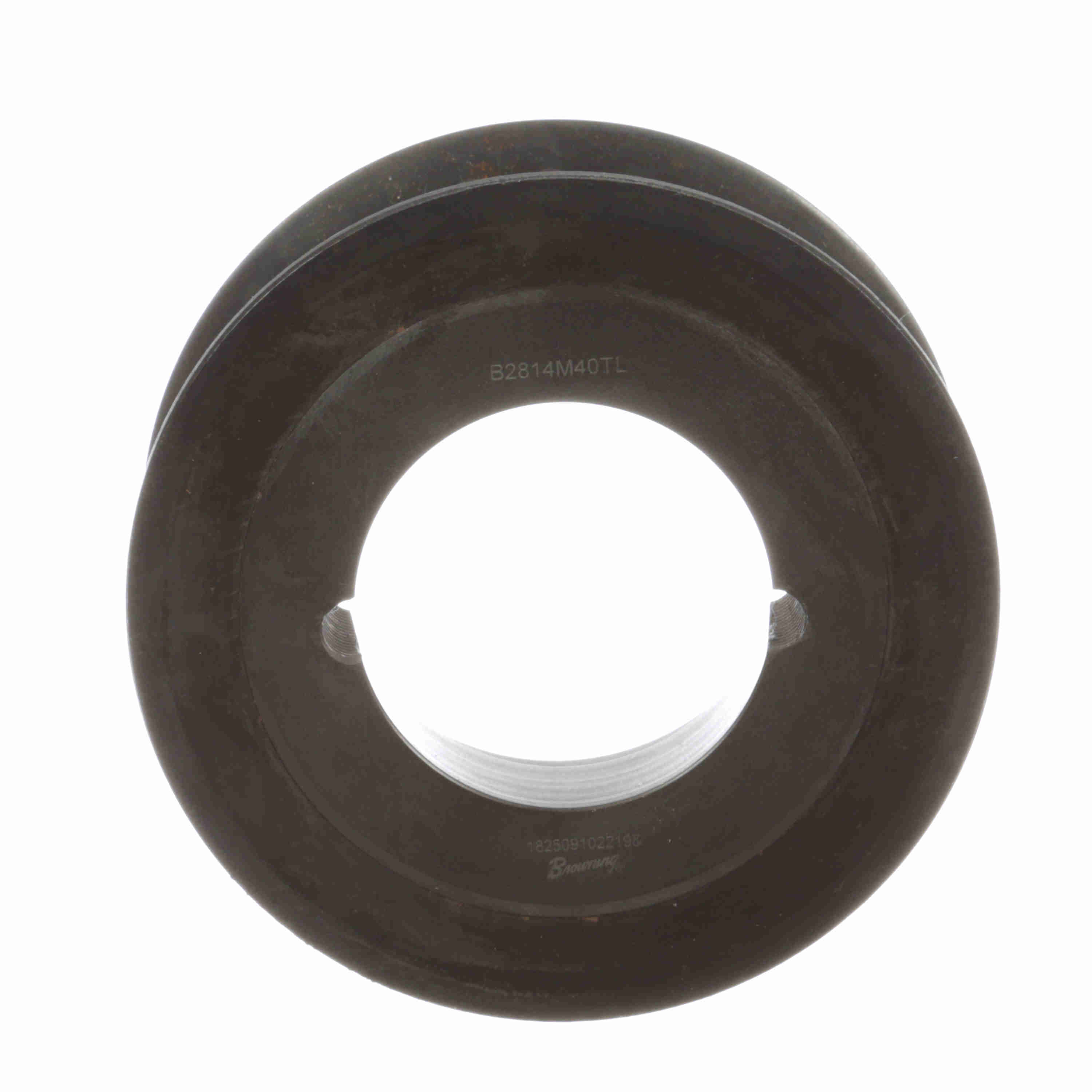

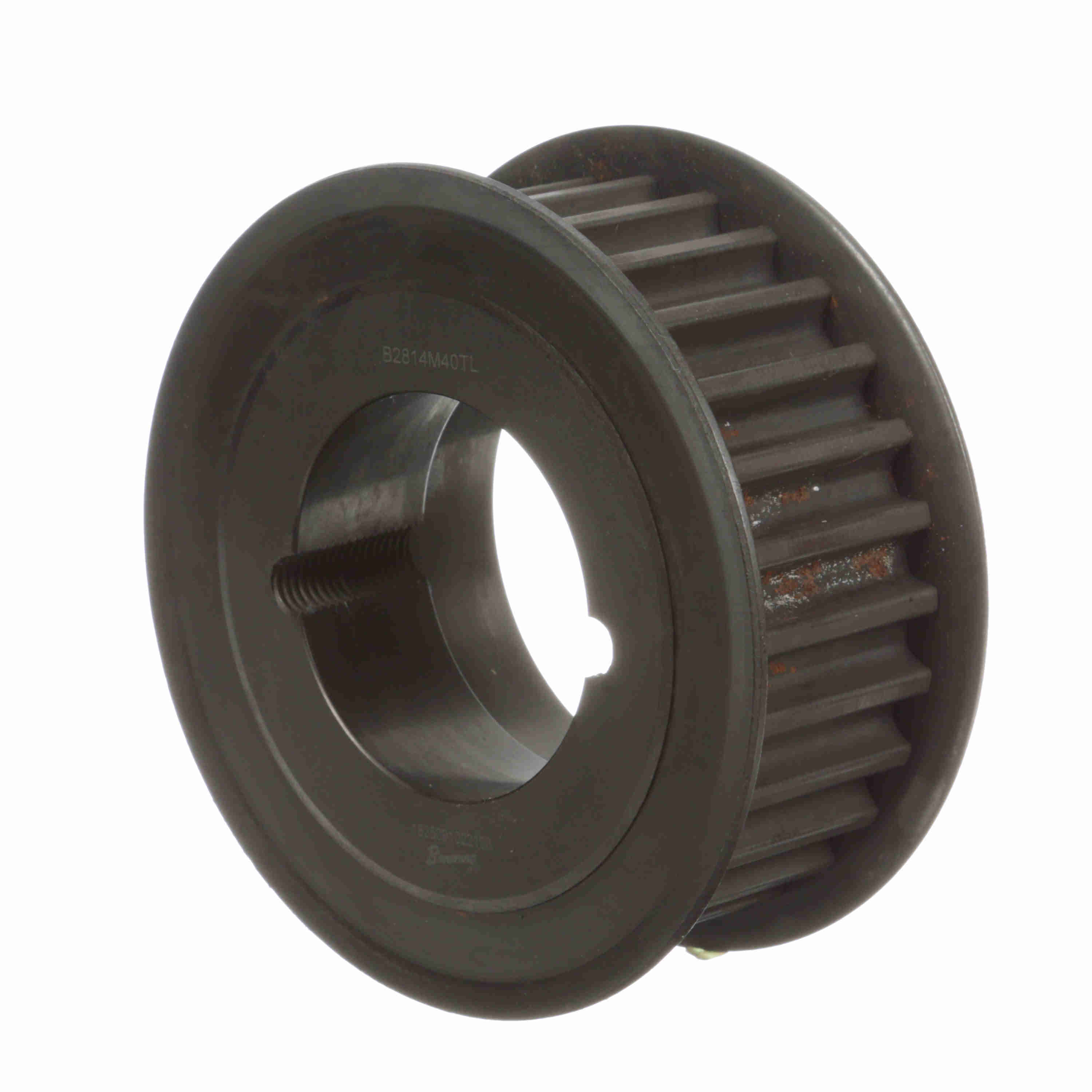

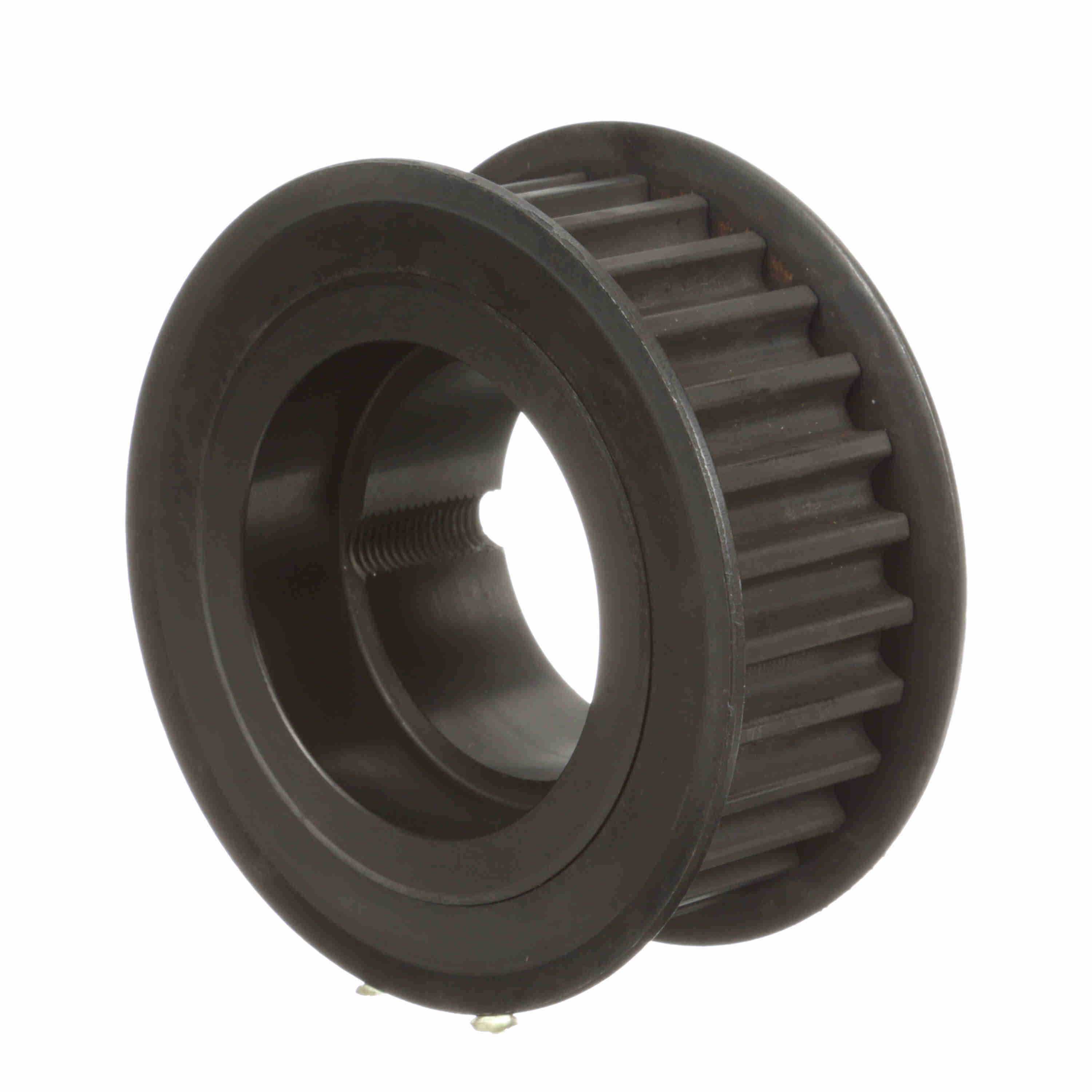

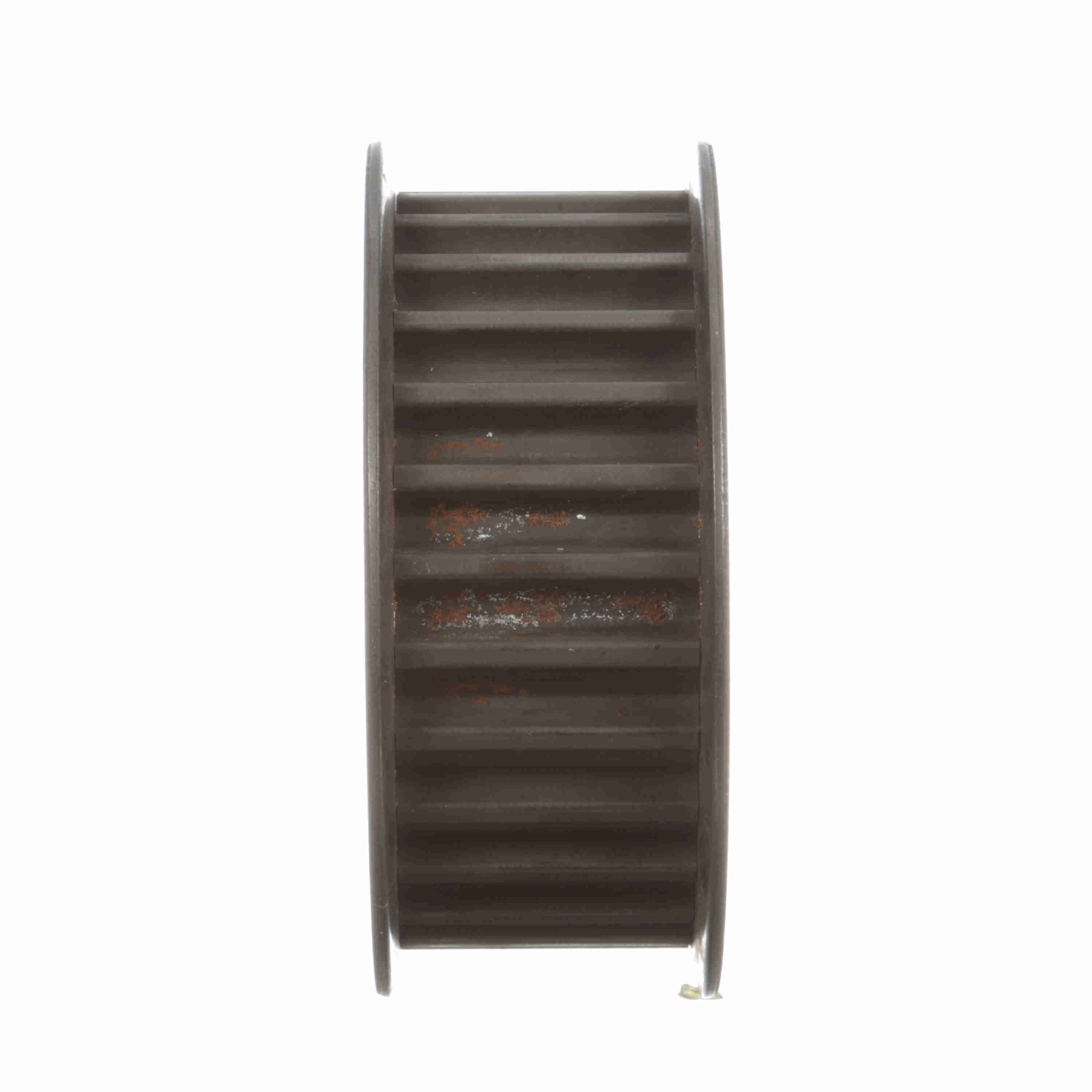

Browning Steel Bushed Bore HPT Sprocket - B2814M40TL

Part #:2763415

Catalog #:B2814M40TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	2012	Product Type:	HPT Sprocket
Flange (mm):	141.2748 mm	Number of teeth:	28
Width (mm):	40 mm	Bushing Type:	Taper Bore
Bore Type:	Bushed	Bore (Max) (mm):	50.8 mm
Outside Diameter (mm):	121.9708 mm	Belt Section:	14M
Pitch Diameter (mm):	124.7648 mm	Material:	Steel
Bore (Min) (mm):	12.7 mm

General Specifications

UPC:	662460610351	Weight:	6.03 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
