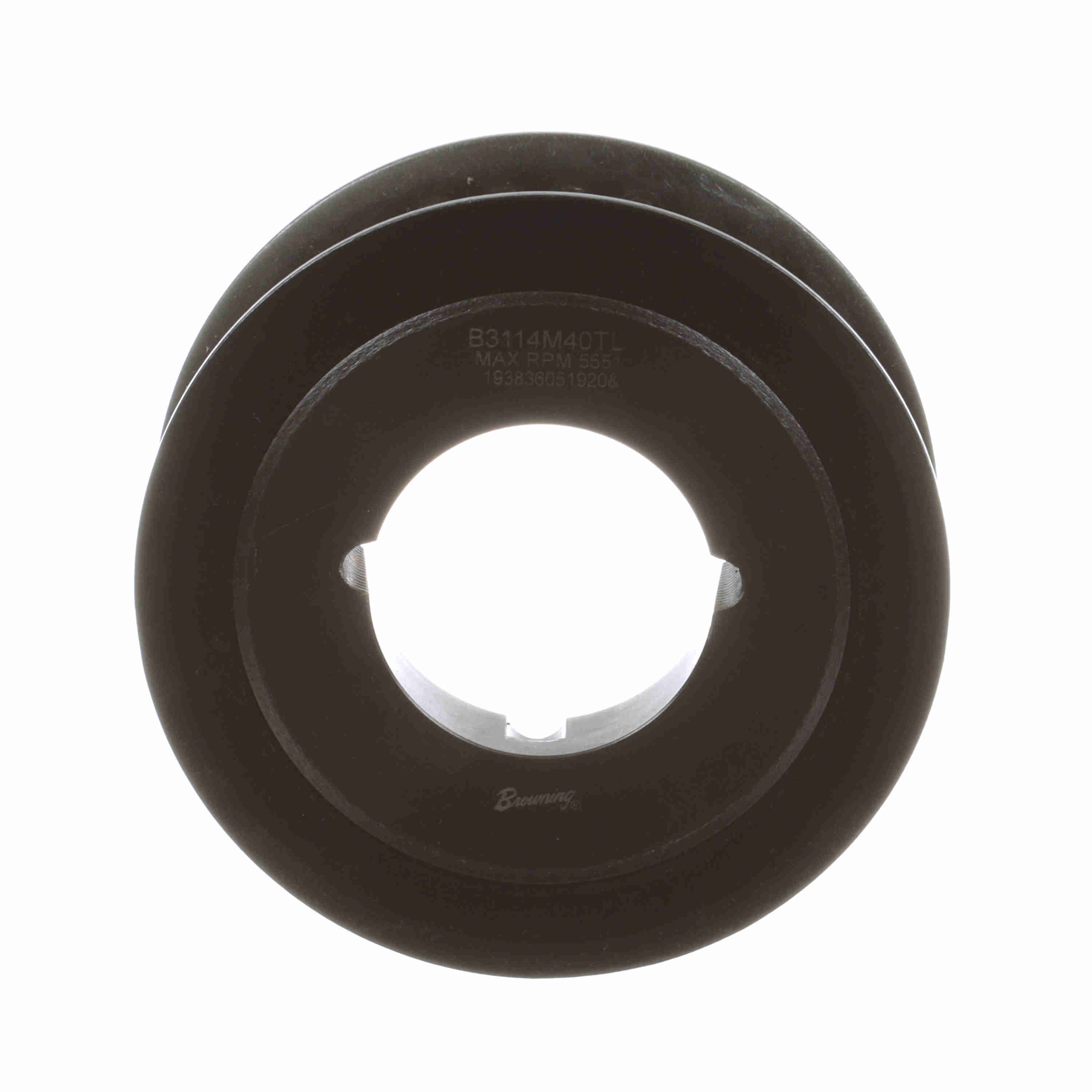

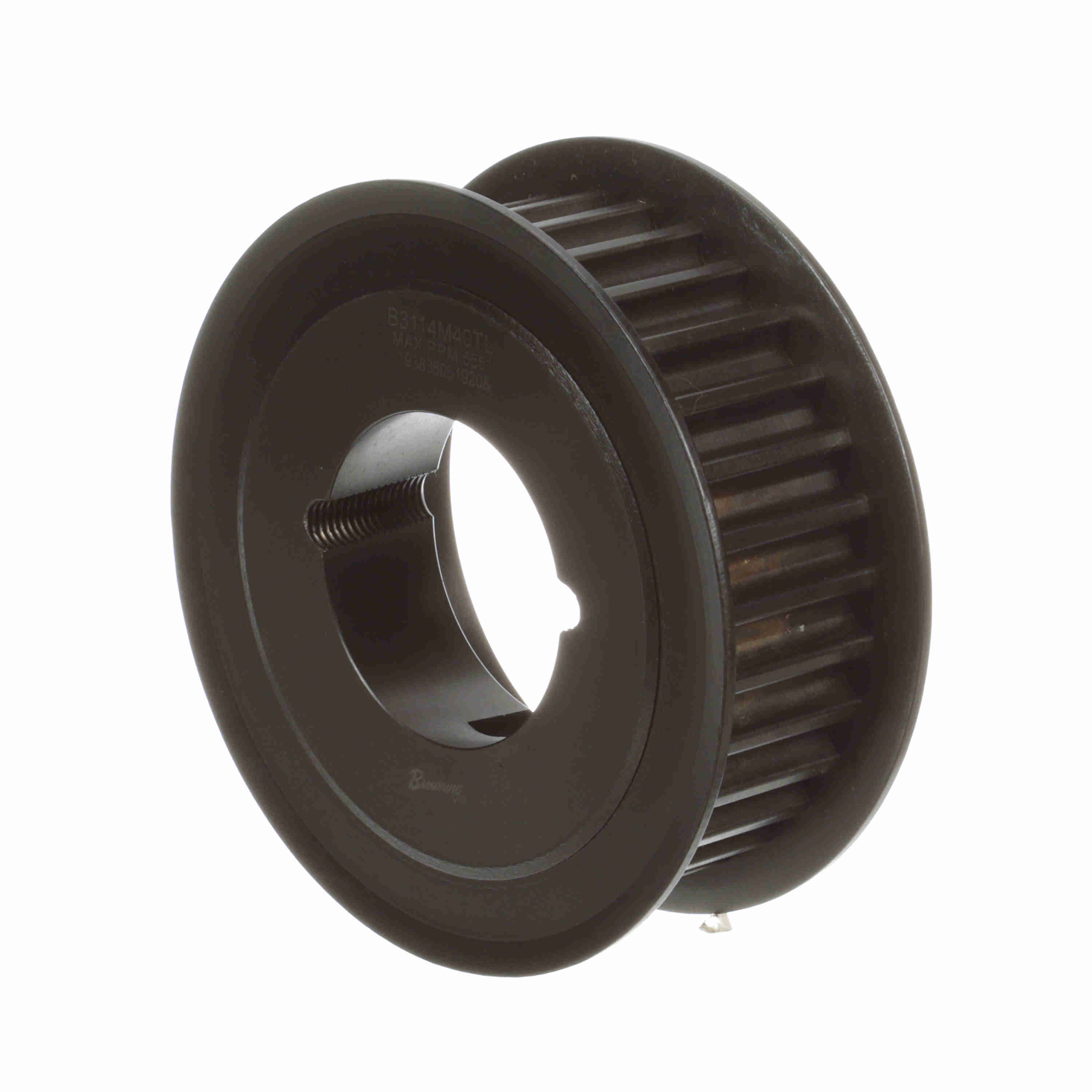

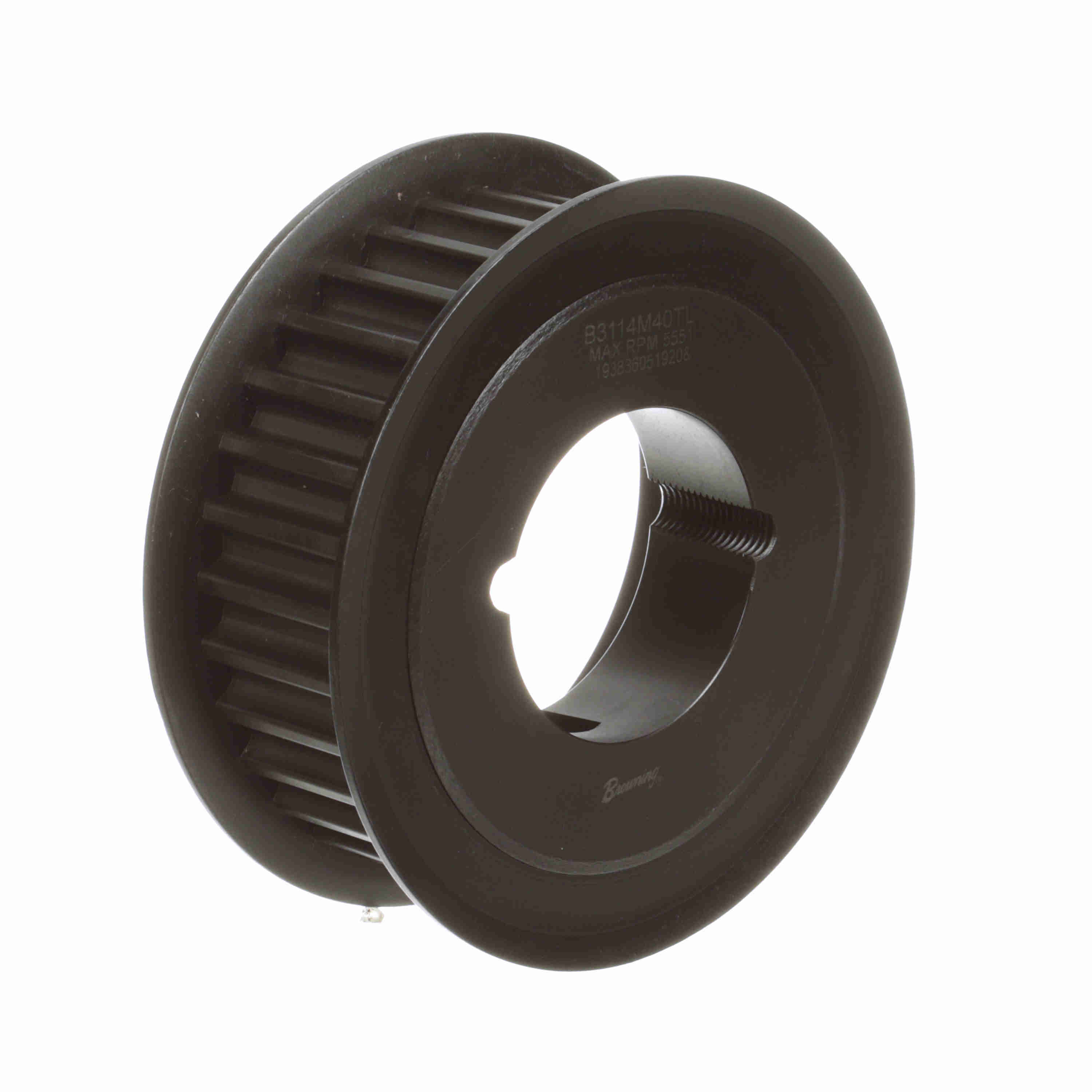

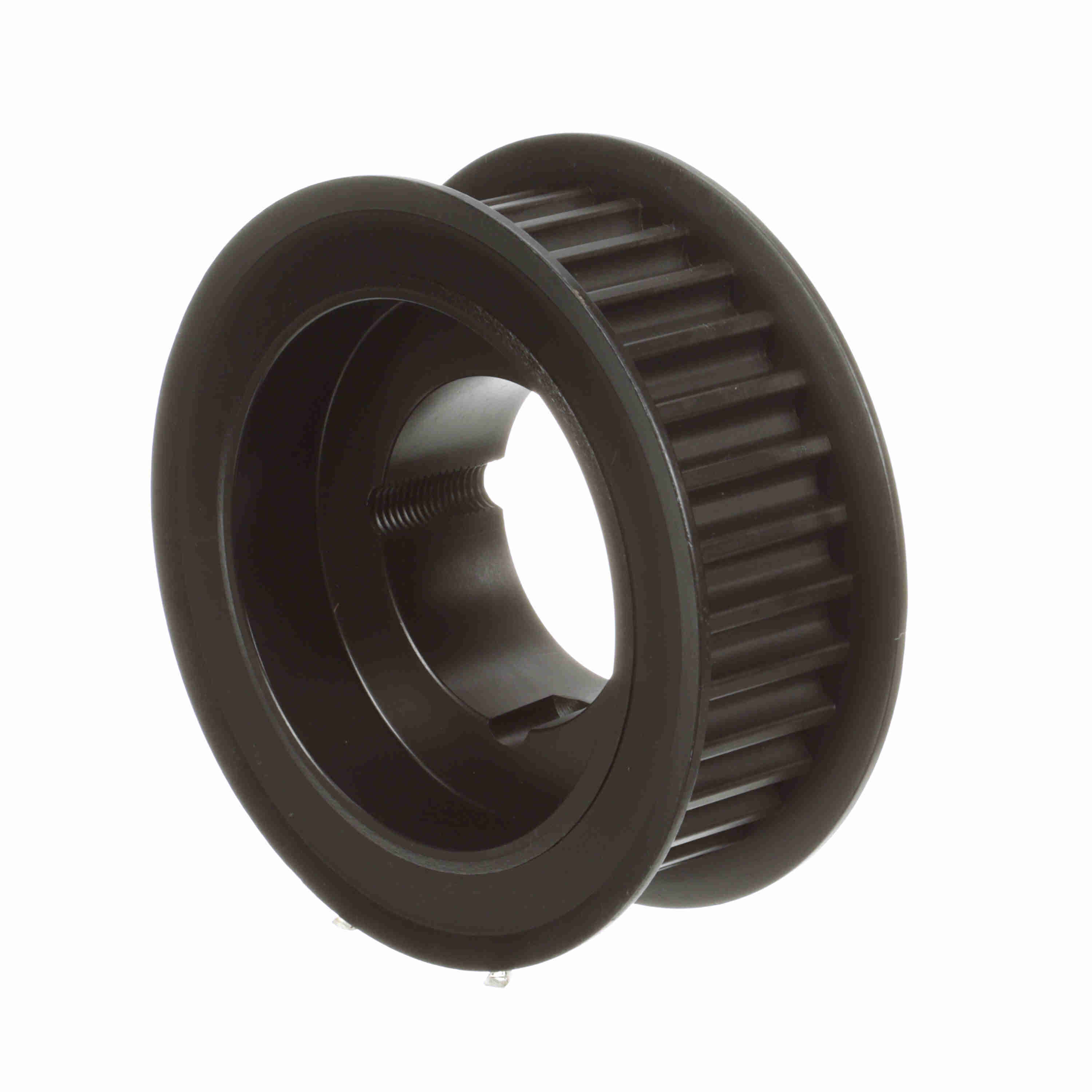

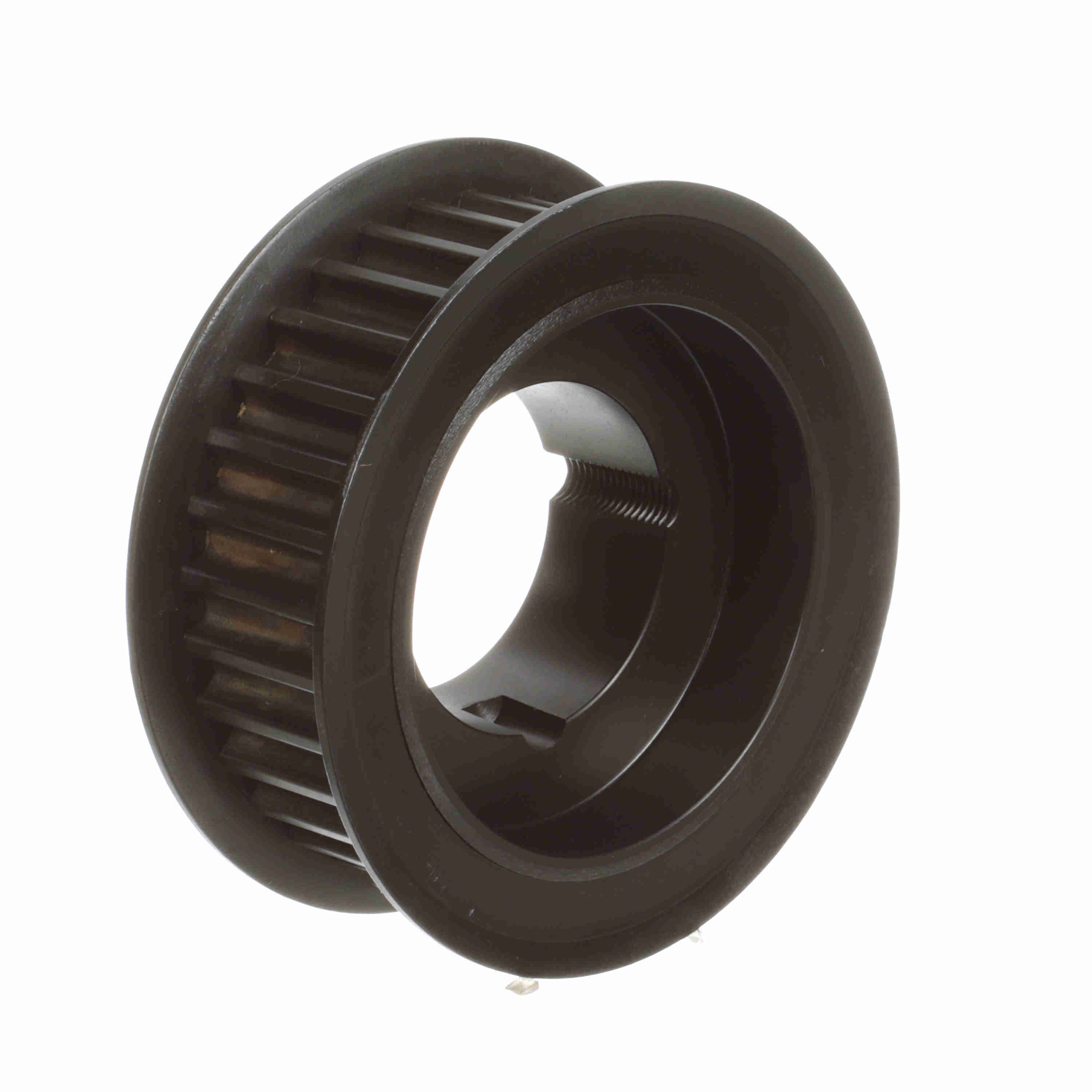

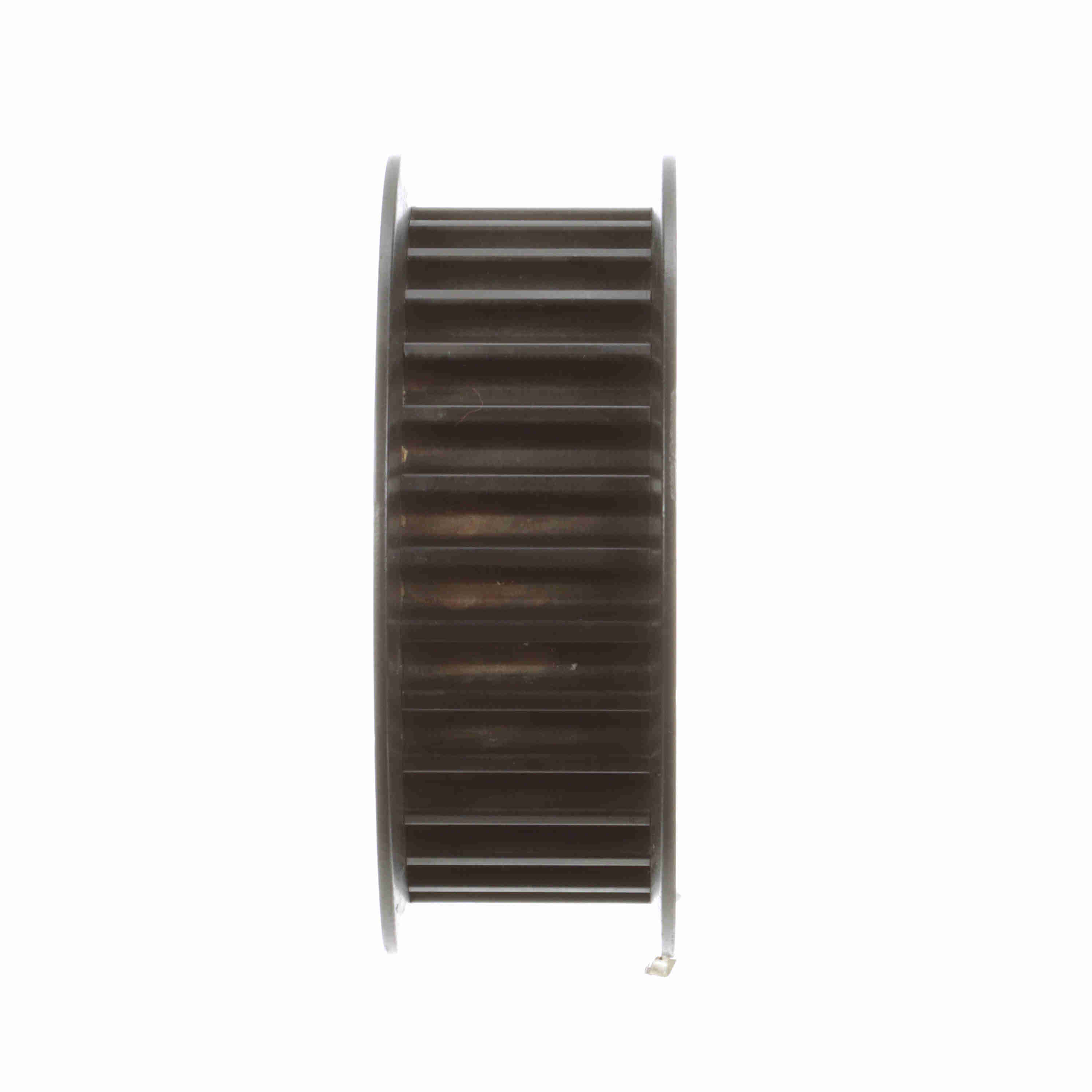

Browning Steel Bushed Bore HPT Sprocket - B3114M40TL

Part #:2763449

Catalog #:B3114M40TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Number of teeth:	31	Width (mm):	40 mm
Flange (mm):	155.5496 mm	Product Type:	HPT Sprocket
Bushing:	2012	Bushing Type:	Taper Bore
Bore Type:	Bushed	Outside Diameter (mm):	135.3566 mm
Bore (Min) (mm):	12.7 mm	Material:	Steel
Belt Section:	14M	Bore (Max) (mm):	50.8 mm
Pitch Diameter (mm):	138.1506 mm

General Specifications

UPC:	662460610399	Weight:	7.50 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
