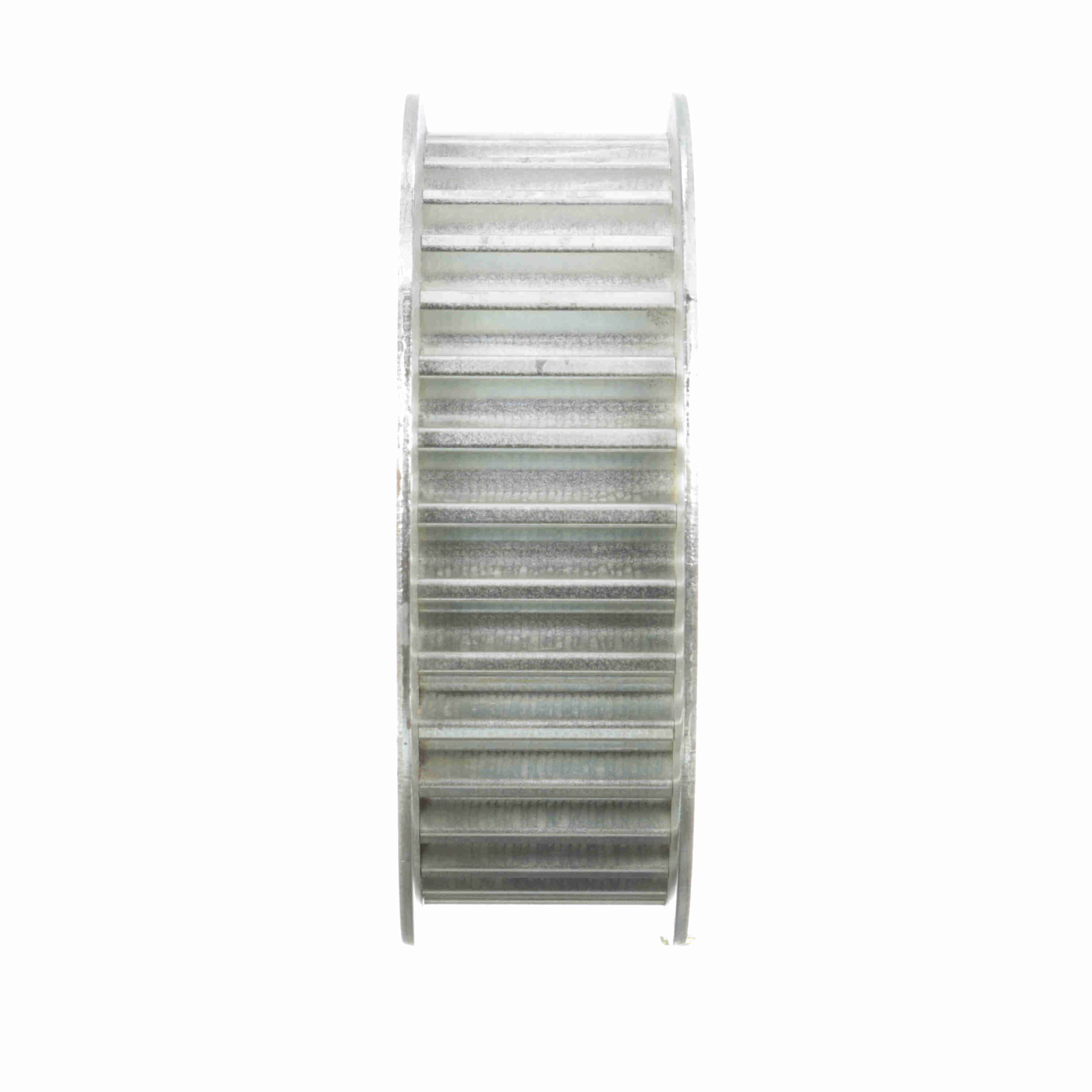

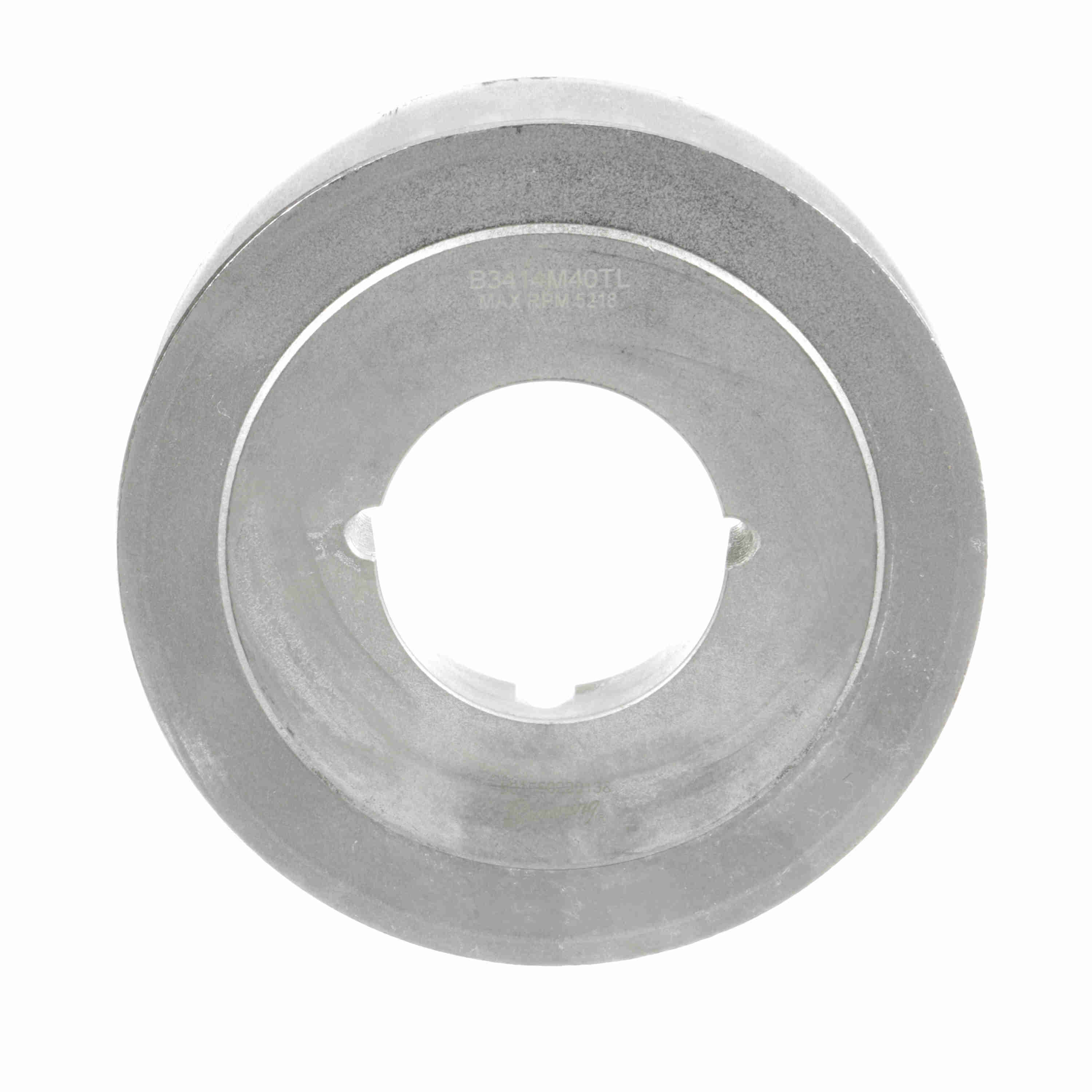

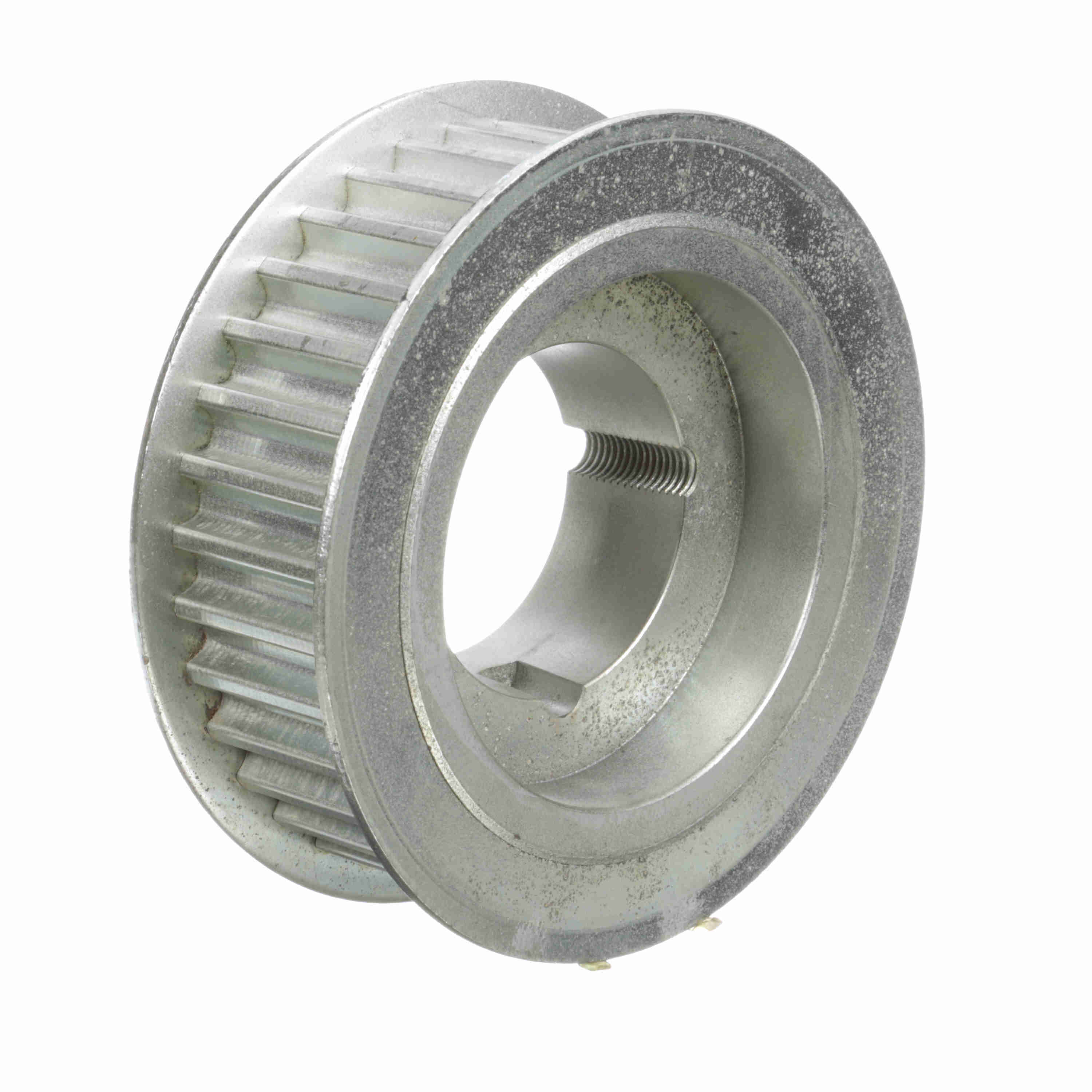

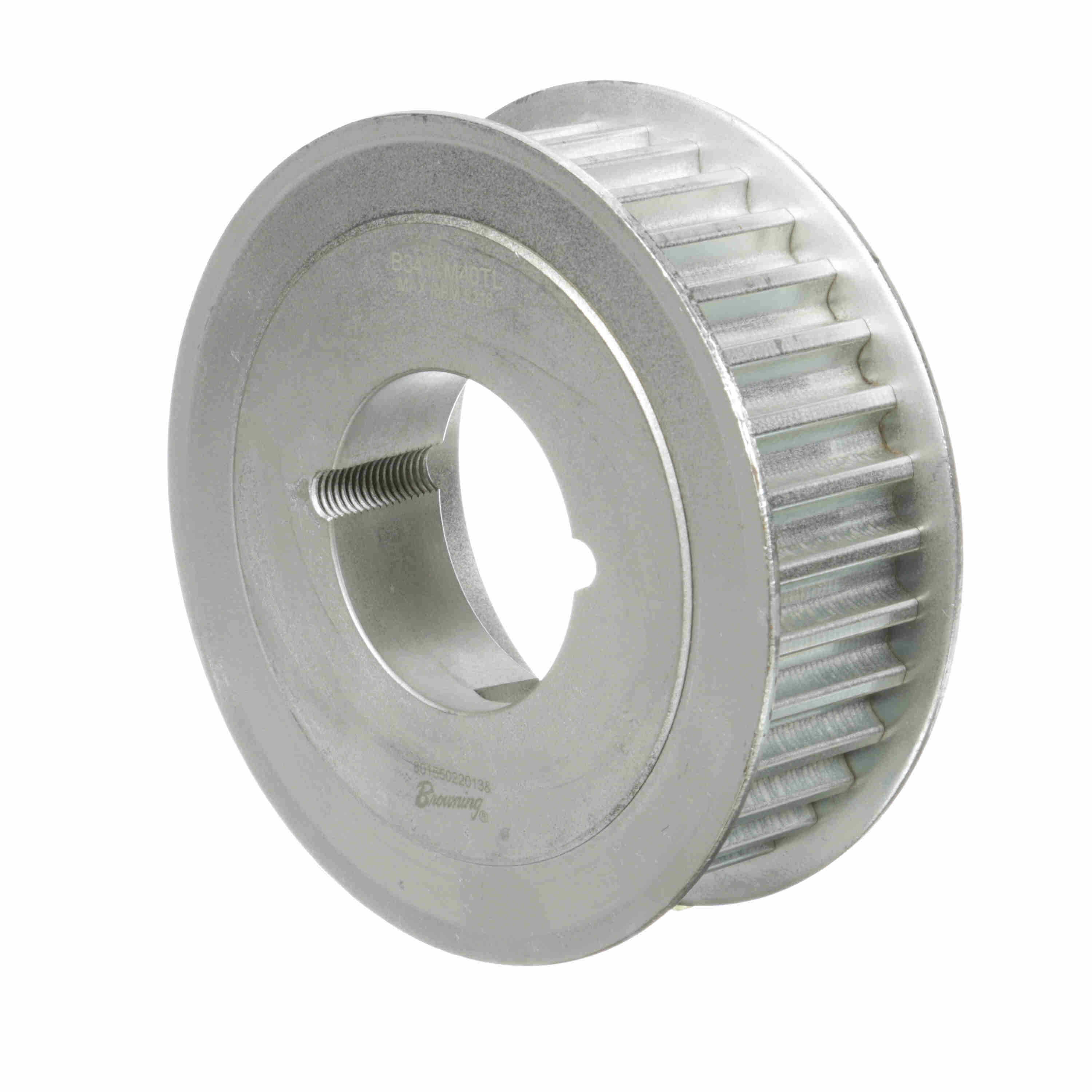

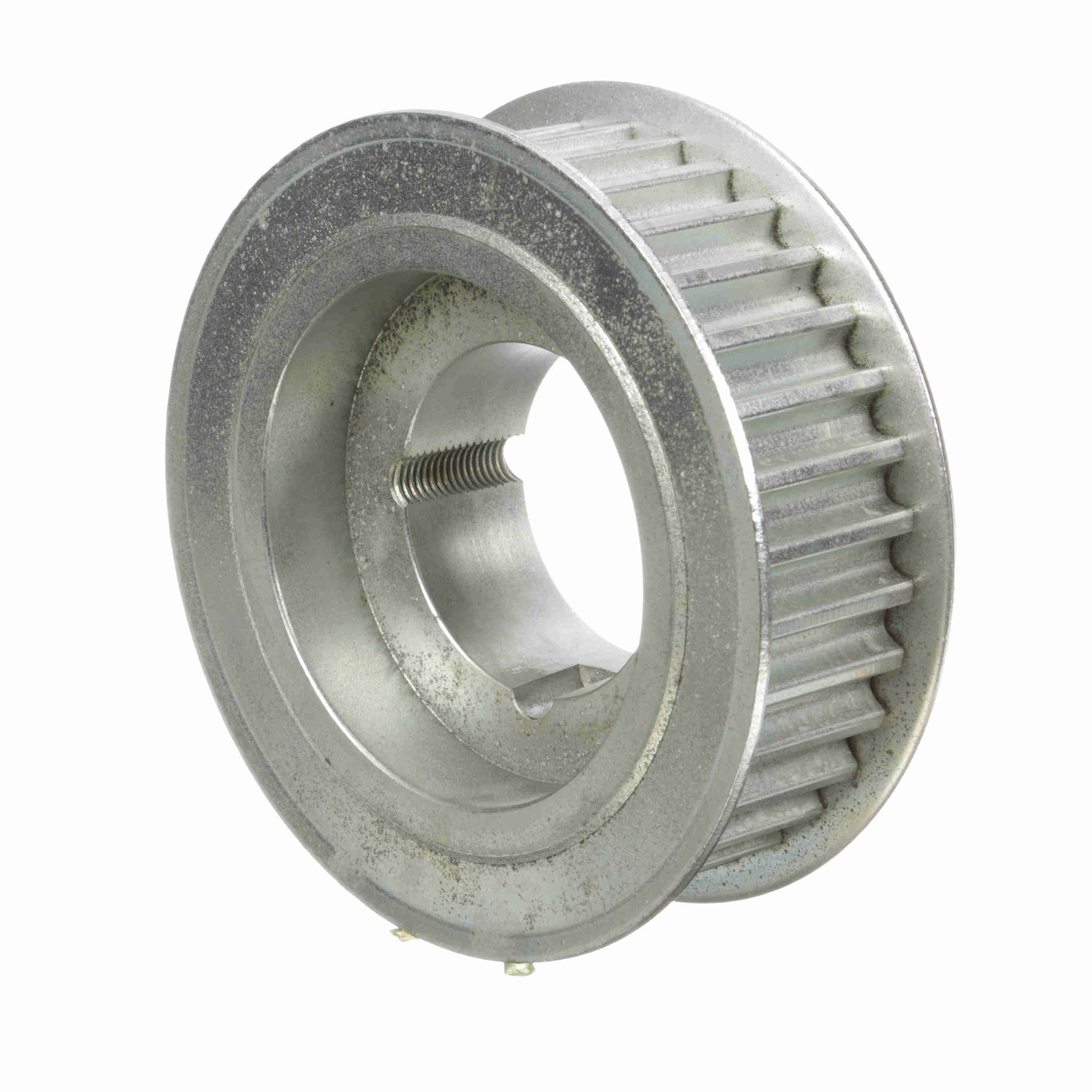

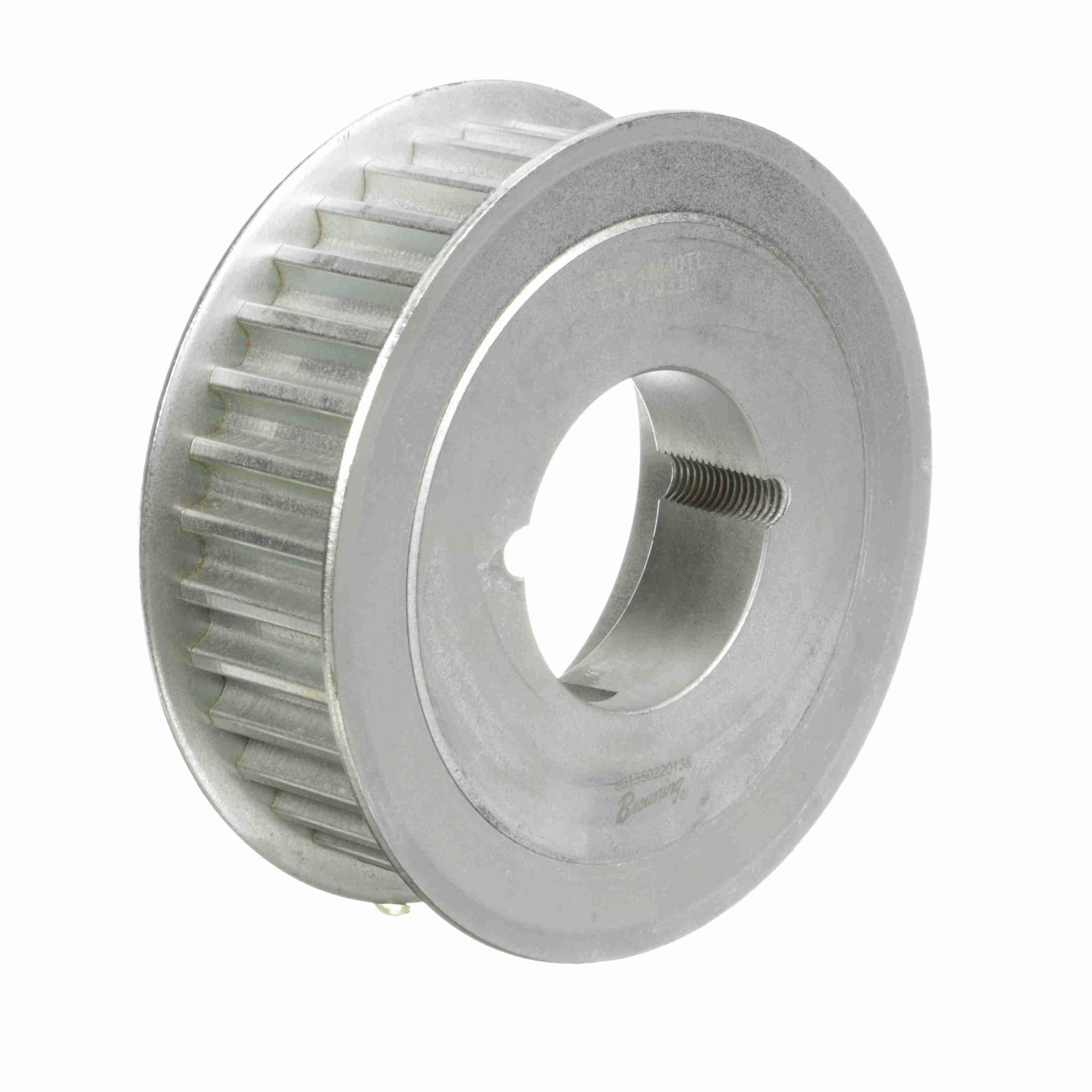

Browning Steel Bushed Bore HPT Sprocket - B3414M40TL

Part #:2763472

Catalog #:B3414M40TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	2012	Flange (mm):	164.211 mm
Width (mm):	40 mm	Product Type:	HPT Sprocket
Number of teeth:	34	Bore Type:	Bushed
Bushing Type:	Taper Bore	Belt Section:	14M
Pitch Diameter (mm):	151.511 mm	Bore (Max) (mm):	50.8 mm
Outside Diameter (mm):	148.717 mm	Bore (Min) (mm):	12.7 mm
Material:	Steel

General Specifications

UPC:	662460610429	Weight:	9.52 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
