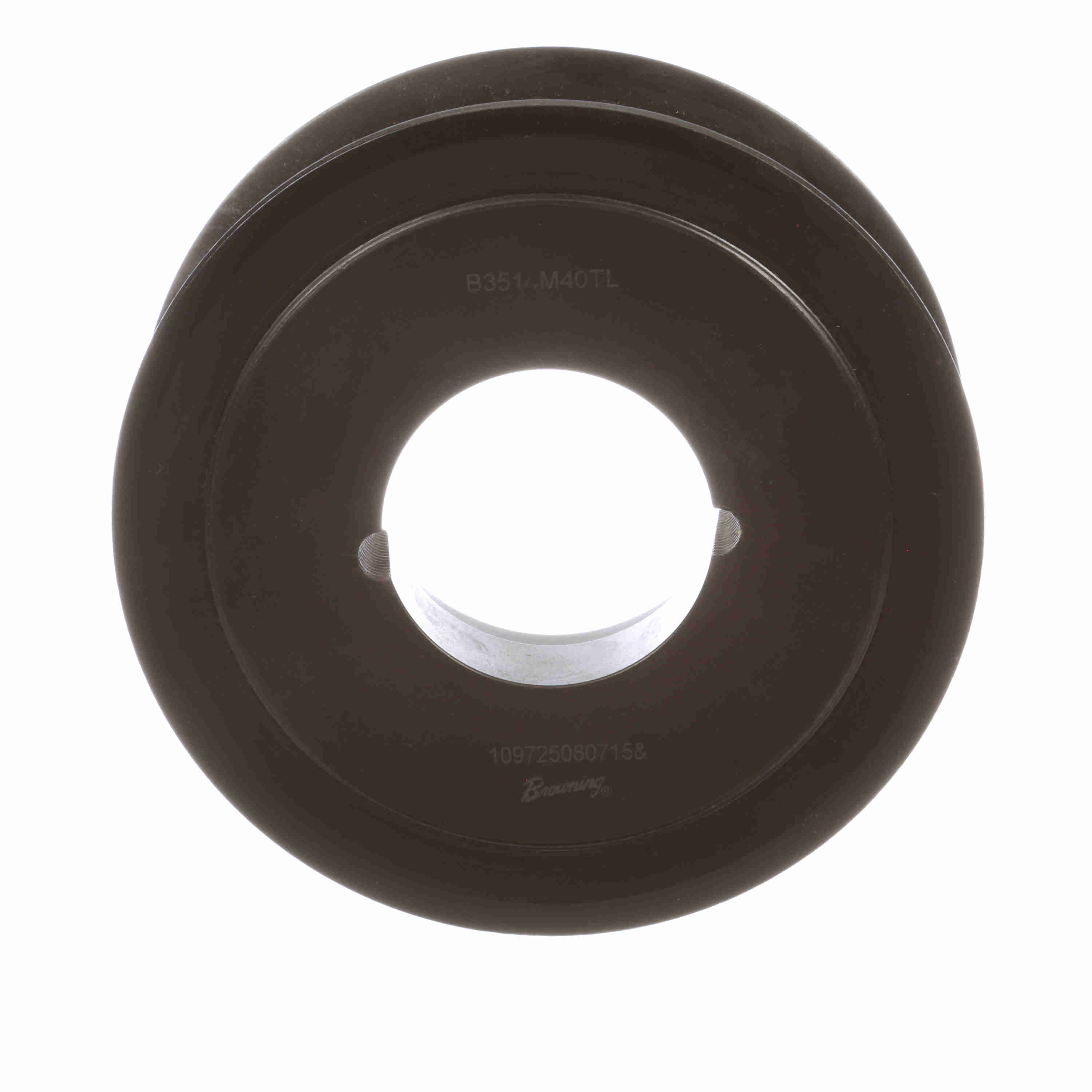

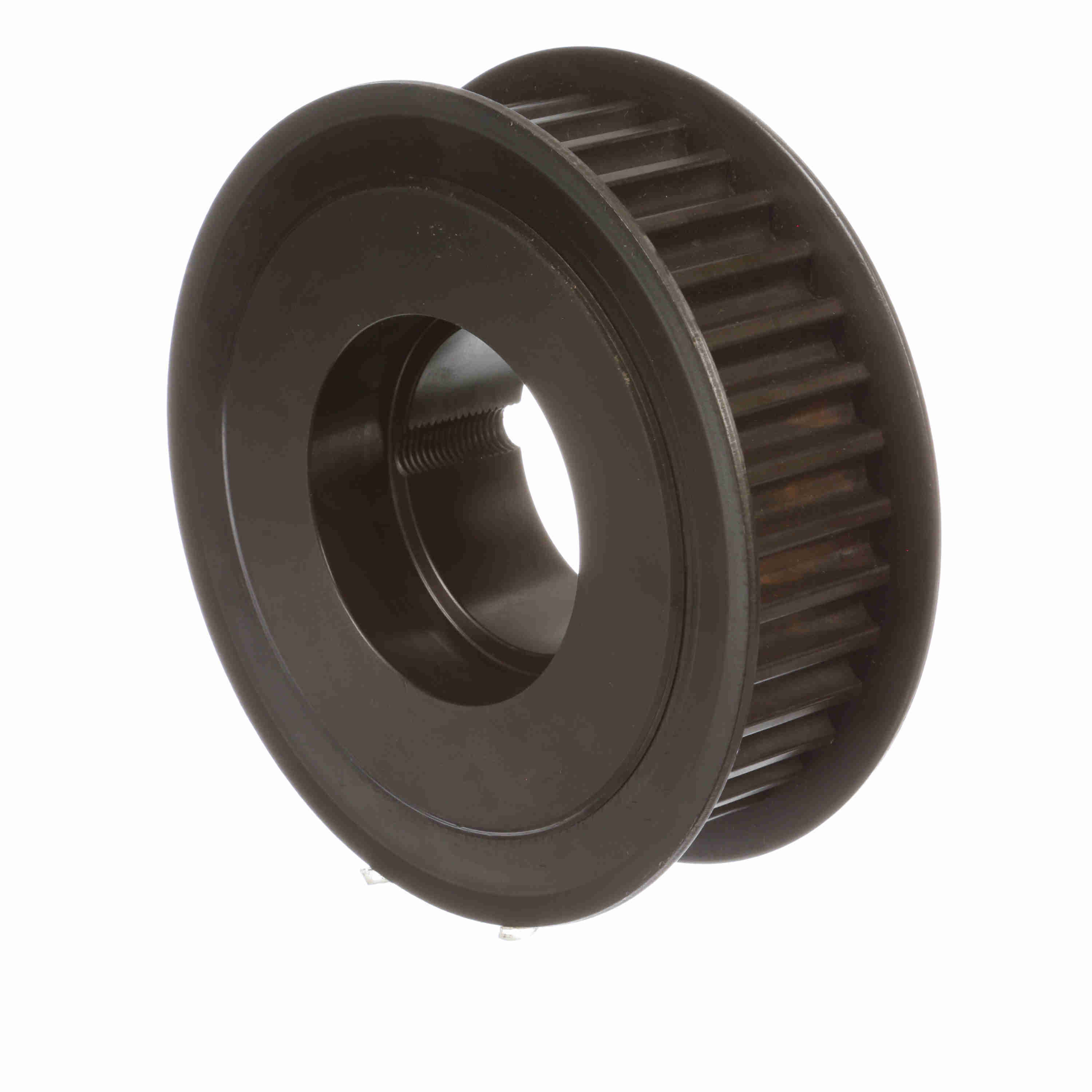

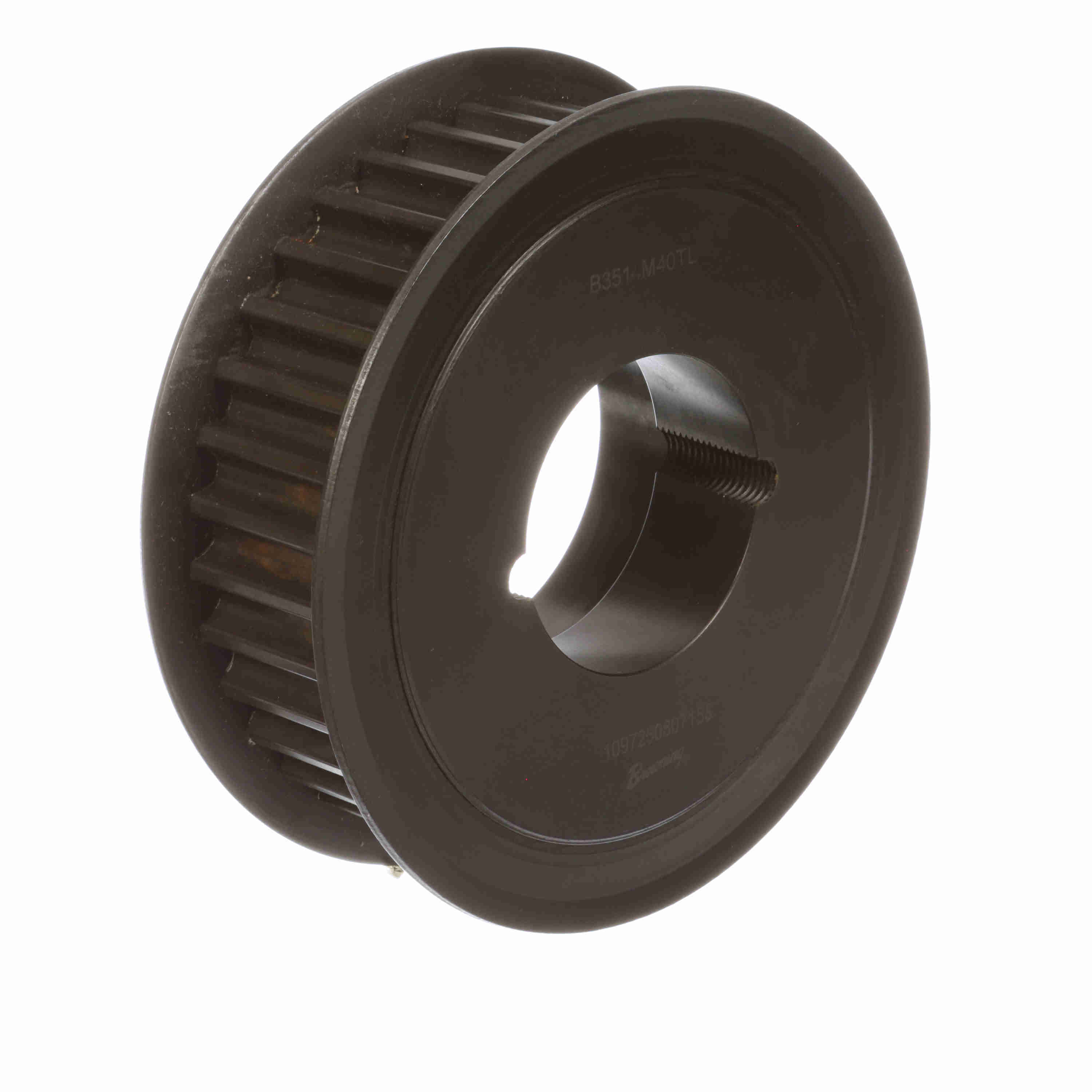

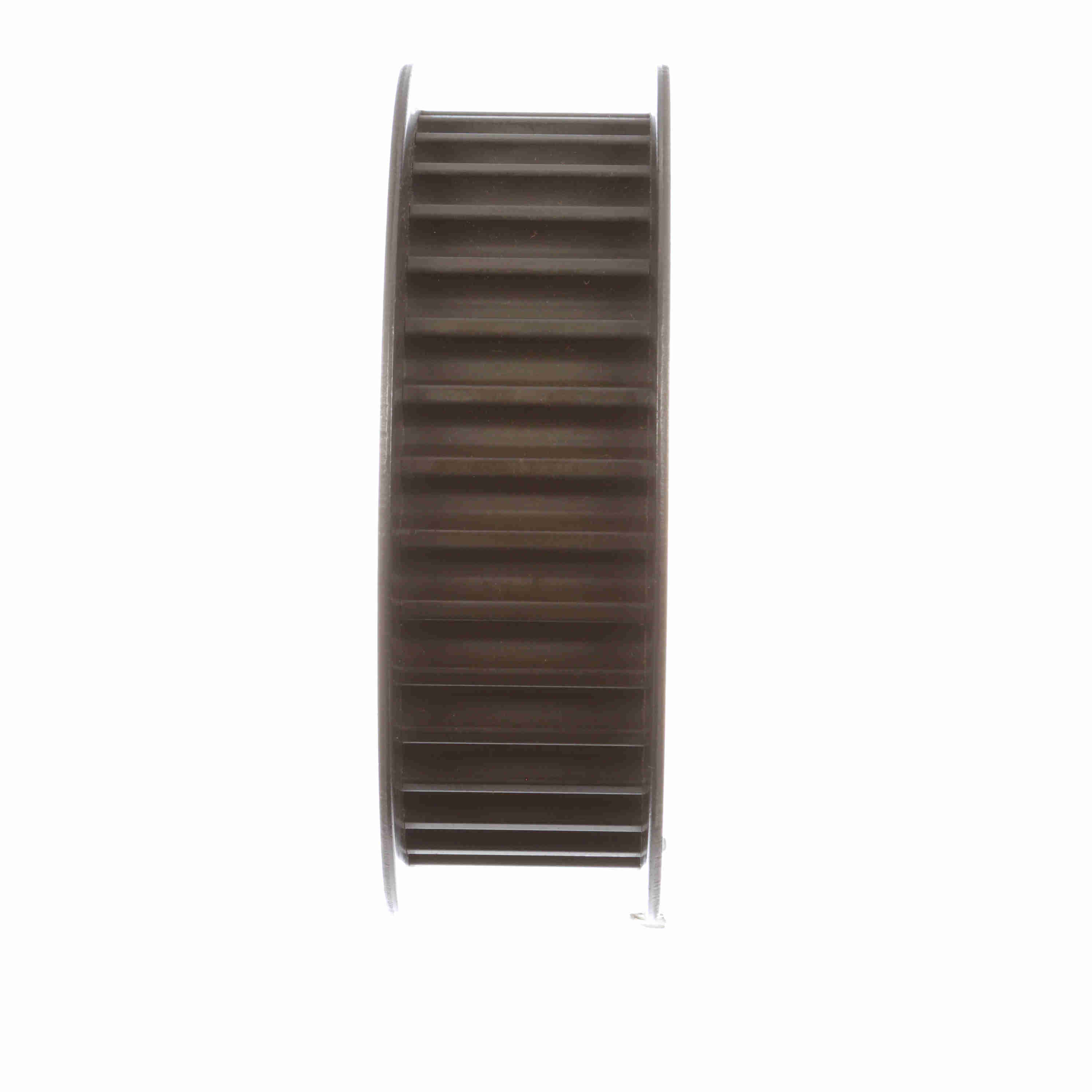

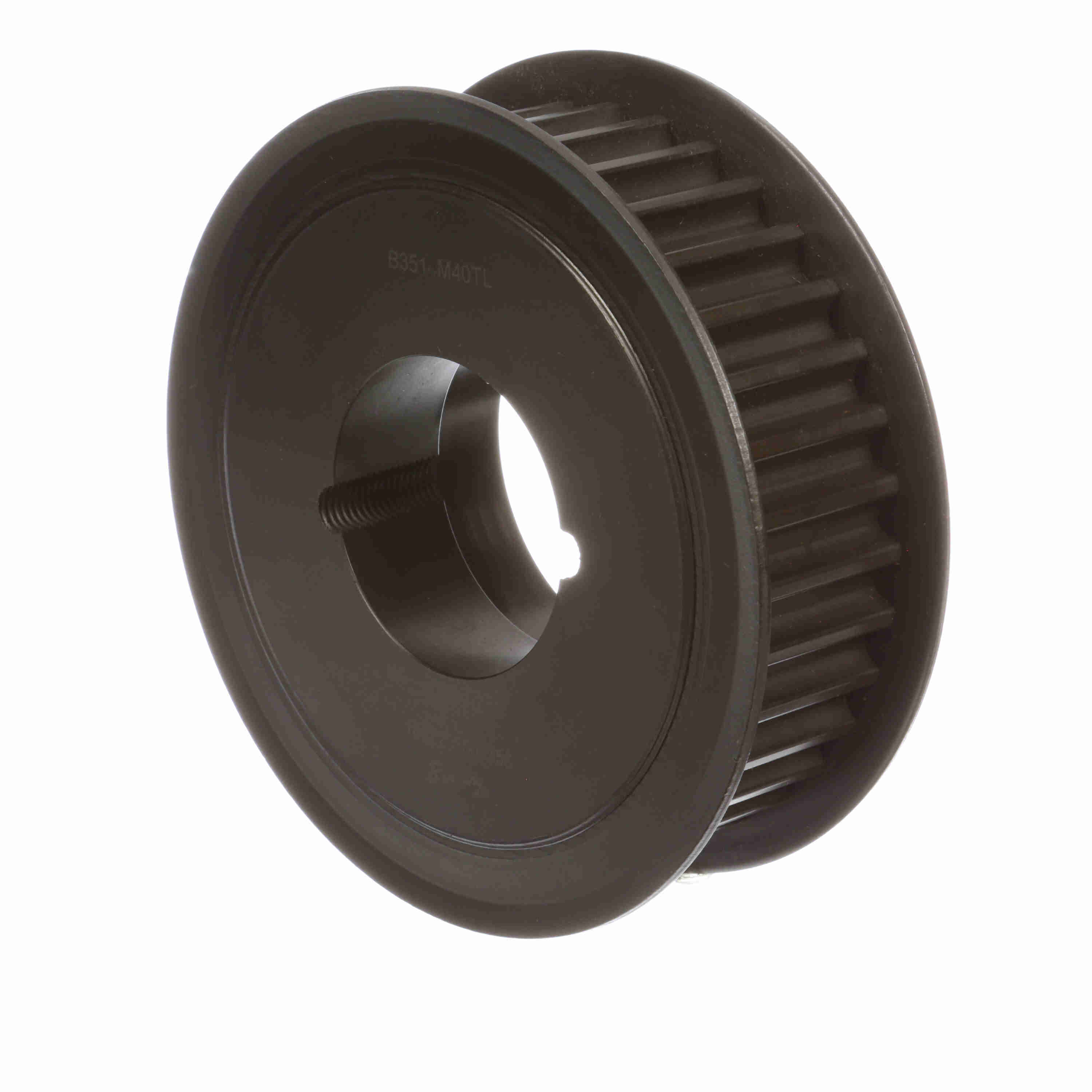

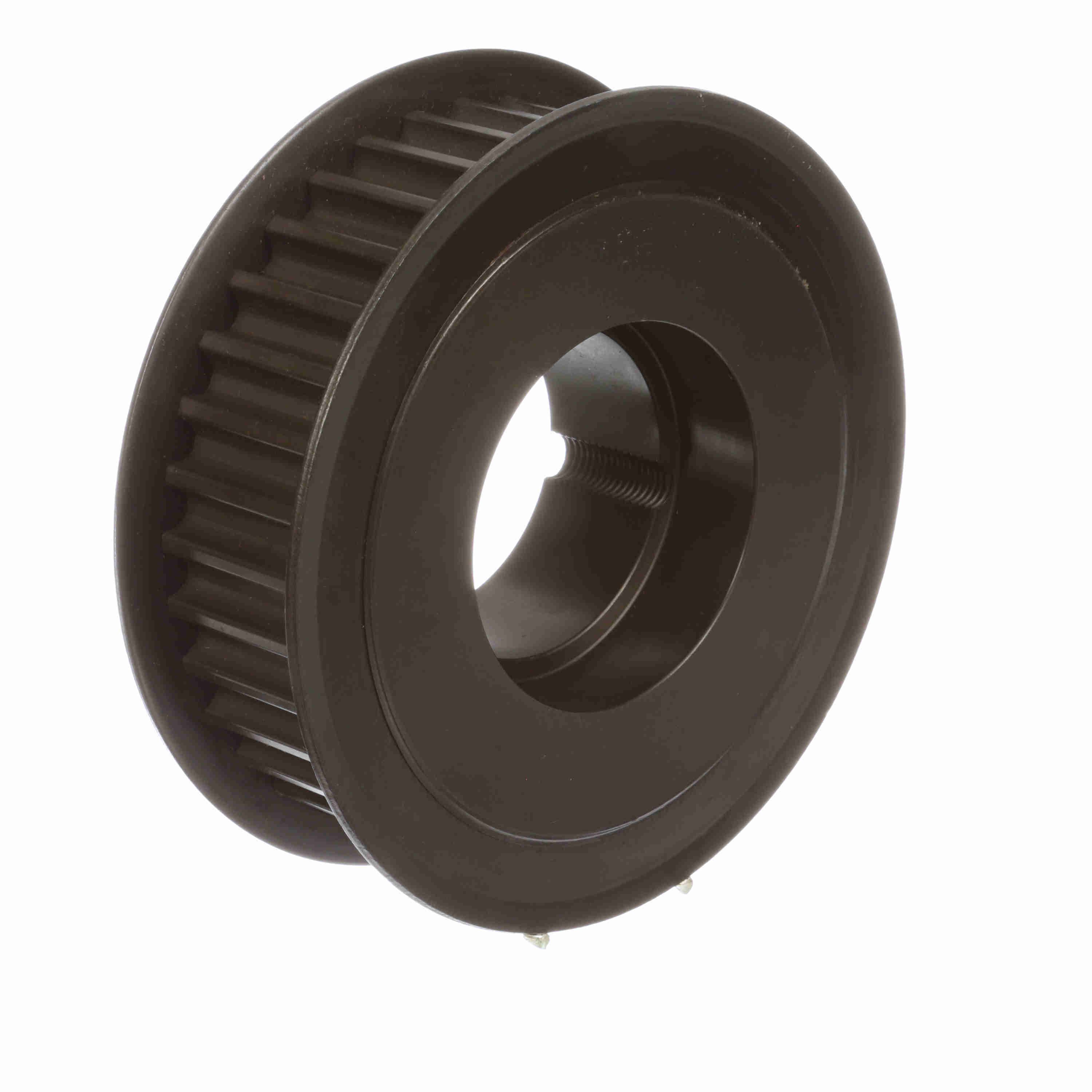

Browning Steel Bushed Bore HPT Sprocket - B3514M40TL

Part #:2763480

Catalog #:B3514M40TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Width (mm):	40 mm	Bushing:	2012
Number of teeth:	35	Product Type:	HPT Sprocket
Flange (mm):	173.1264 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Bore (Min) (mm):	12.7 mm
Material:	Steel	Outside Diameter (mm):	153.1874 mm
Pitch Diameter (mm):	155.9814 mm	Bore (Max) (mm):	50.8 mm
Belt Section:	14M

General Specifications

UPC:	662460610436	Weight:	10.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
