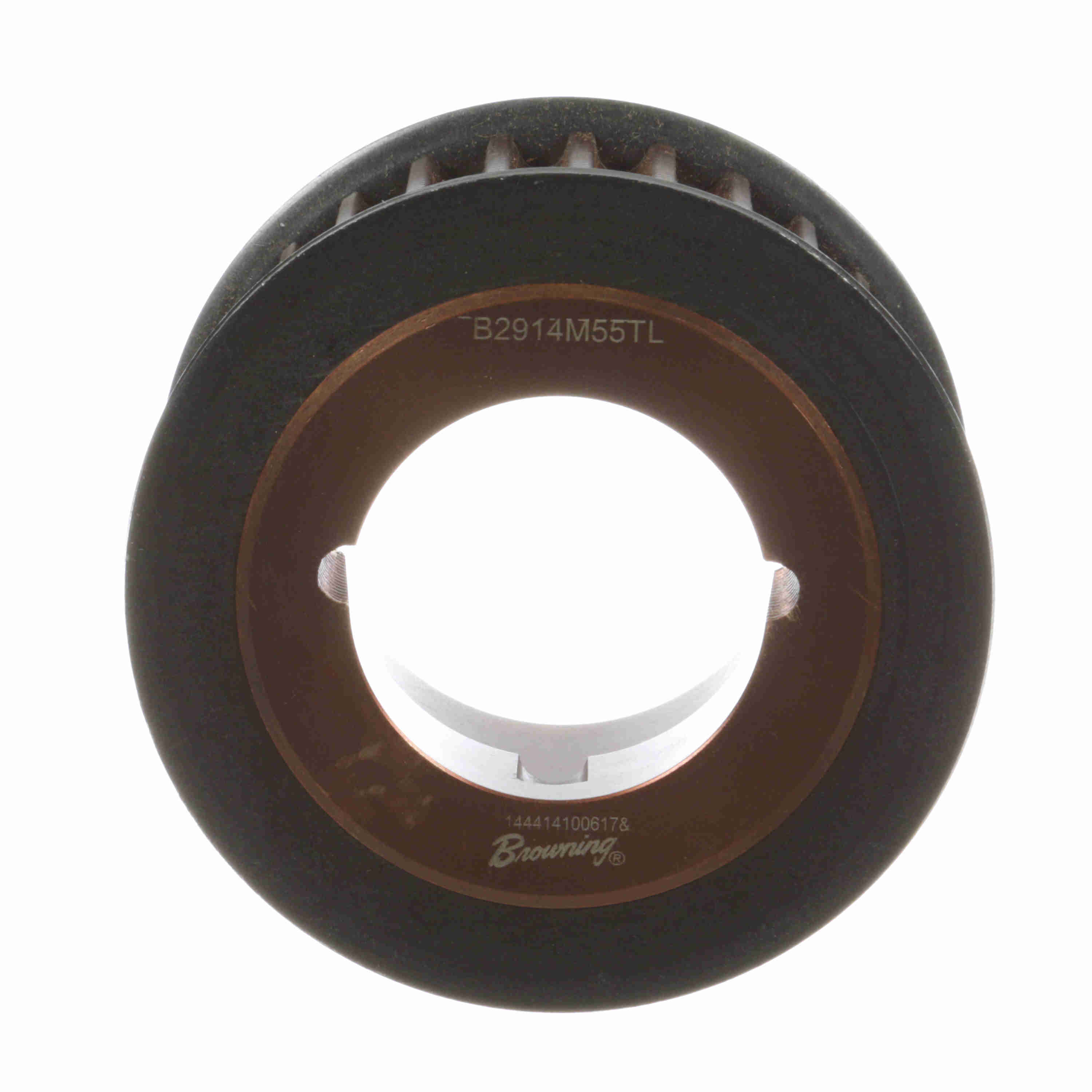

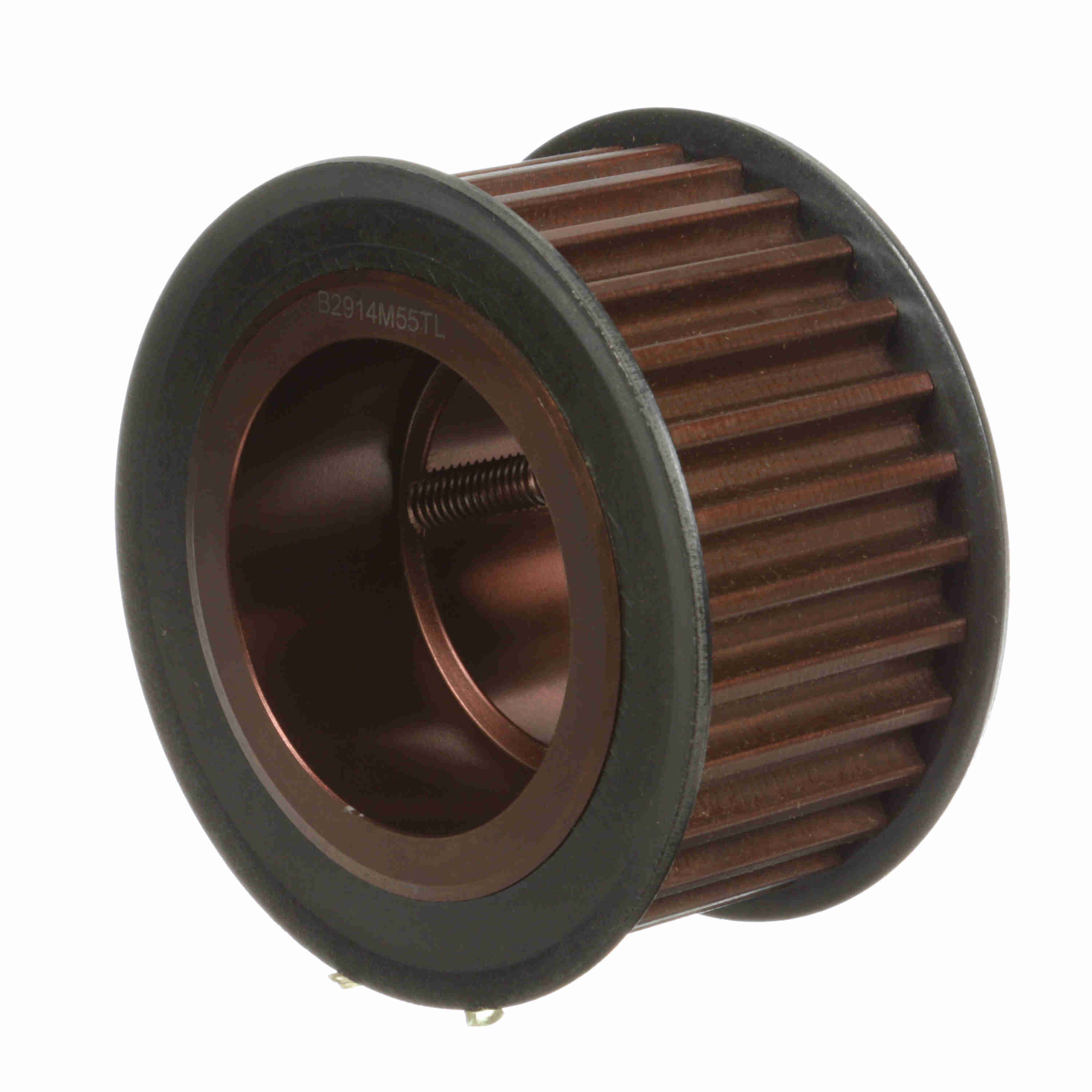

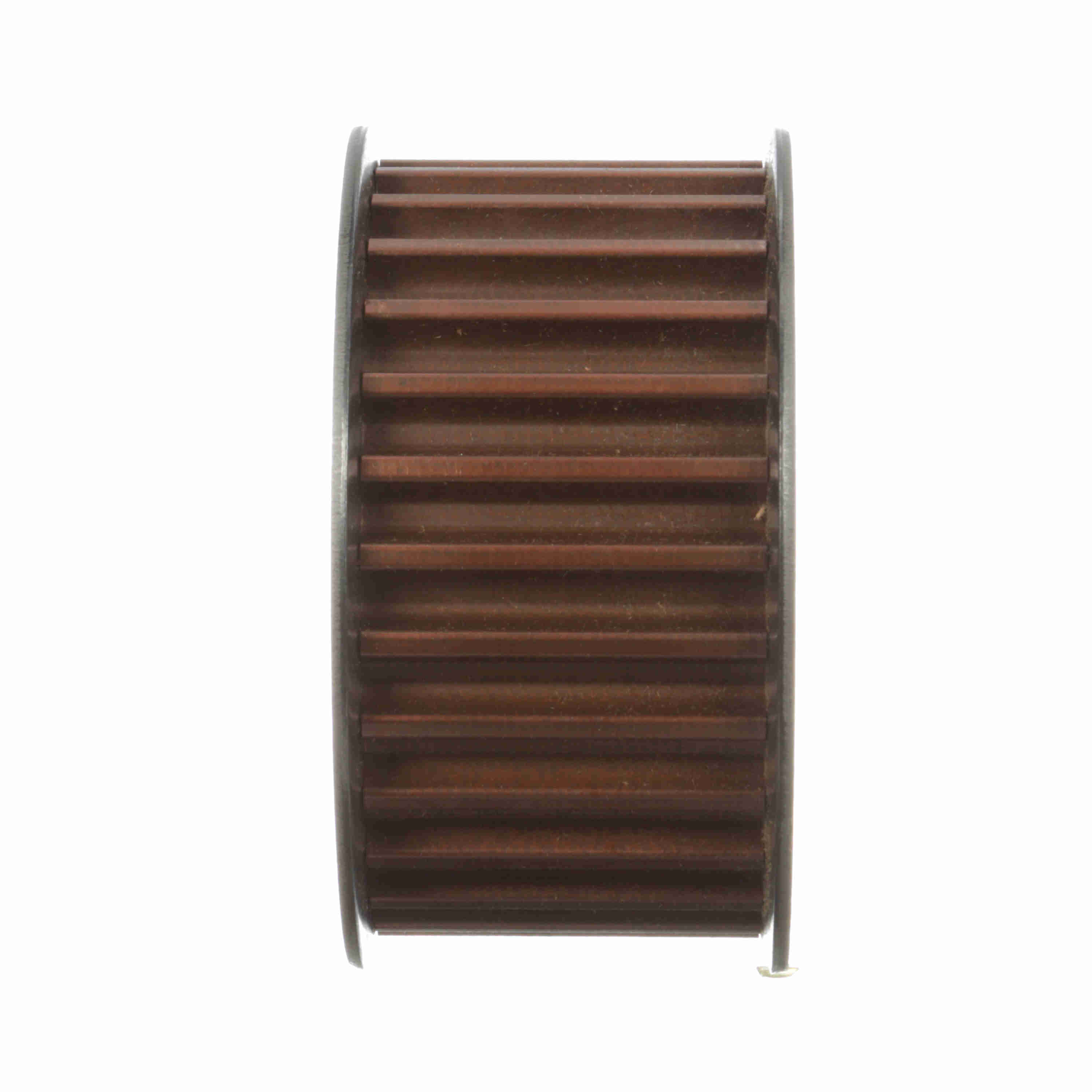

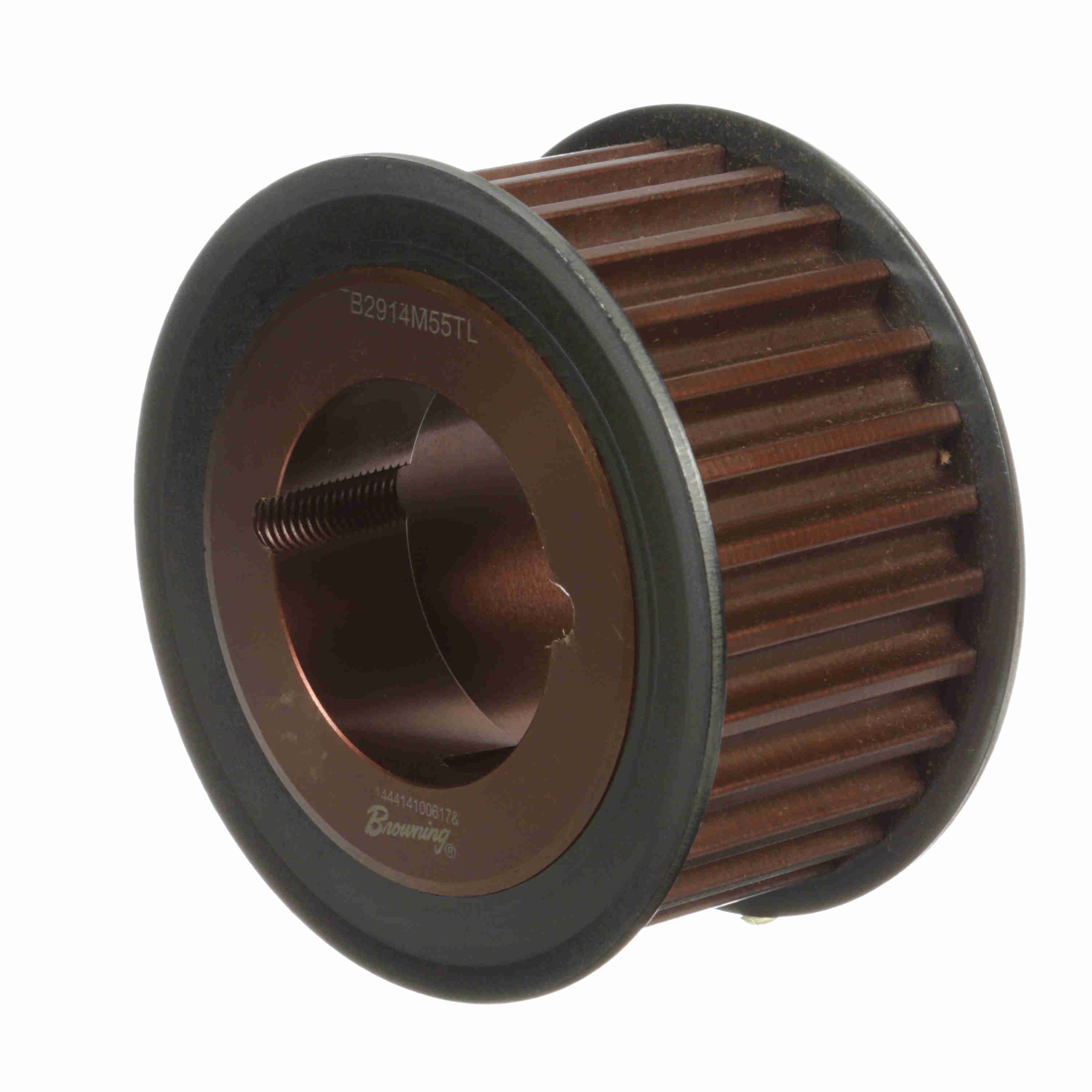

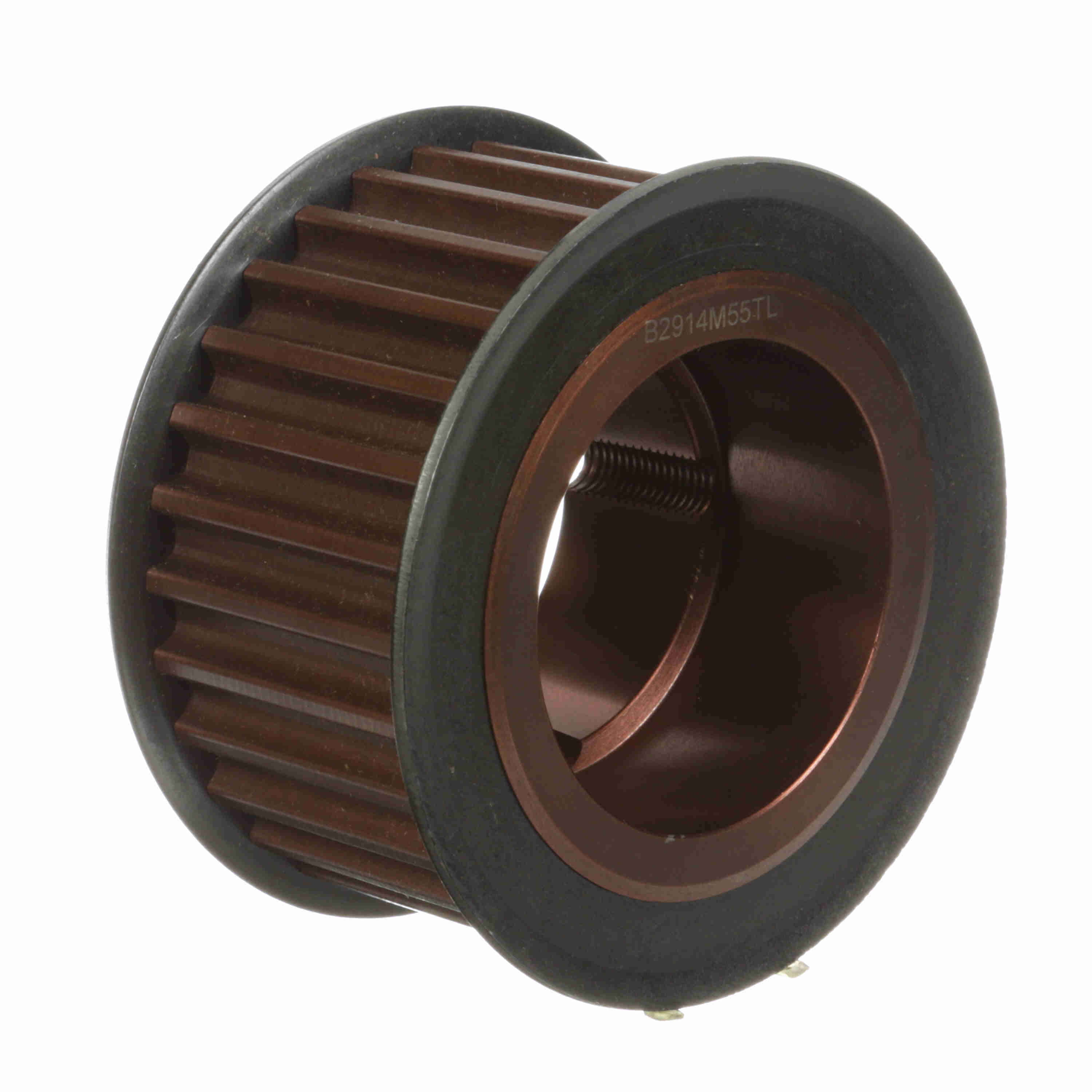

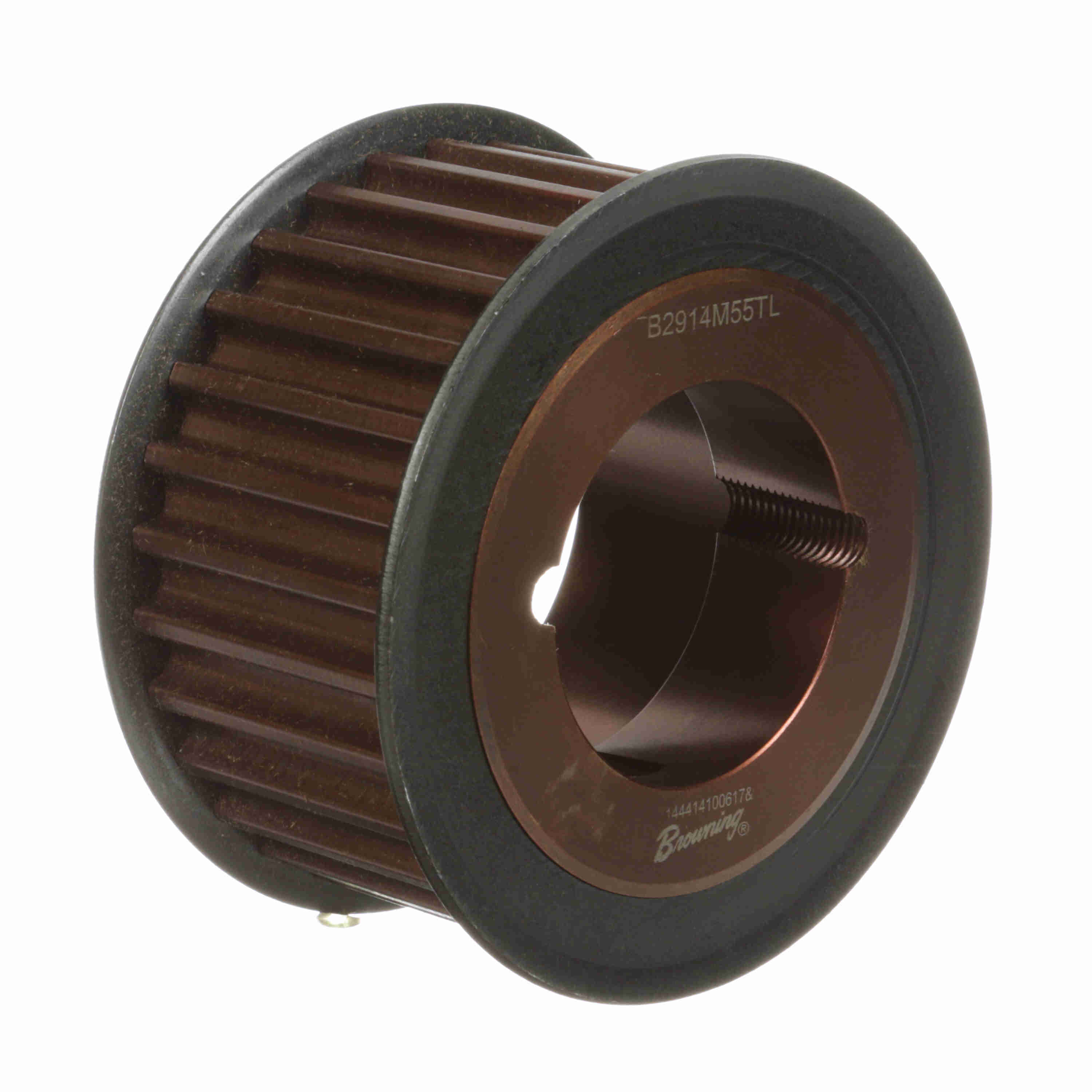

Browning Steel Bushed Bore HPT Sprocket - B2914M55TL

Part #:2763720

Catalog #:B2914M55TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Number of teeth:	29	Product Type:	HPT Sprocket
Bushing:	2517	Flange (mm):	141.2748 mm
Width (mm):	55 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Material:	Steel
Pitch Diameter (mm):	129.2352 mm	Bore (Max) (mm):	50.8 mm
Bore (Min) (mm):	12.7 mm	Outside Diameter (mm):	126.4412 mm
Belt Section:	14M

General Specifications

UPC:	662460610672	Weight:	8.17 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
