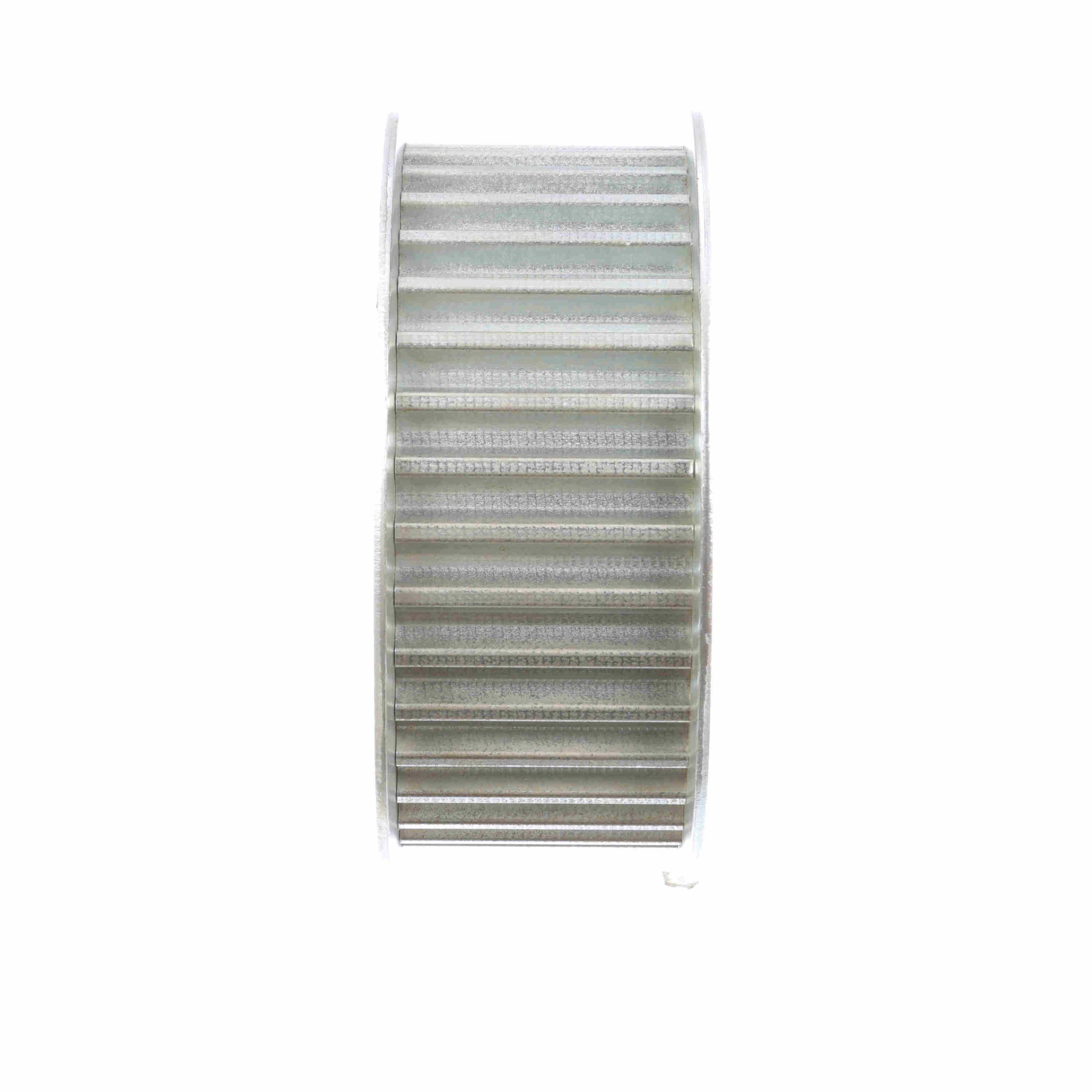

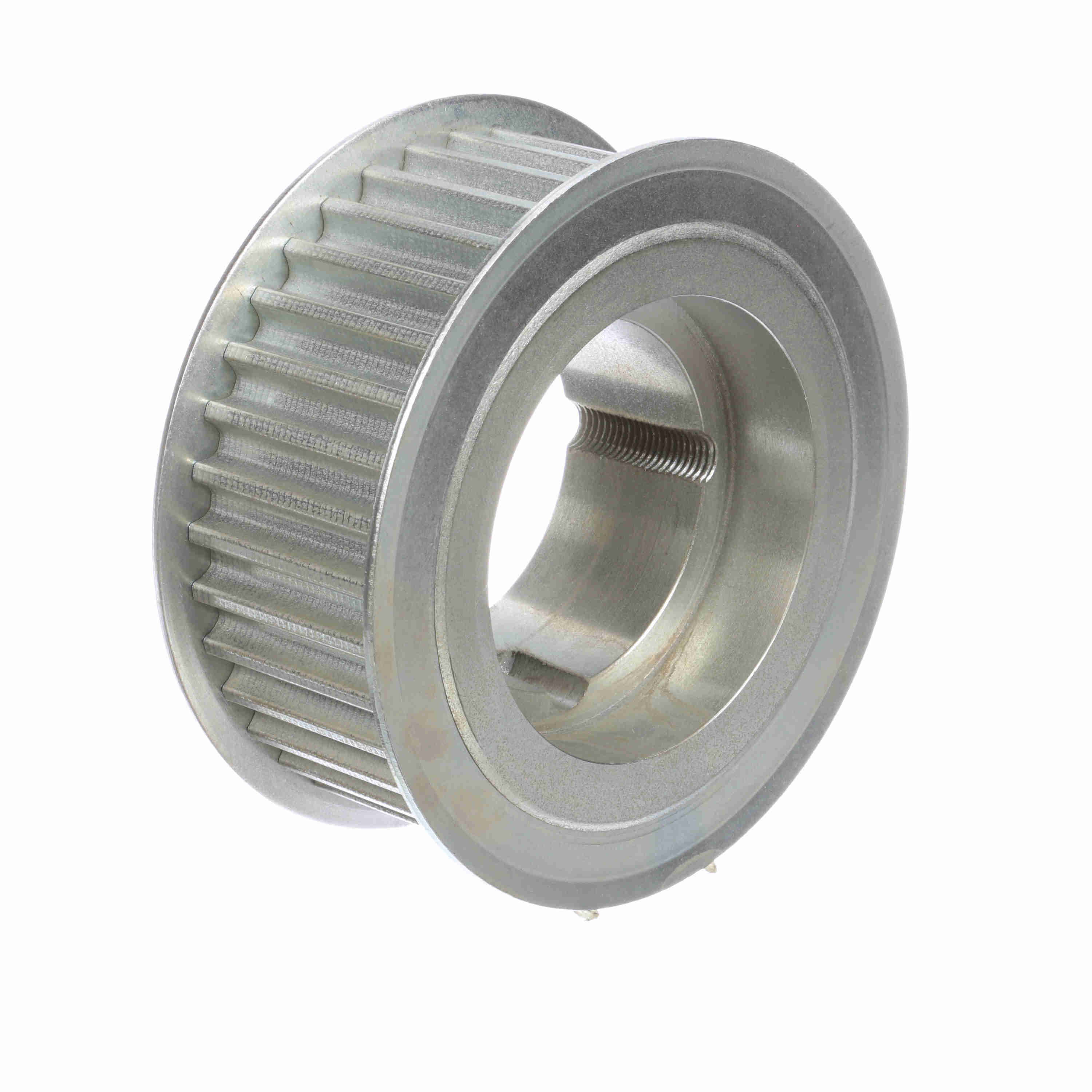

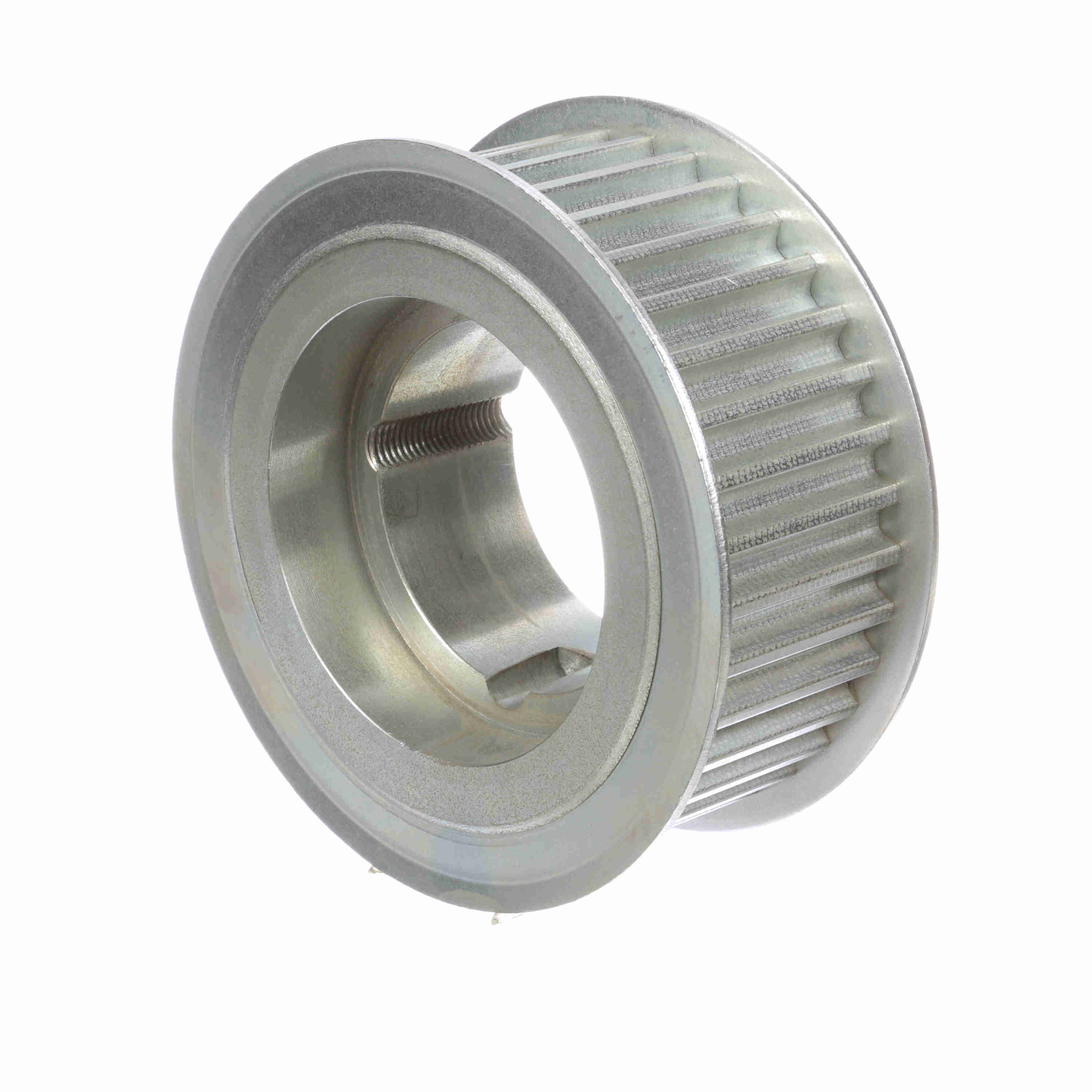

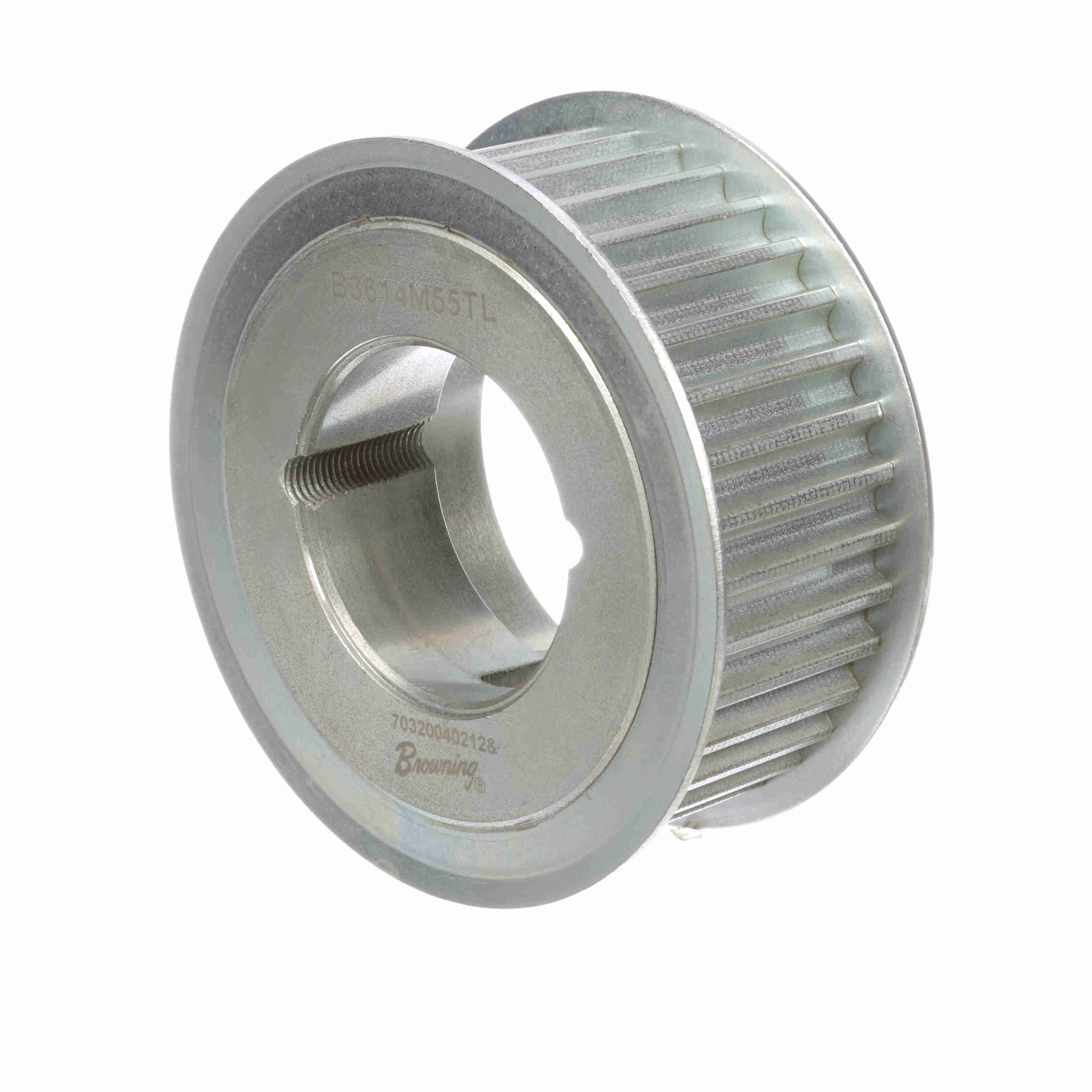

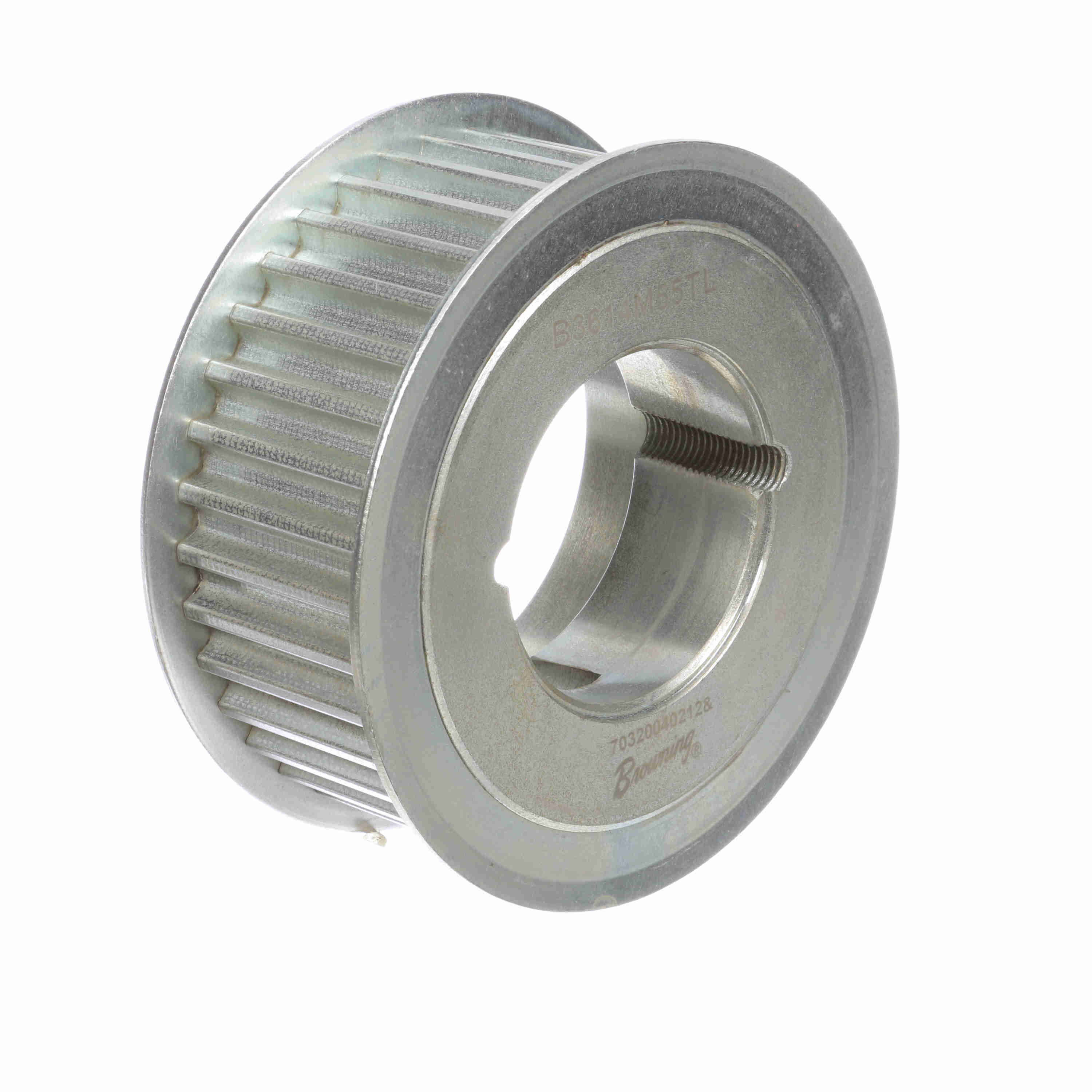

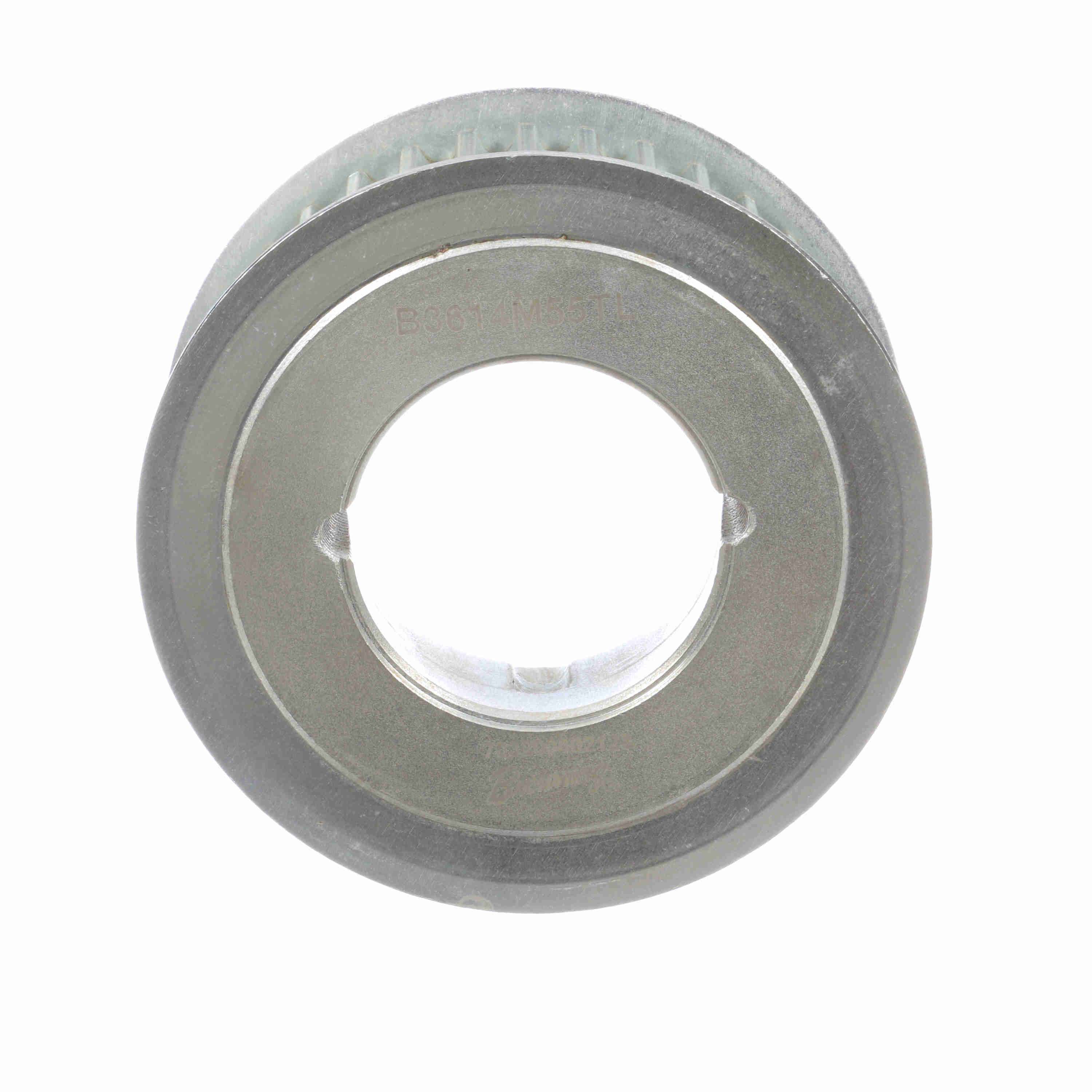

Browning Steel Bushed Bore HPT Sprocket - B3614M55TL

Part #:2763761

Catalog #:B3614M55TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Product Type:	HPT Sprocket	Flange (mm):	173.1264 mm
Number of teeth:	36	Width (mm):	55 mm
Bushing:	2517	Bushing Type:	Taper Bore
Bore Type:	Bushed	Bore (Min) (mm):	12.7 mm
Belt Section:	14M	Outside Diameter (mm):	157.6324 mm
Bore (Max) (mm):	63.5 mm	Material:	Steel
Pitch Diameter (mm):	160.4264 mm

General Specifications

UPC:	662460610719	Weight:	12.36 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
