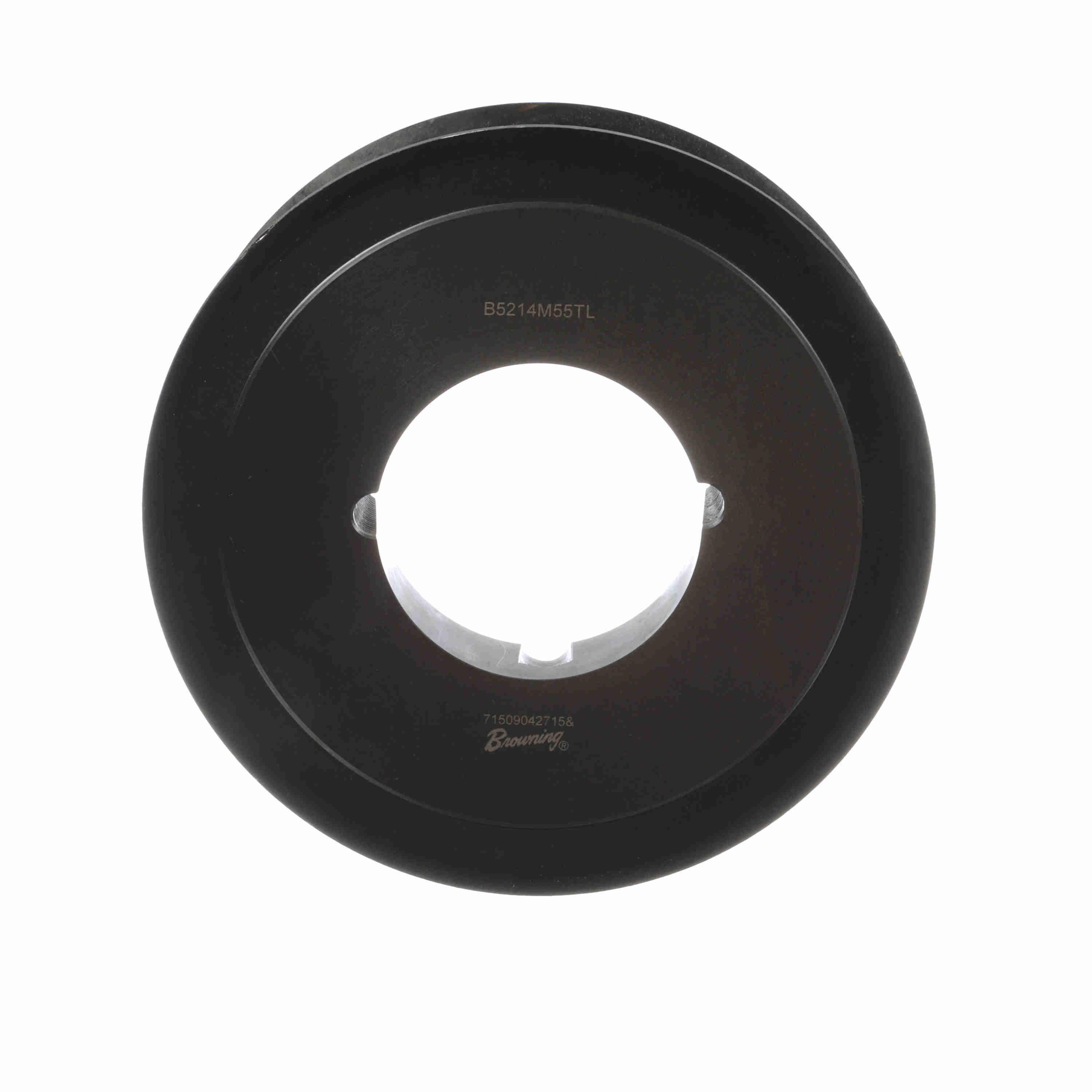

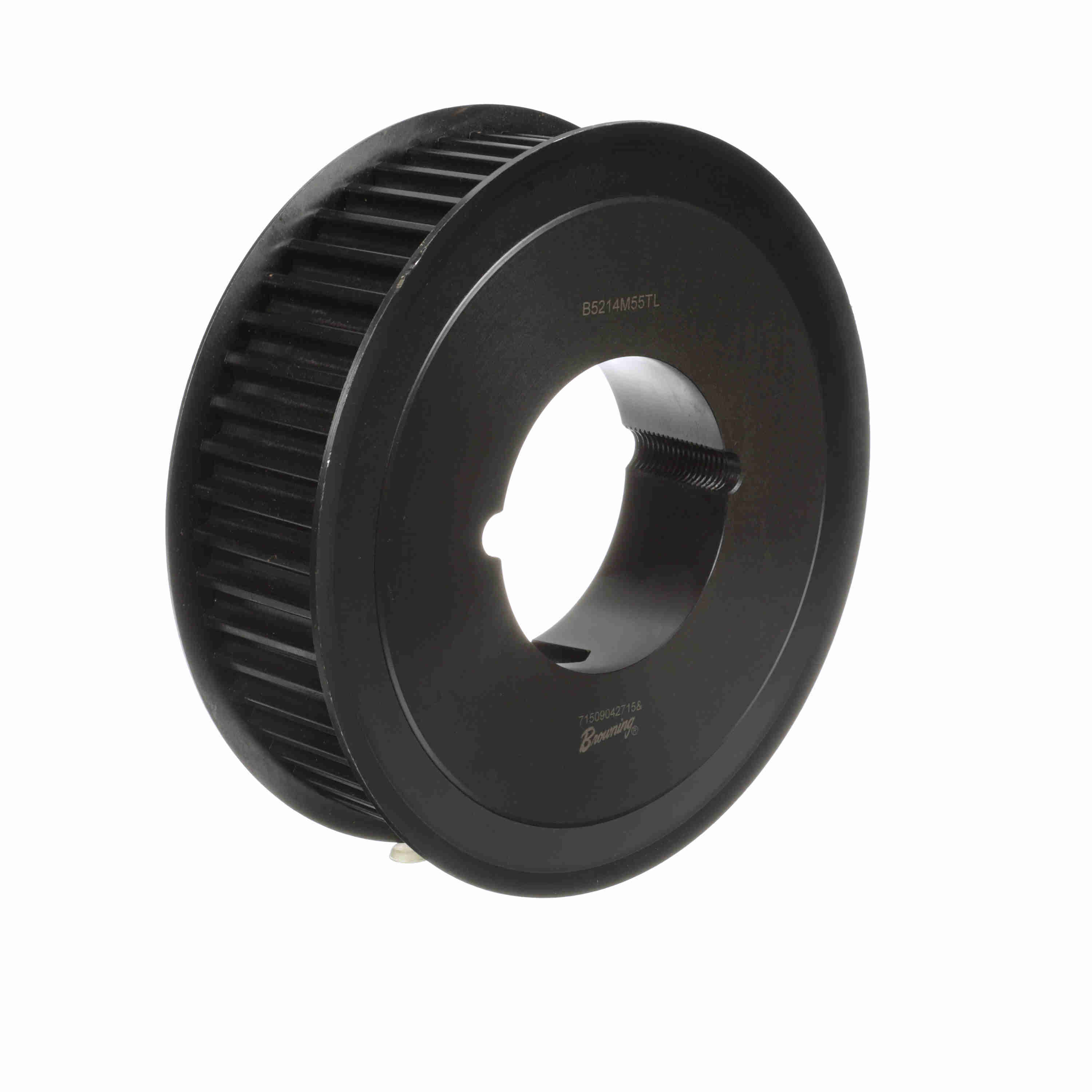

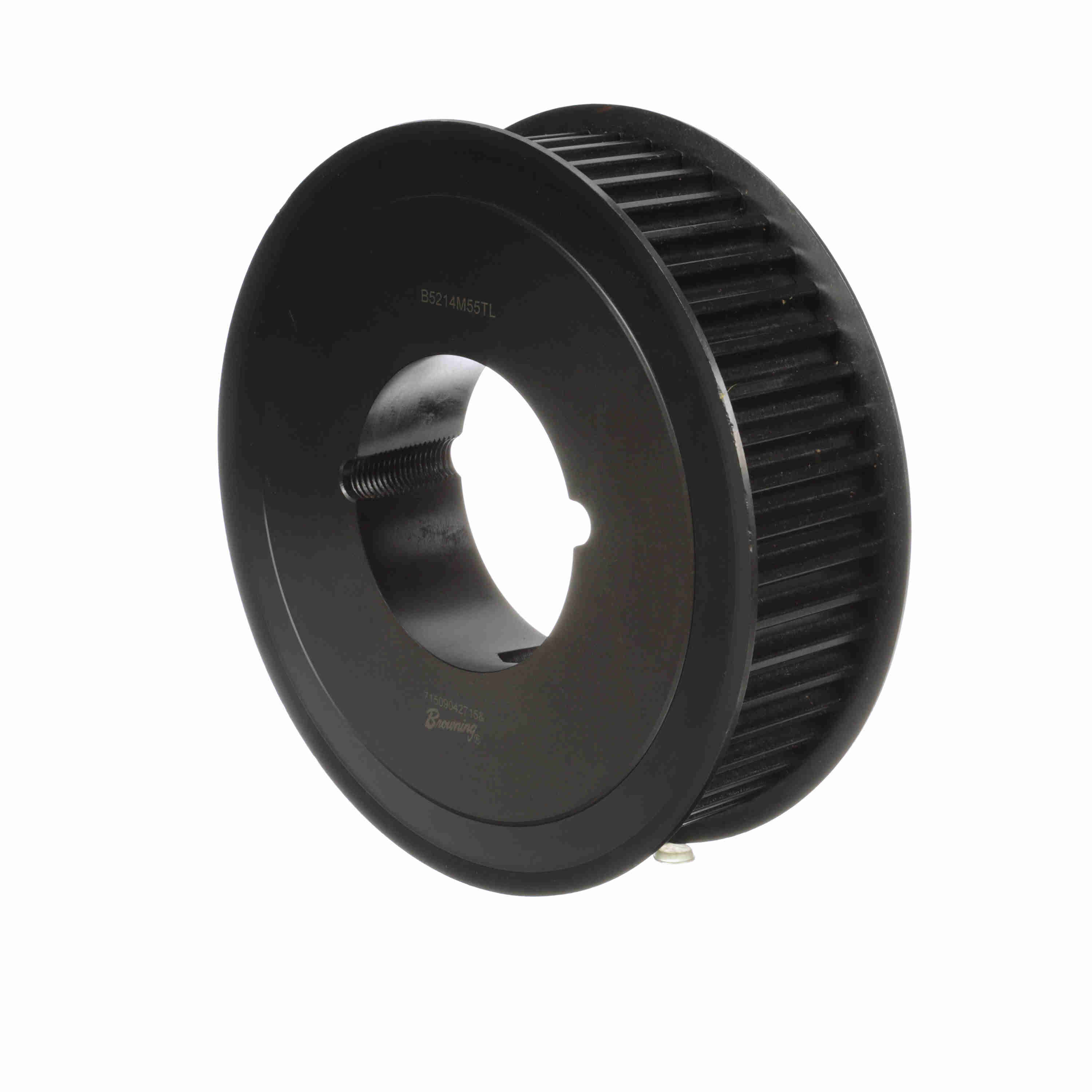

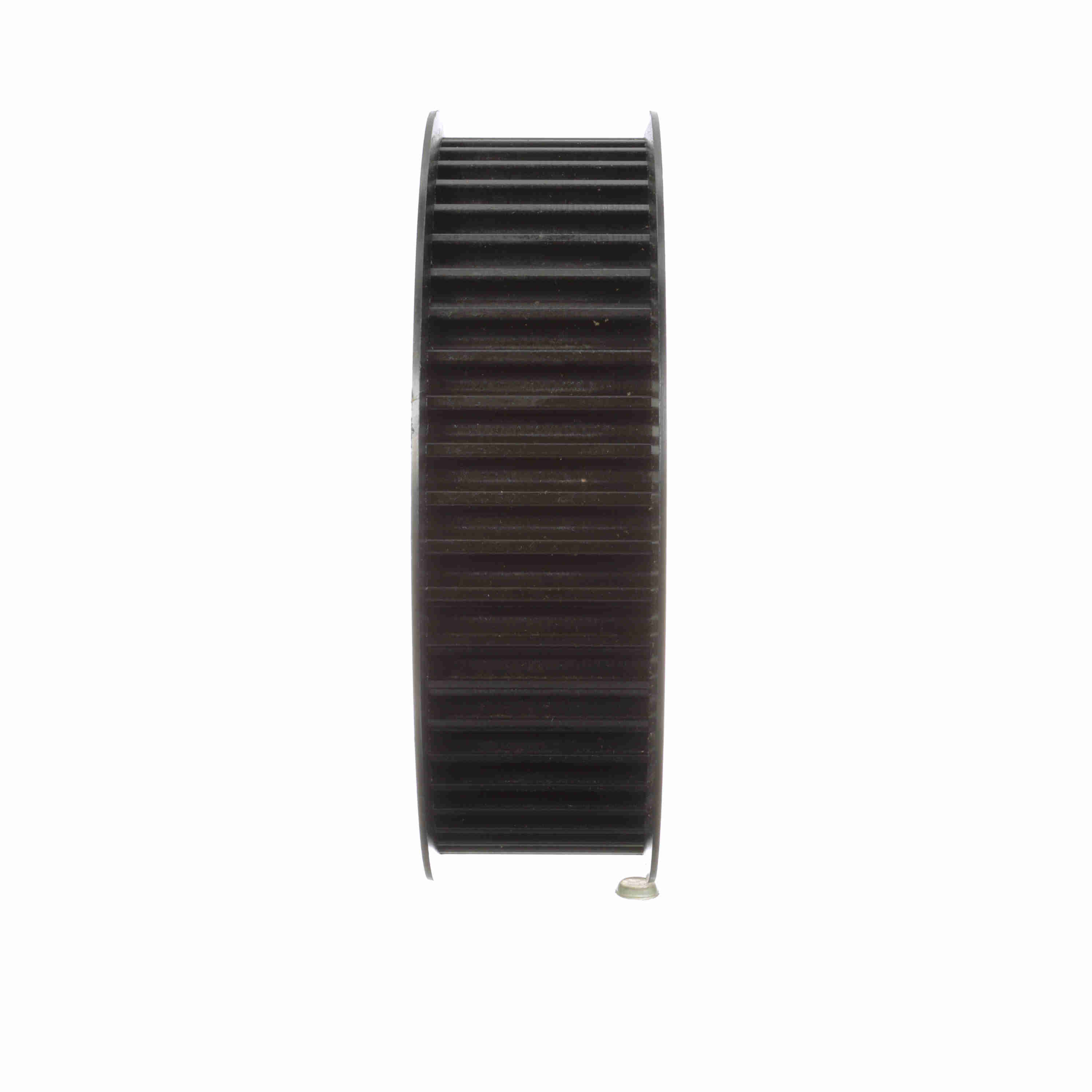

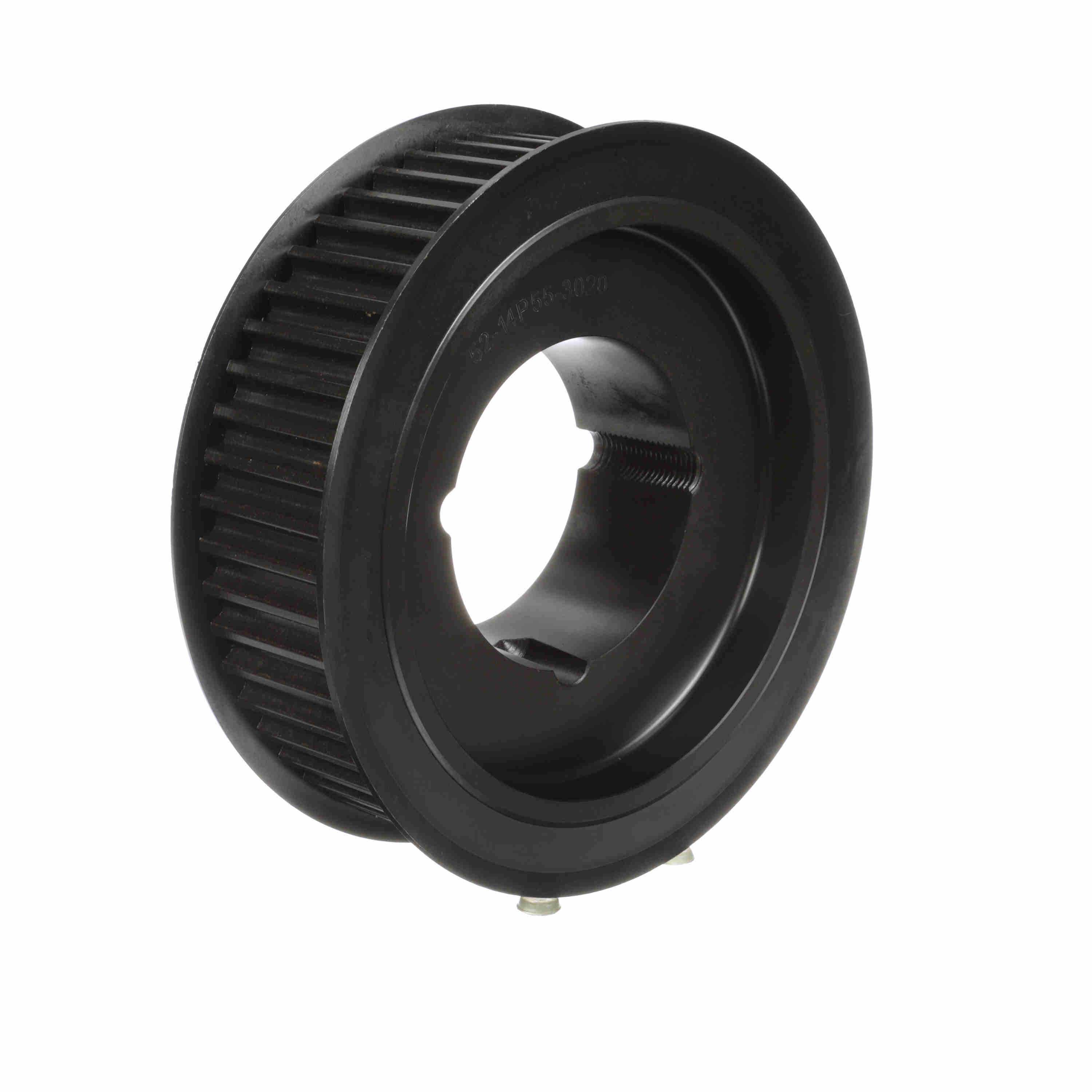

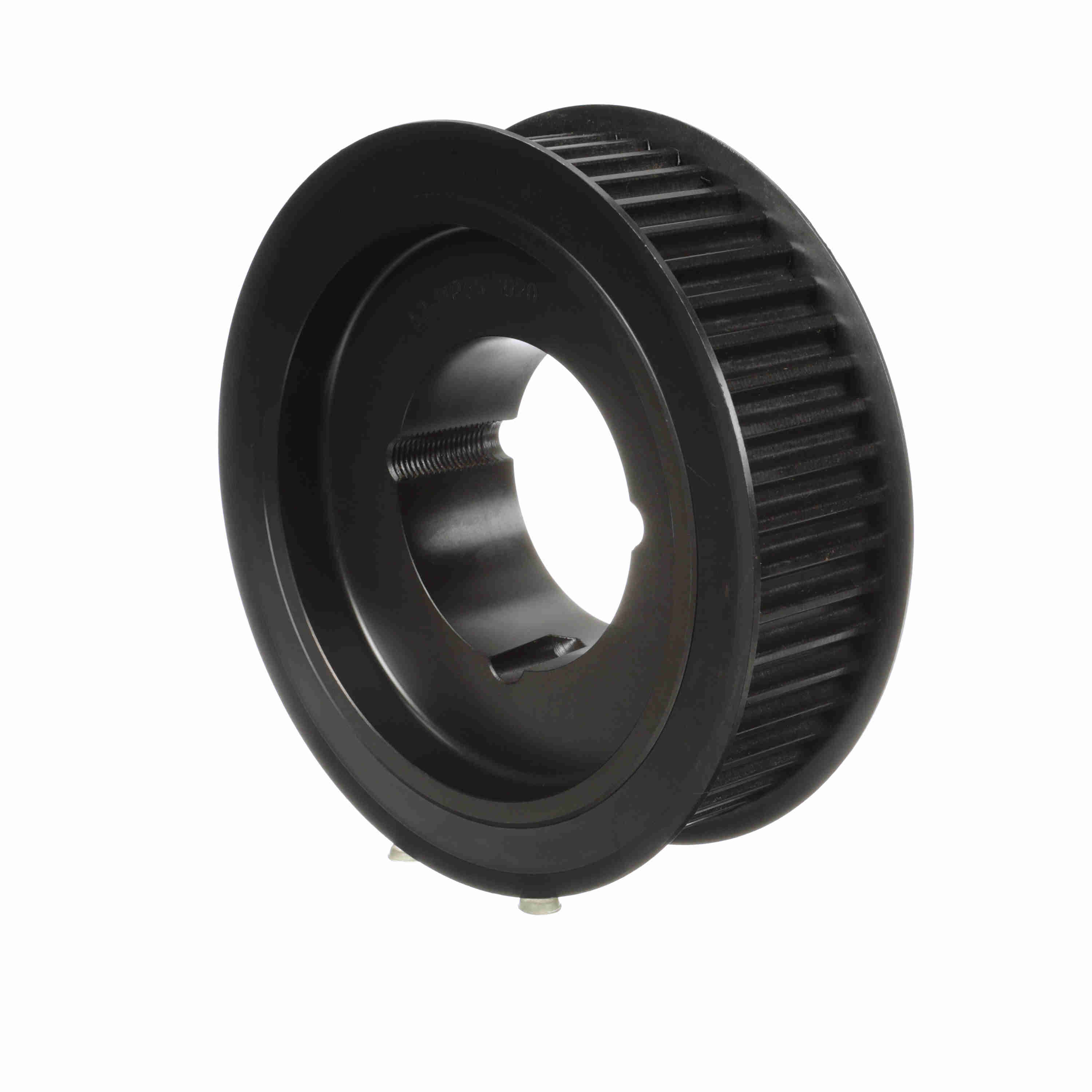

Browning Steel Bushed Bore HPT Sprocket - B5214M55TL

Part #:2763811

Catalog #:B5214M55TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	3020	Flange (mm):	246.0498 mm
Product Type:	HPT Sprocket	Width (mm):	55 mm
Number of teeth:	52	Bushing Type:	Taper Bore
Bore Type:	Bushed	Material:	Steel
Pitch Diameter (mm):	231.7242 mm	Belt Section:	14M
Bore (Max) (mm):	76.2 mm	Outside Diameter (mm):	228.9302 mm
Bore (Min) (mm):	23.8125 mm

General Specifications

UPC:	662460610771	Weight:	29.26 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
