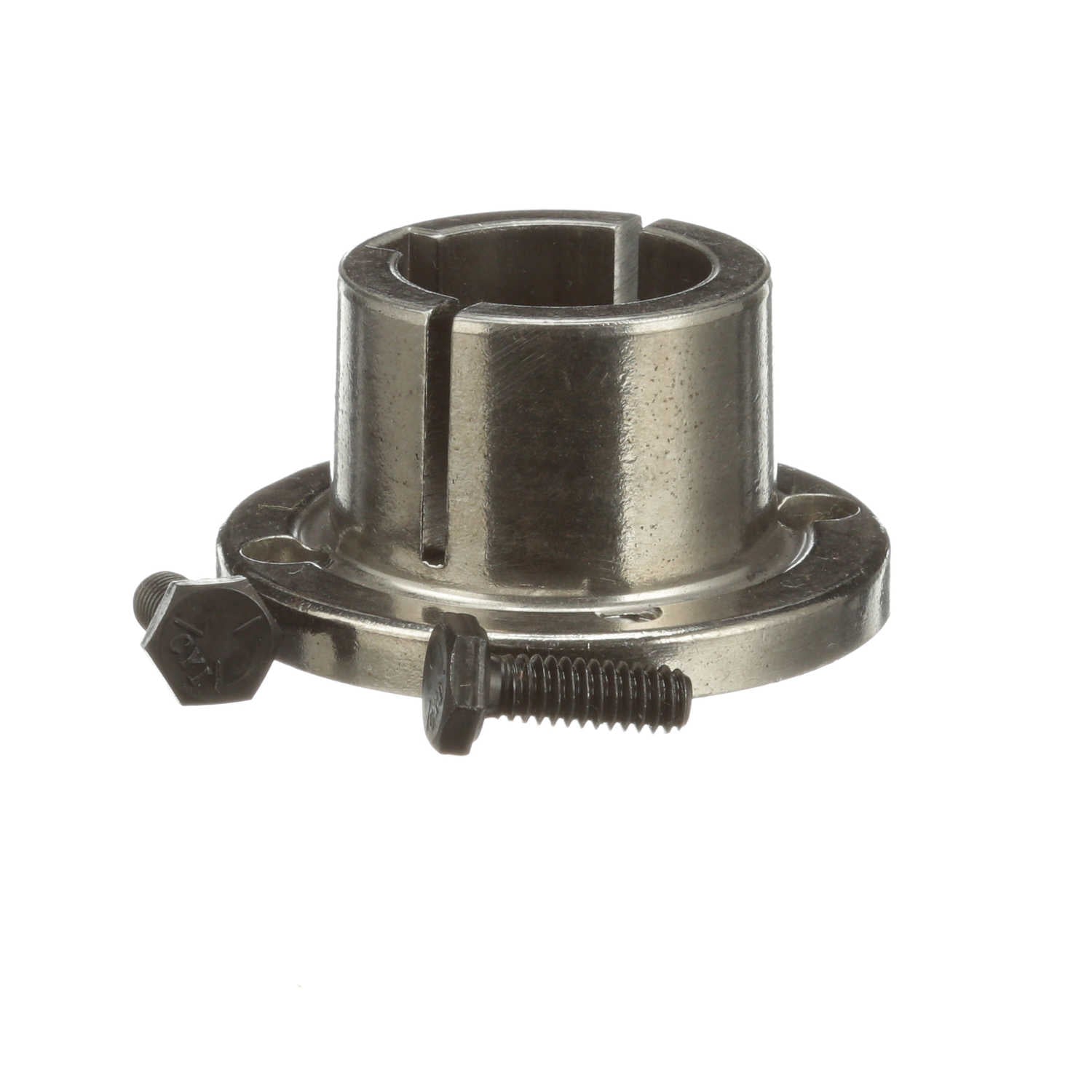

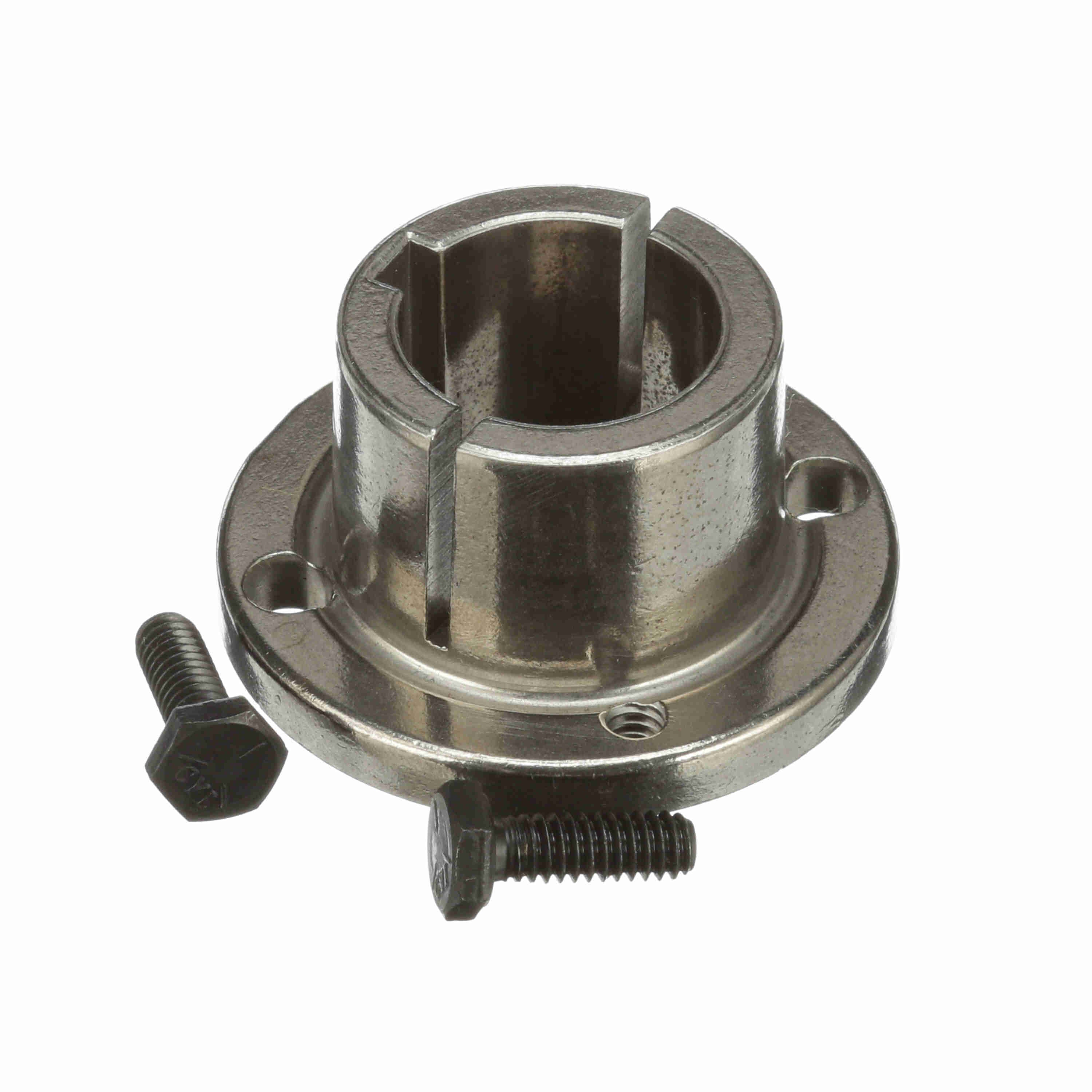

Browning Split Taper Bushing - Inch Bore Type - H 1 1/8
Part #:1078351
Catalog #:H 1 1/8
KEY FEATURES
- Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
- 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Split Taper Bushing | Total Length (in): | 1.25 in |
| Keyseat: | 1/4 x 1/8 | Length Through Bore (in): | 1.25 in |
| Compatible Bore Size [Max] (in): | 1.125 in | Bore Size (in): | 1.125 in |
| Outside Diameter (in): | 2.5 in | Cap Screws (Size): | 1/4 x 3/4 |
| Wrench Torque (in-lb): | 95 | Bushing Type: | H |
| Material: | Sintered Steel or Ductile Iron | Model Name: | H-Bushing_1_Master |
| Bore Type: | Inch | Cap Screws (No.): | 2 |
General Specifications
| UPC: | 662289199082 | Weight: | 0.54 LB |
| Packaged Length: | 2.70 IN | Packaged Width: | 2.70 IN |
| Packaged Height: | 1.50 IN | HTC: | 8483.90.8080 |
| Country of Origin: | United States of America |
