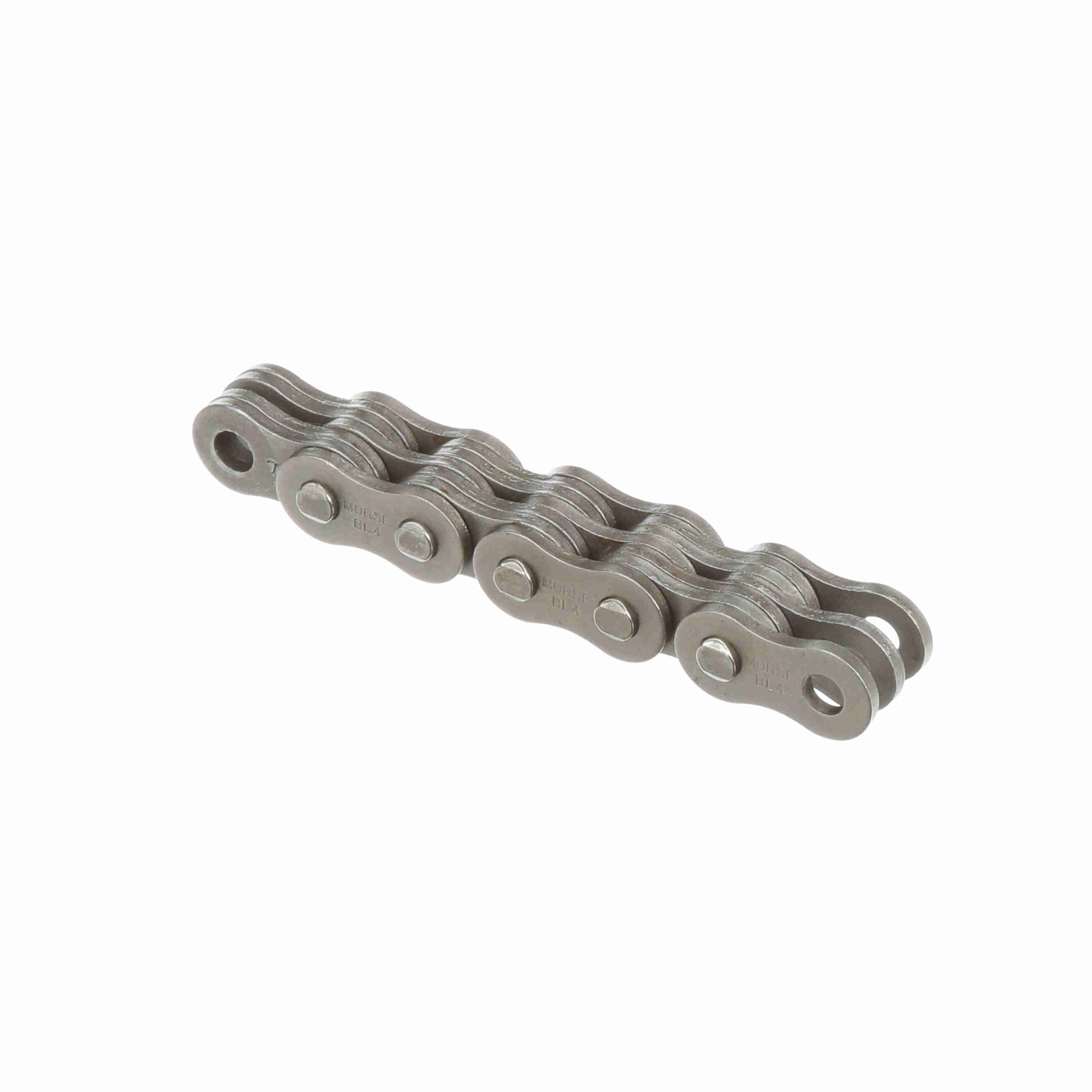

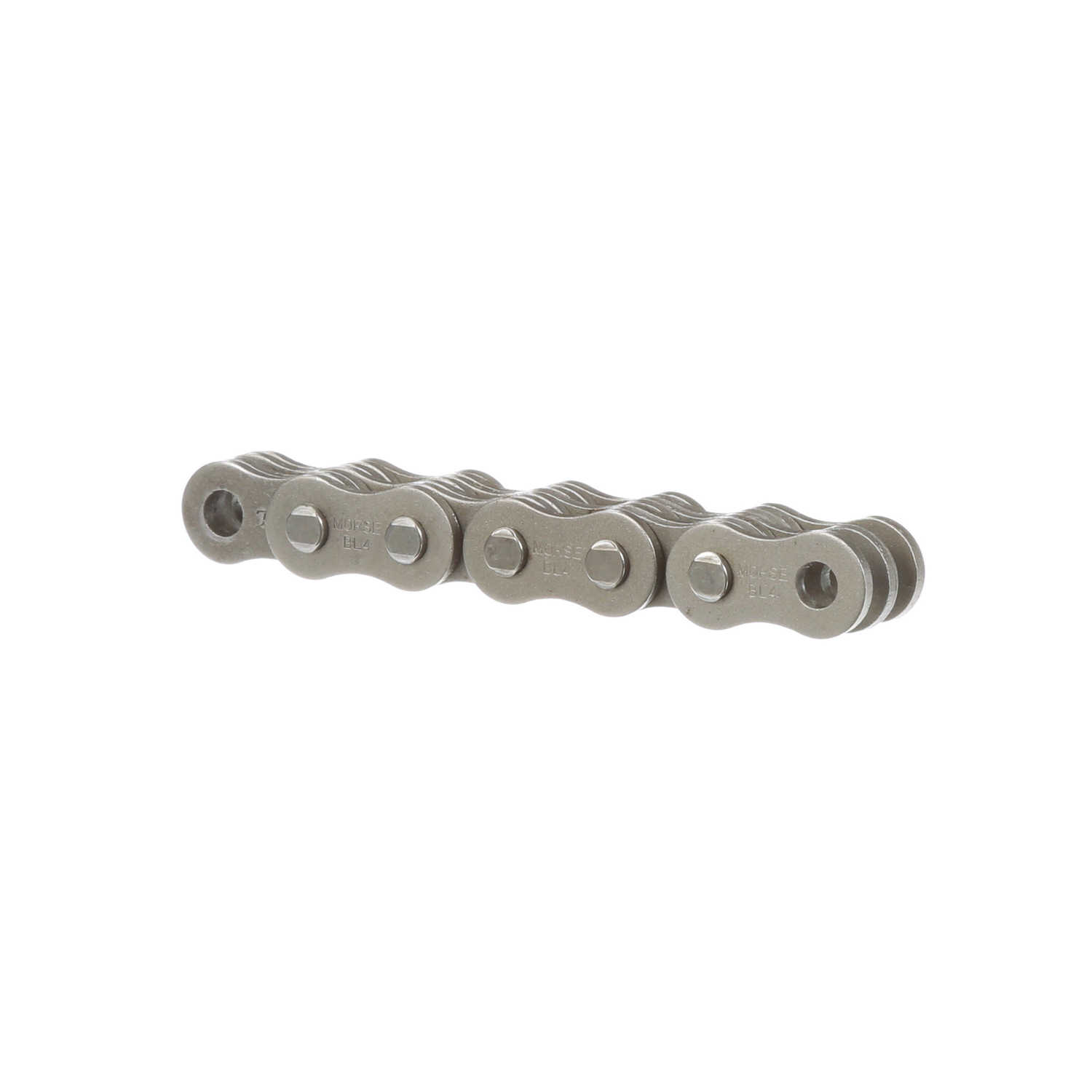

Morse Leaf Chain BL4 Series 3 x 4 Lacing - BL434 10FT 239P M TO M

Name: Morse Leaf Chain BL4 Series 3 x 4 Lacing - BL434 10FT 239P M TO M
Brand: Morse
Availability: OutOfStock

Part #:323879

Catalog #:BL434 10FT 239P M TO M

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Chain Size:	BL4	Chain Type:	Leaf Chain
Chain Pitch (in):	0.5 in	Product Type:	Leaf Chain
Pin Diameter (in):	0.2 in	Base Catalog No:	BL434
Lacing (in):	3 x 4 in	Plate Depth (in):	0.466 in
Width Over Rivets (in):	0.66 in	Rex/Morse Minimum Tensile Strength (lbs):	7,500 lb
Plate Thickness (in):	0.08 in

UPC:	662288459507	Weight:	0.71 LB
HTC:	7315.12.0080	Country of Origin:	Taiwan, Republic of China
