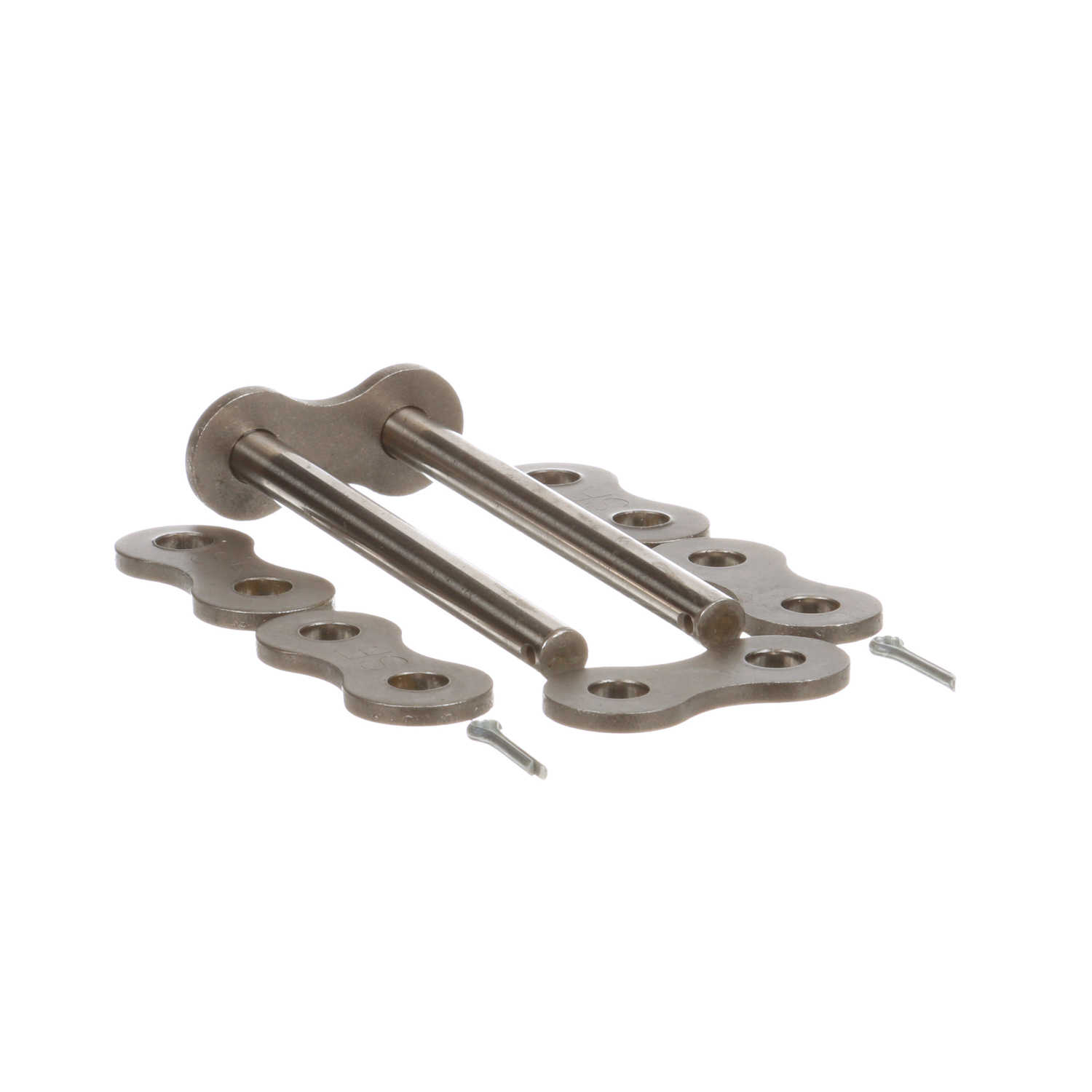

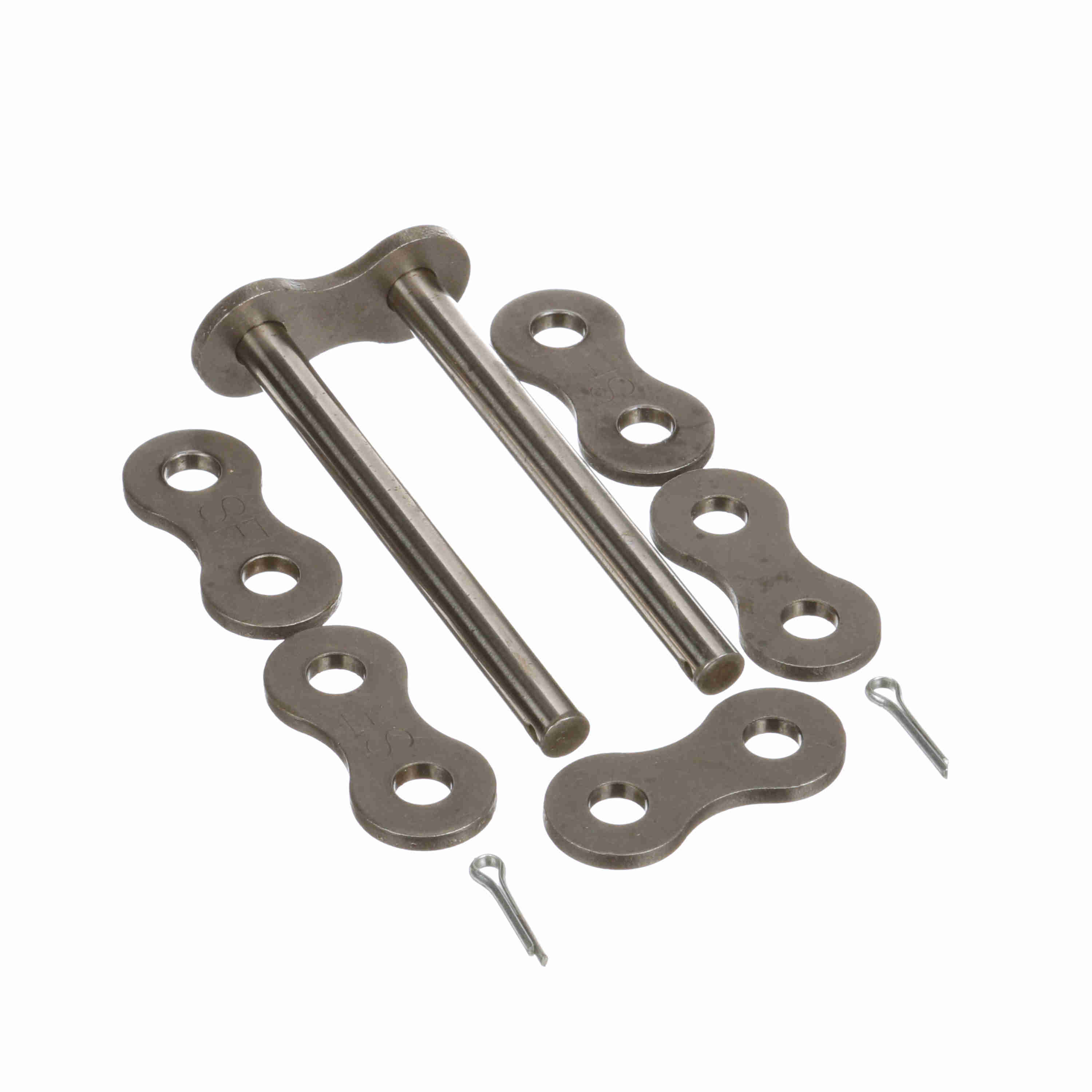

Morse Standard Roller Chain Cotter Pin Connecting Link - 80-3 C/L C/P S/F

Name: Morse Standard Roller Chain Cotter Pin Connecting Link - 80-3 C/L C/P S/F
Brand: Morse
Availability: OutOfStock

Part #:332298

Catalog #:80-3 C/L C/P S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Number of Strands/Width:	3	Connecting Link - Slip Fit:	Cotter
Number of Connecting Links Included:	2	Roller Diameter (in):	0.625 in
Pin Diameter (in):	0.312 in	Roller Width (in):	0.625 in
Material:	Steel	Chain Size:	80
Chain Type:	Standard	Product Type:	Roller Chain
Chain Pitch (in):	1 in	Chain Construction:	Cottered
Link Type:	Connecting Link	Overall Width/Pin Length (in):	3.59 in
Side Plate Configuration:	Hourglass	Inside Plate Height (in):	0.934 in
Plate Thickness (in):	0.125 in
