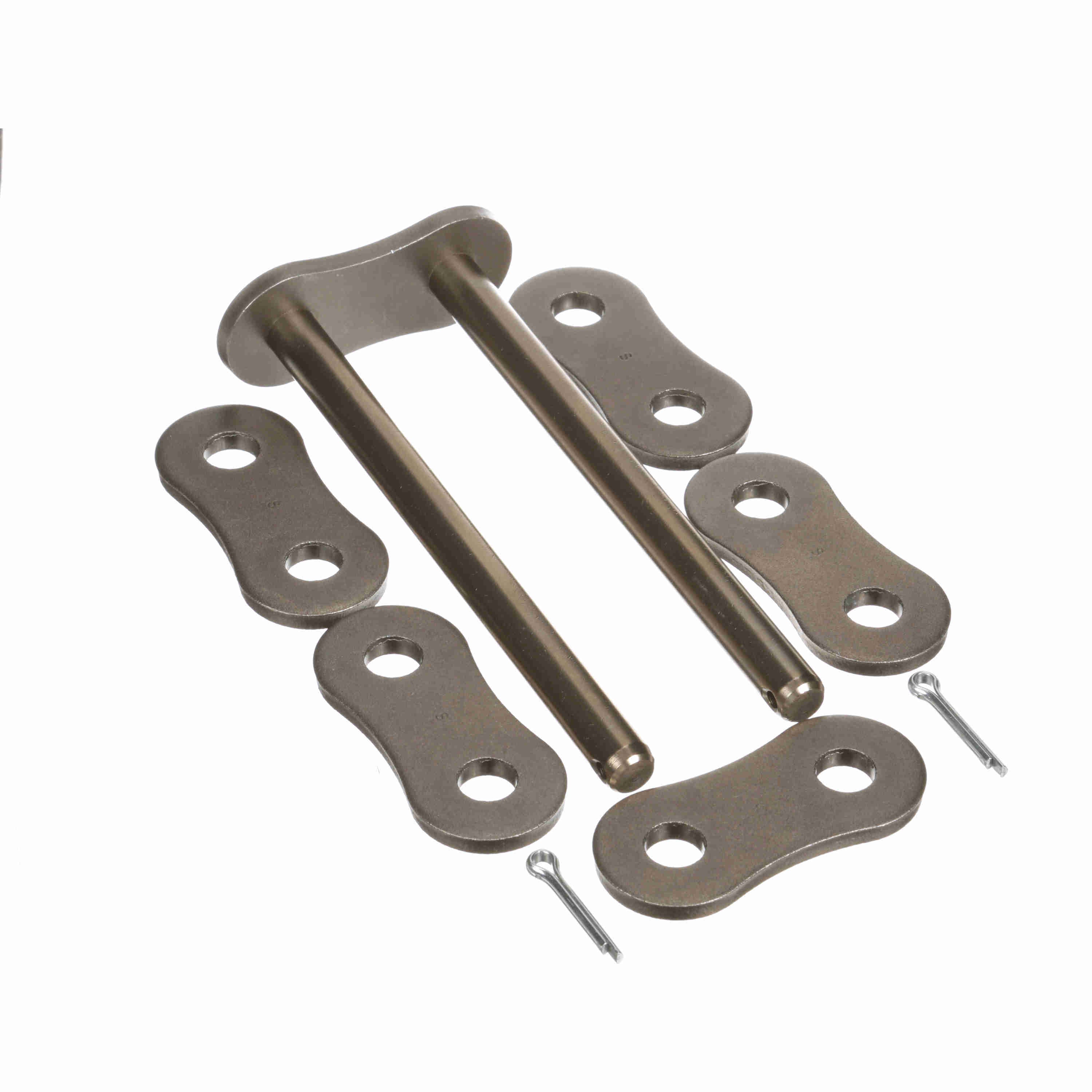

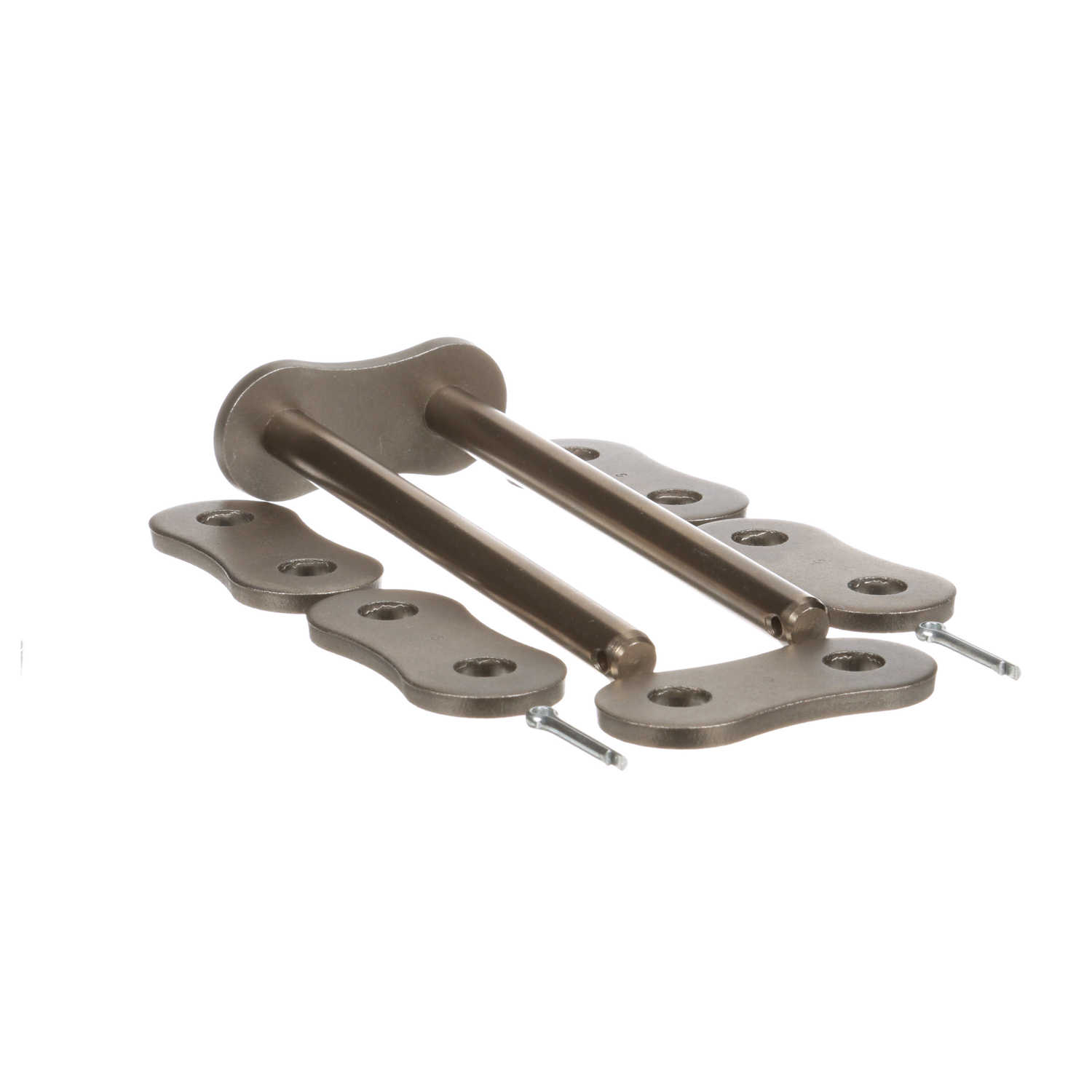

Morse Standard Roller Chain Cotter Pin Connecting Link - 120-3 C/L C/P S/F

Name: Morse Standard Roller Chain Cotter Pin Connecting Link - 120-3 C/L C/P S/F
Brand: Morse
Availability: OutOfStock

Part #:332300

Catalog #:120-3 C/L C/P S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Chain Size:	120	Material:	Steel
Number of Connecting Links Included:	2	Roller Diameter (in):	0.875 in
Connecting Link - Slip Fit:	Cotter	Number of Strands/Width:	3
Roller Width (in):	1 in	Pin Diameter (in):	0.437 in
Chain Type:	Standard	Product Type:	Roller Chain
Chain Pitch (in):	1.5 in	Chain Construction:	Cottered
Link Type:	Connecting Link	Inside Plate Height (in):	1.4 in
Side Plate Configuration:	Hourglass	Overall Width/Pin Length (in):	5.54 in
Plate Thickness (in):	0.187 in
