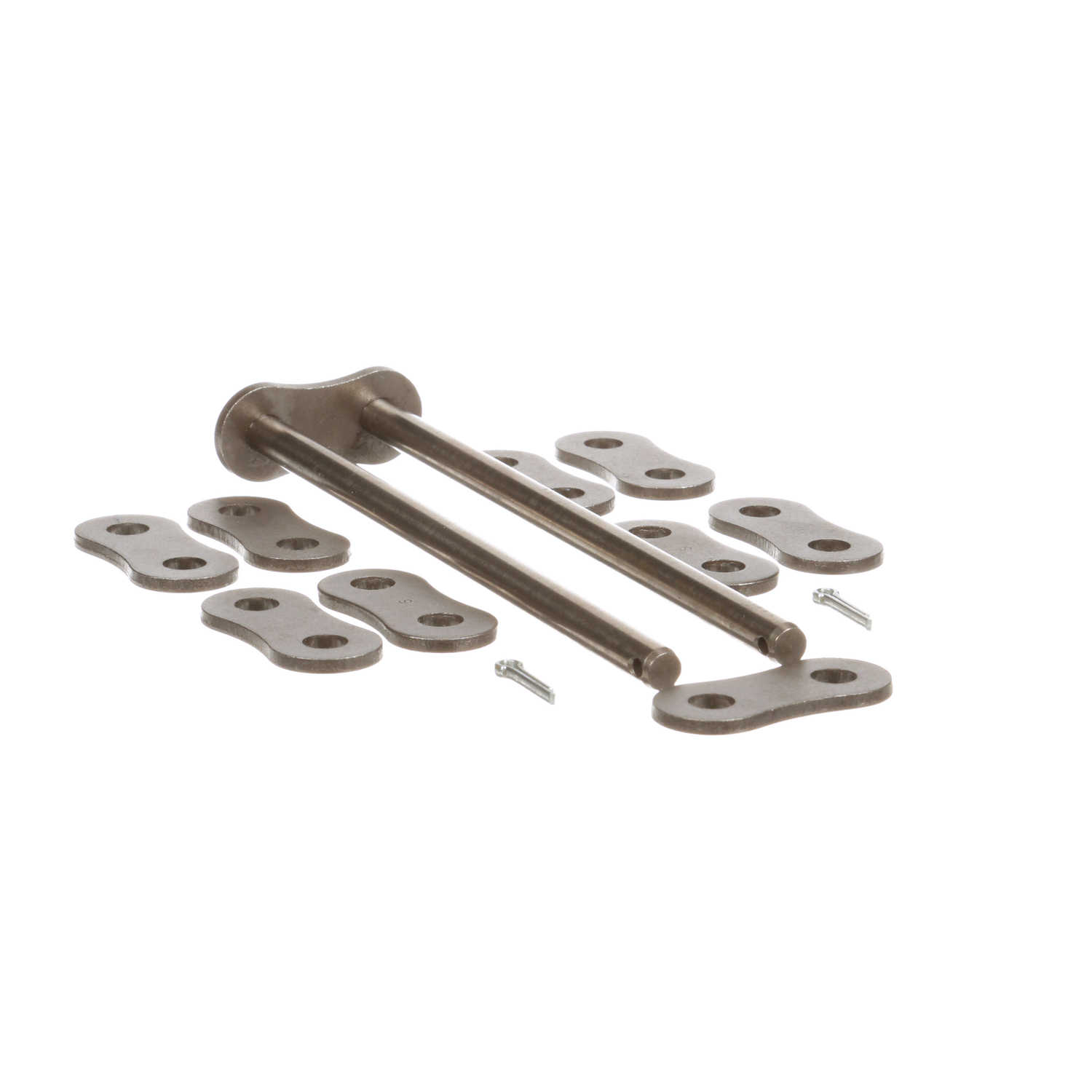

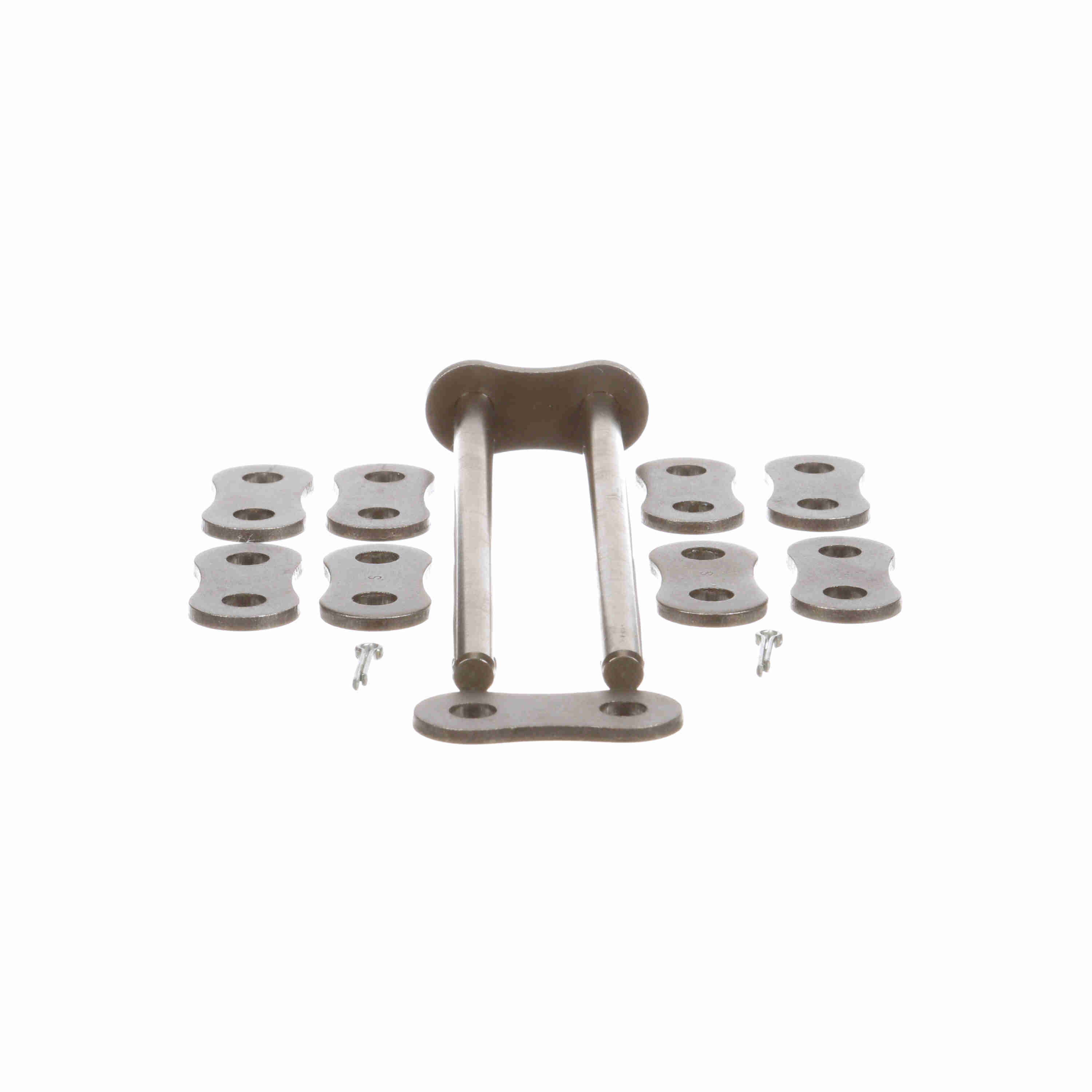

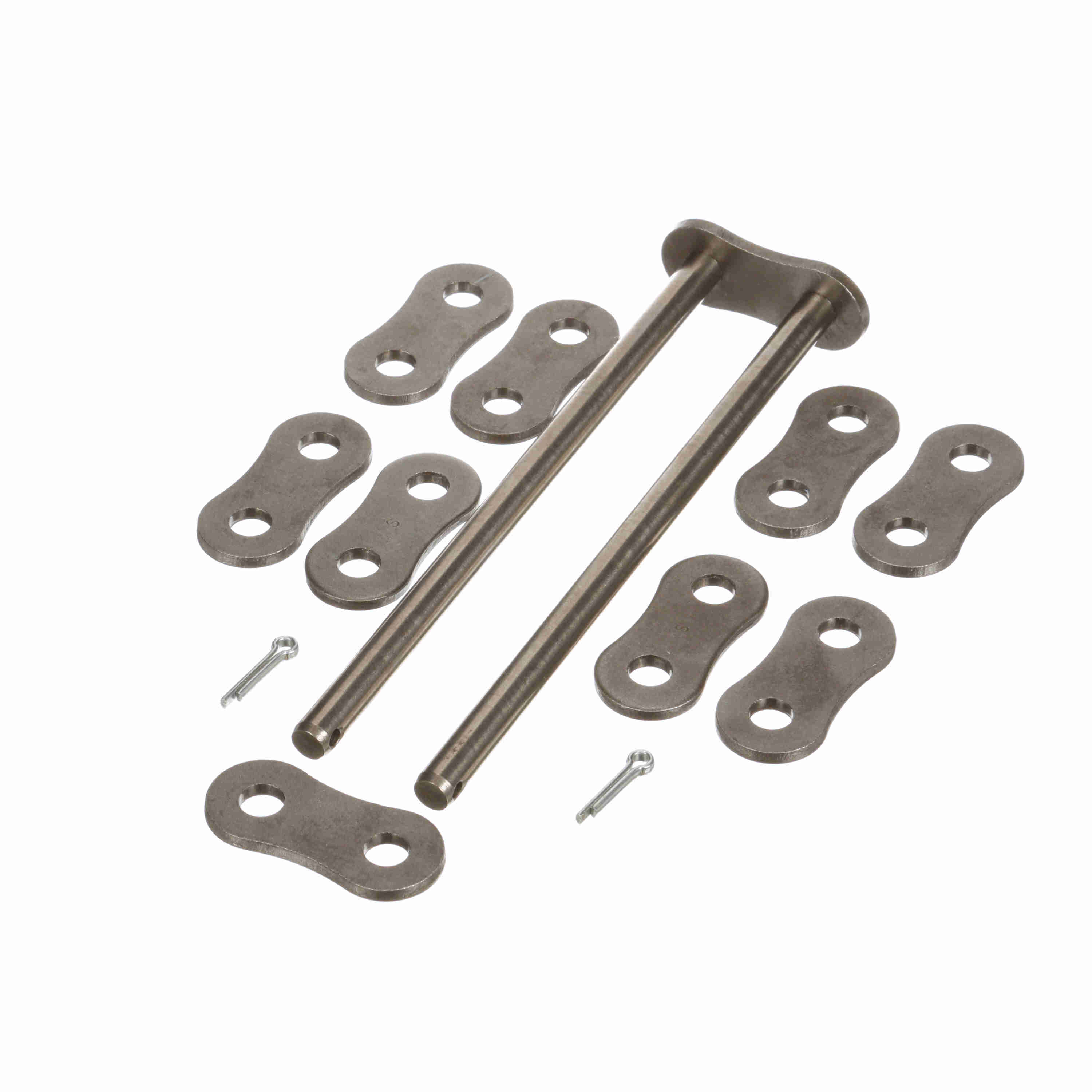

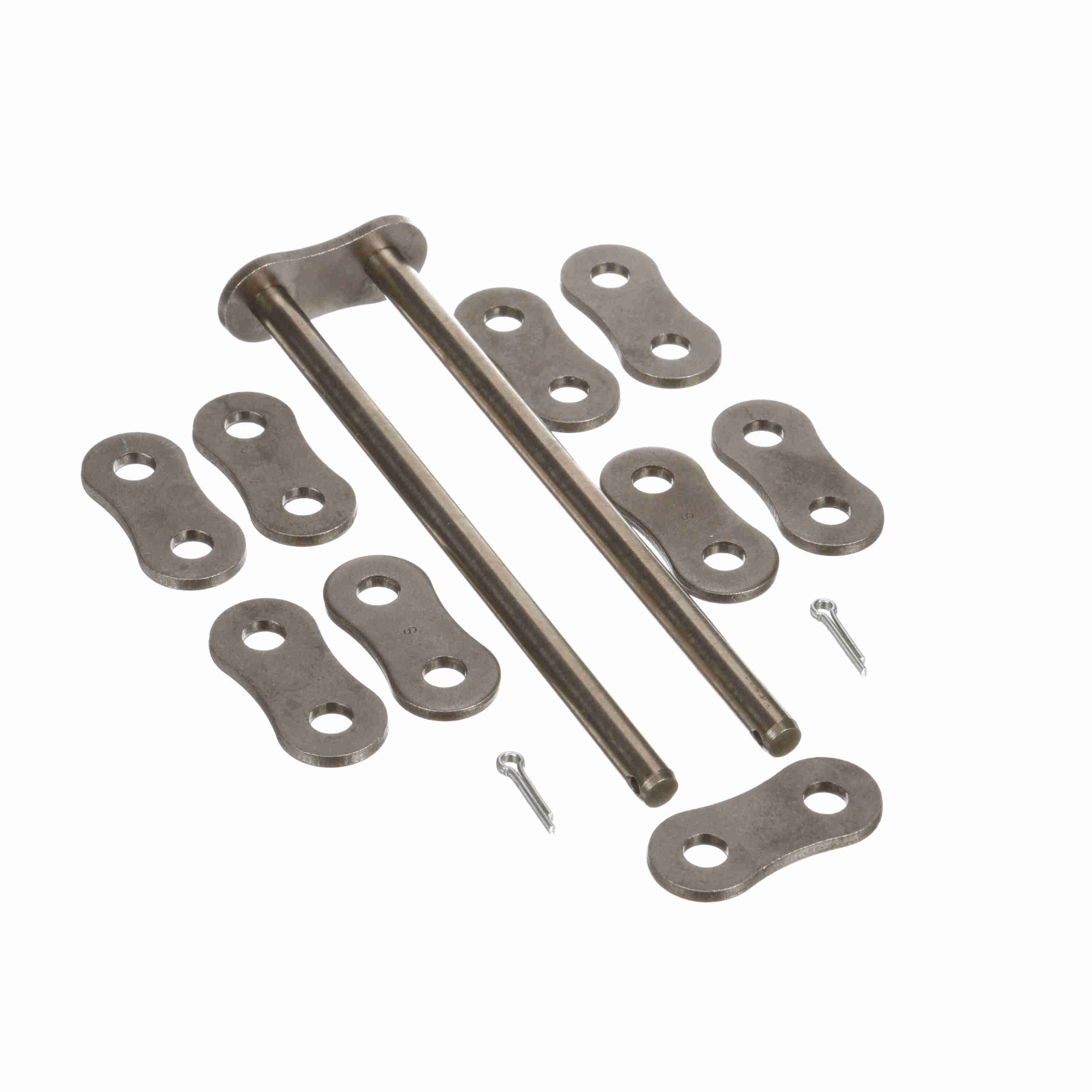

Morse Standard Roller Chain Cotter Pin Connecting Link - 80-5 C/L C/P S/F

Name: Morse Standard Roller Chain Cotter Pin Connecting Link - 80-5 C/L C/P S/F
Brand: Morse
Availability: OutOfStock

Part #:332314

Catalog #:80-5 C/L C/P S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Connecting Link - Slip Fit:	Cotter	Roller Width (in):	0.625 in
Number of Strands/Width:	5	Material:	Steel
Chain Size:	80	Number of Connecting Links Included:	1
Pin Diameter (in):	0.312 in	Roller Diameter (in):	0.625 in
Chain Type:	Standard	Chain Pitch (in):	1 in
Product Type:	Roller Chain	Chain Construction:	Cottered
Link Type:	Connecting Link	Overall Width/Pin Length (in):	5.89 in
Plate Thickness (in):	0.125 in	Inside Plate Height (in):	0.934 in
Total Length (ft):	10 ft	Side Plate Configuration:	Hourglass
