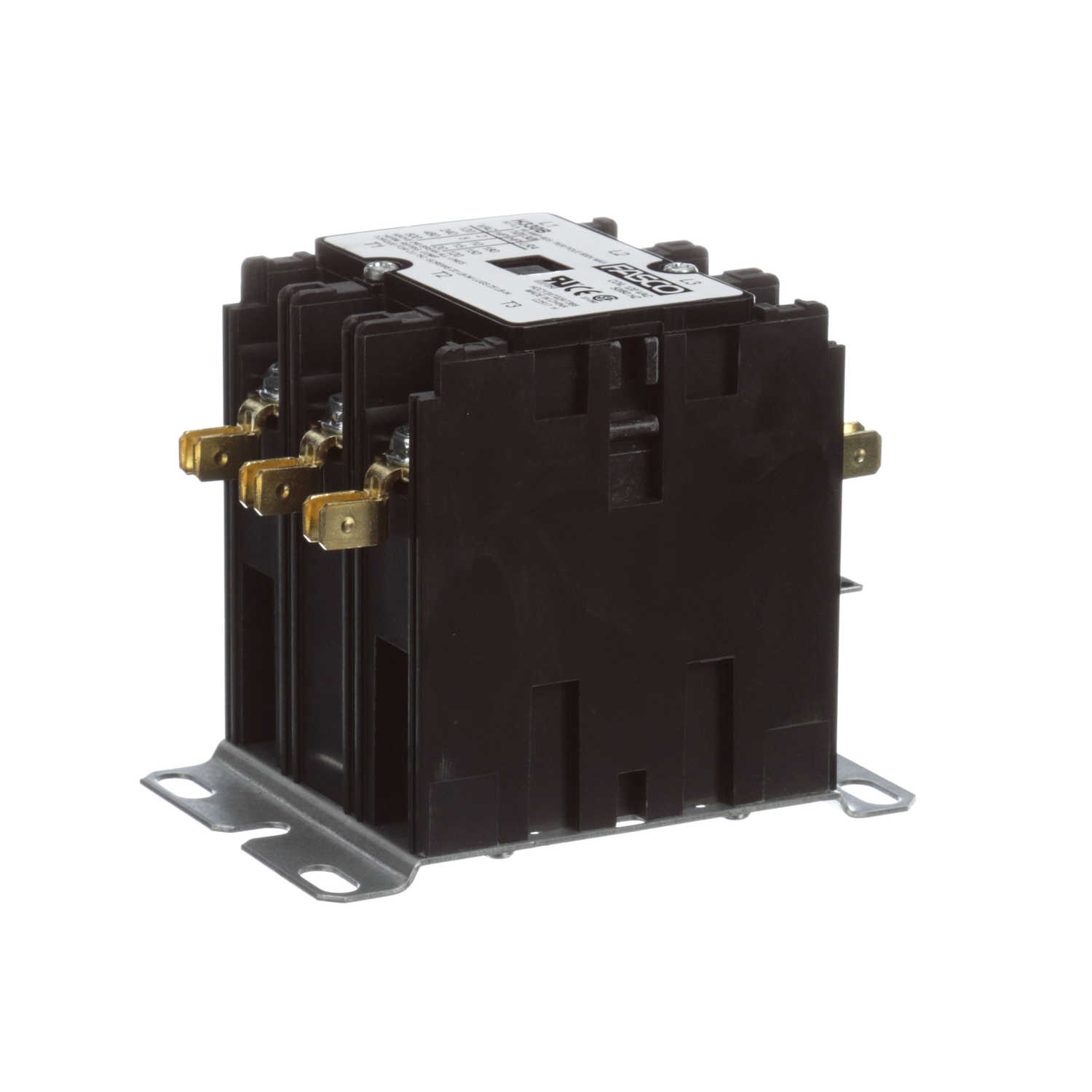

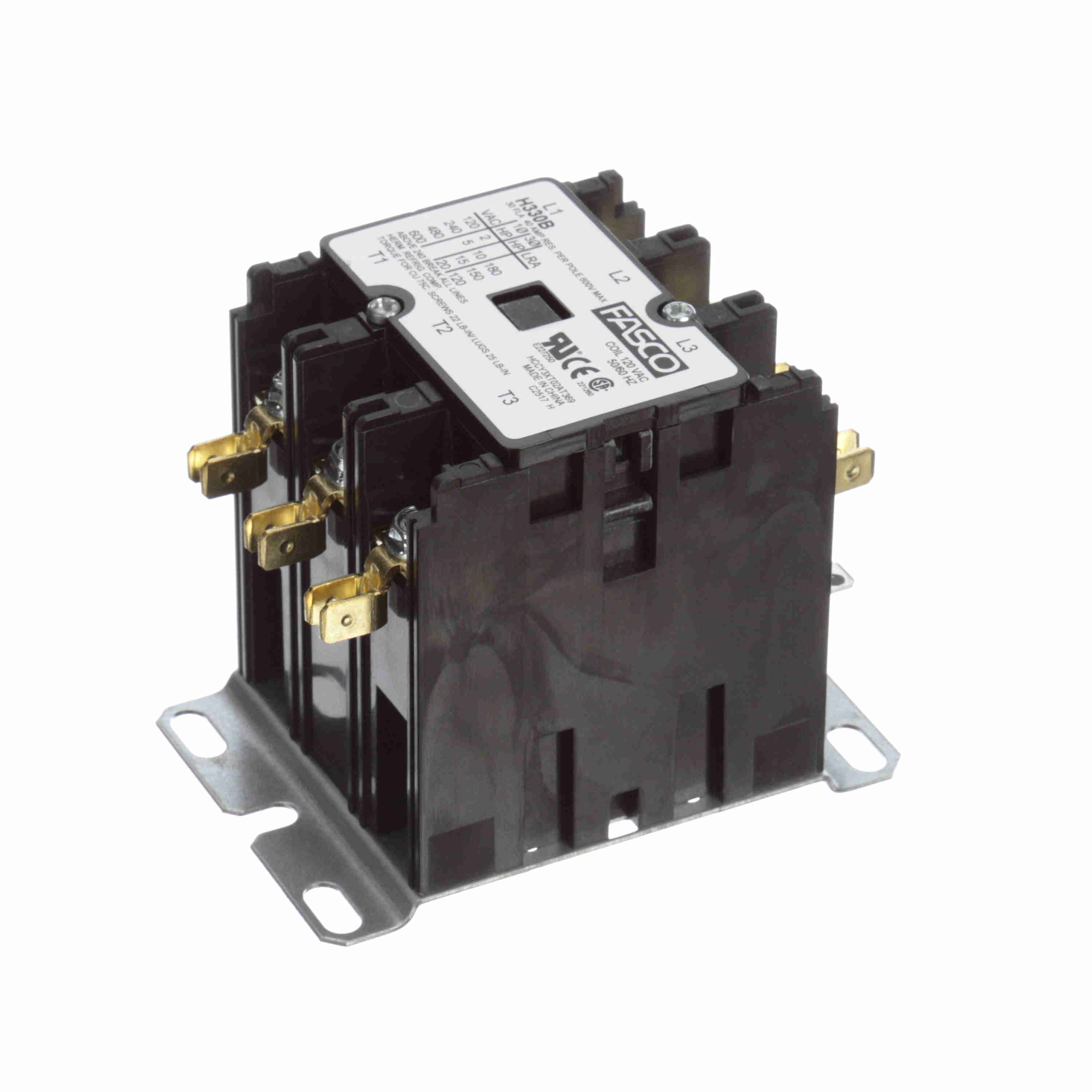

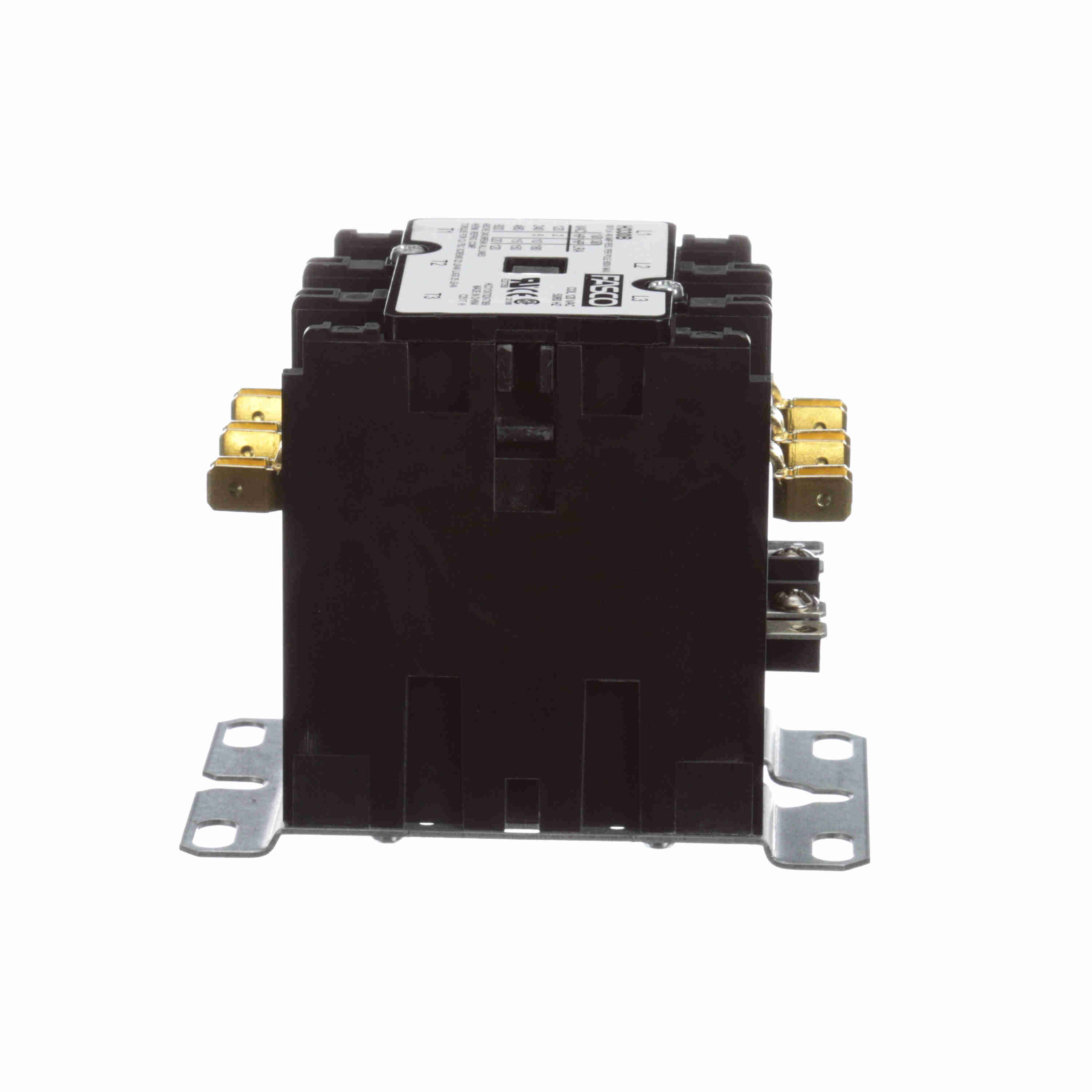

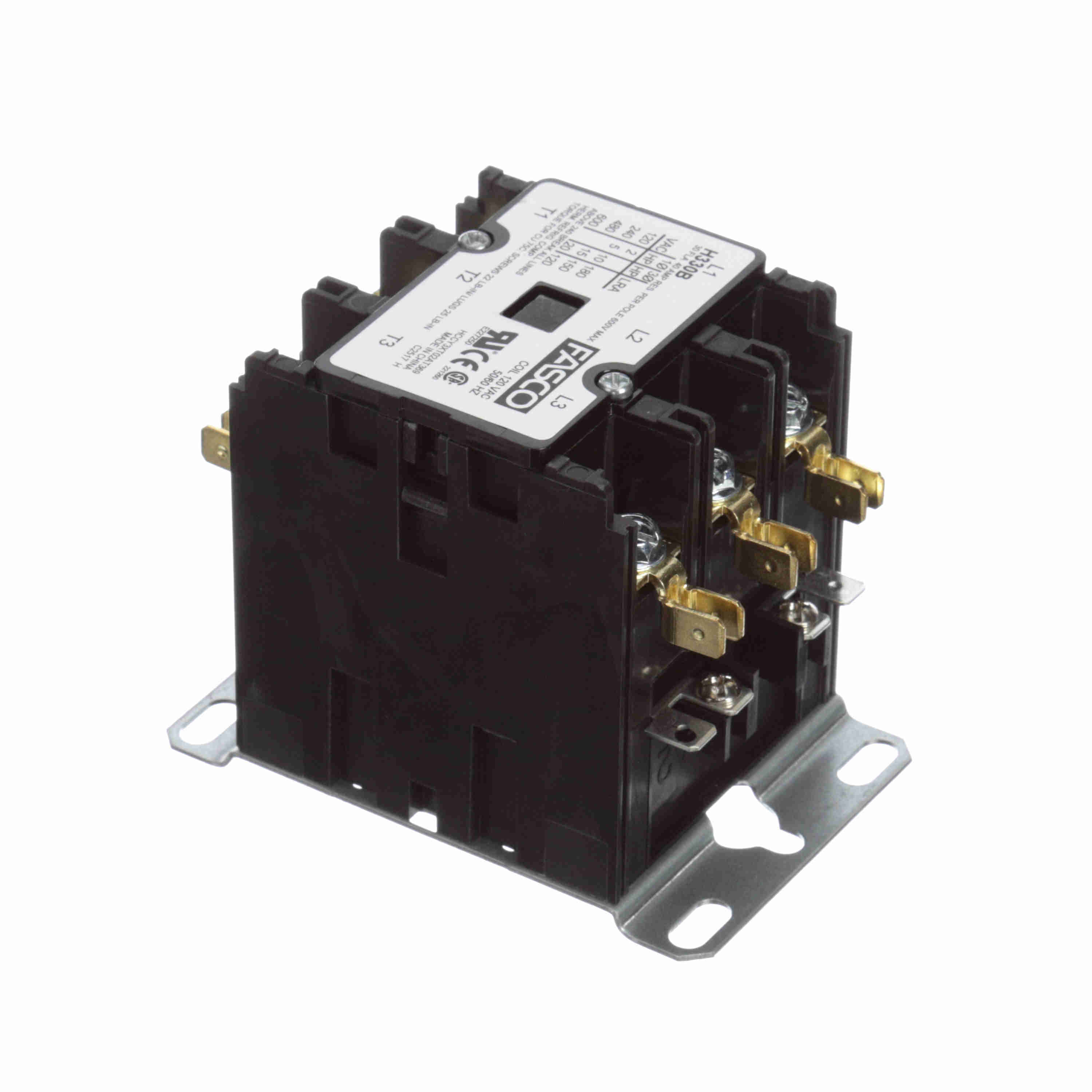

FASCO Contactor 3 Pole, 30 Amps, 120 Volts - H330B
Part #:H330B
Catalog #:H330B
KEY FEATURES
- Definite Purpose Contactor
- Number of Poles: 3
- Locked Rotor Amps: 180 / 150 / 120
- Resistive AMPS: 40
- Coil AC Volts: 120
- Coil VA Inrush 60 HZ: 60, Coil VA Sealed 60 HZ: 6
- Coil VA Inrush 50 HZ: 65, Coil VA Sealed 50 HZ: 7.5
- HP 120 Volts 1 Phase: 2, HP 208 Volts 1 Phase: 0, HP 240 Volts 1 Phase: 5, HP 208 Volts 3 Phase: 0, HP 240 Volts 3 Phase: 10, HP 480 Volts 3 Phase: 15, HP 600 Volts 3 Phase: 20
- Length x Width x Height: 3.25" x 1.76" x 2.99"
- Includes: Mounting Plate, Quick Connect Terminals, Binding Head Screws
