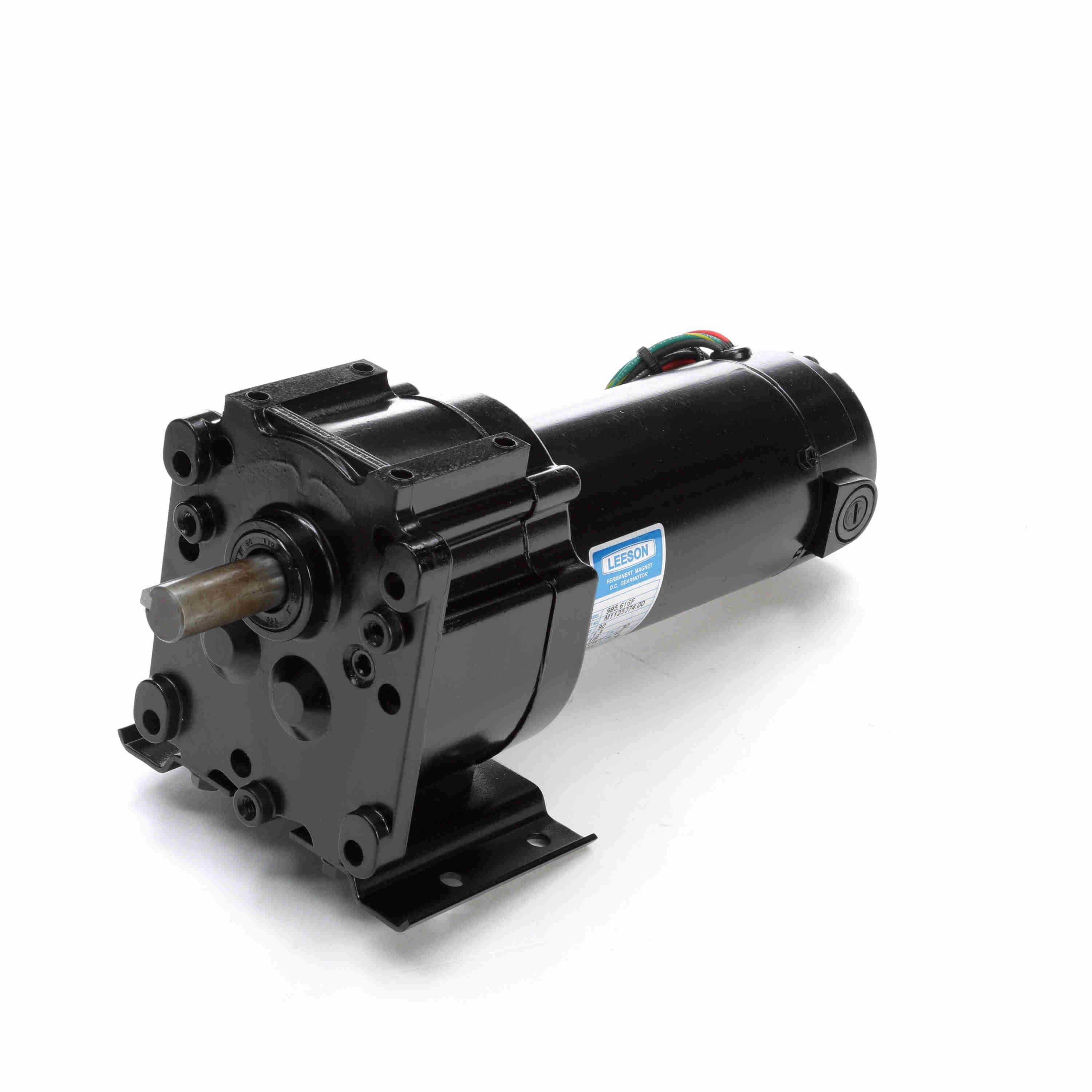

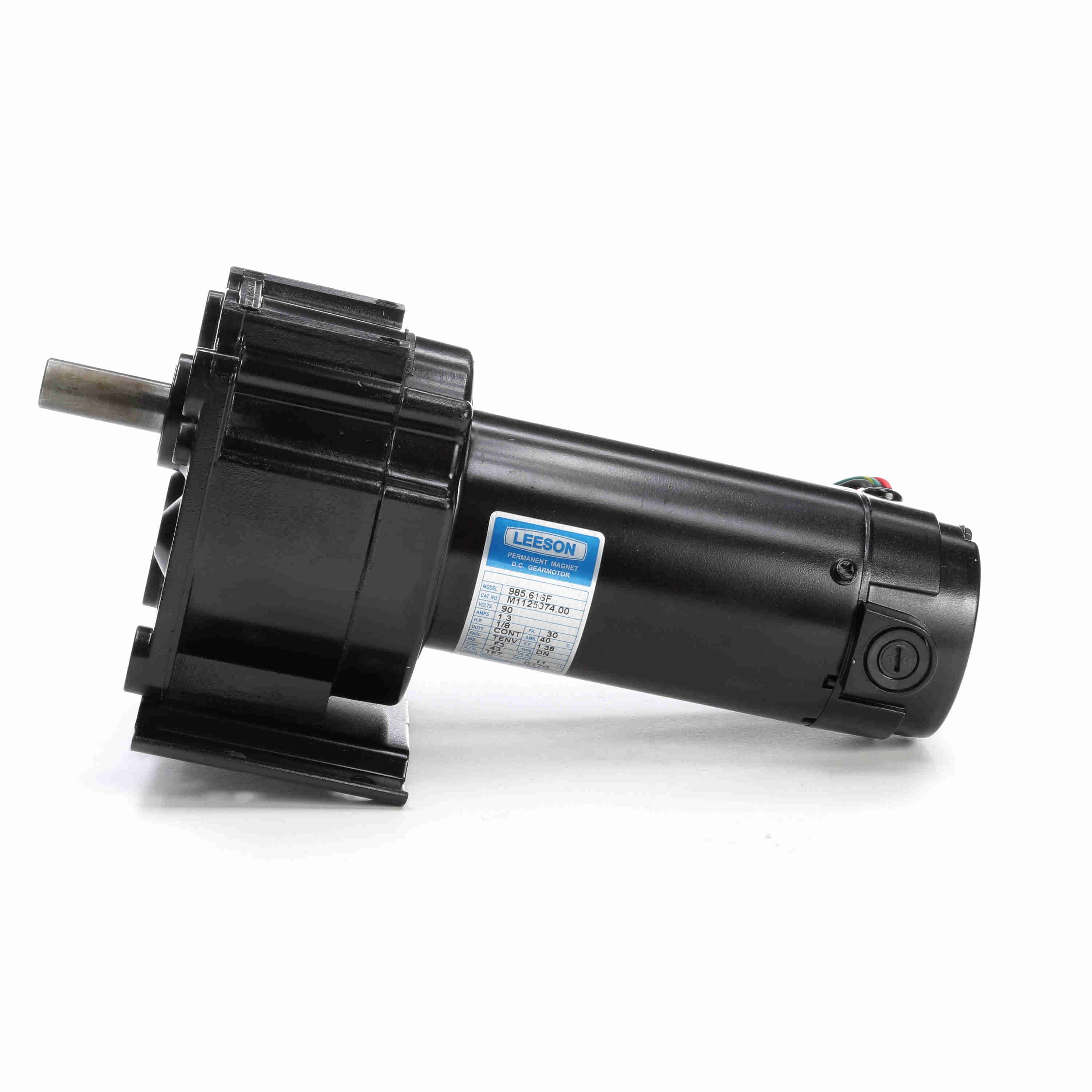

LEESON Parallel Shaft Gearmotor, 0.13 HP, 90 V, 167 RPM, 30 Frame, TENV - M1125074.00
Part #:M1125074.00
Catalog #:M1125074.00
Model #:985.616F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Nameplate Specifications
| Output HP: | 0.13 Hp | Output KW: | 0.10 kW |
| Voltage: | 90 V | Speed: | 167 rpm |
| Service Factor: | 1.0 | Frame: | 30 |
| Enclosure: | Totally Enclosed Non Ventilated | Thermal Protection: | No Protection |
| Efficiency: | 70.7 % | Ambient Temperature: | 40 °C |
| Current: | 1.3 A | Duty: | Continuous |
| Insulation Class: | F | Drive End Bearing Size: | 6000 |
| Opp Drive End Bearing Size: | 6000 | UL: | Recognized |
| CSA: | Y | CE: | Y |
Technical Specifications
| Rotation: | Reversible | Mounting: | Special |
| Shaft Type: | Parallel | Overall Length: | 11.45 in |
| Frame Length: | 4.91 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.5 in | Torque: | 43 LB-IN |
General Specifications
| UPC: | 691720091173 | Weight: | 12.00 LB |
| Packaged Length: | 16.50 IN | Packaged Width: | 7.68 IN |
| Packaged Height: | 6.69 IN | Country of Origin: | United States of America |
