Rotating Biological Contactor Drives
Water Treatment Maintenance Superintendents, Design Engineers, and Consultants agree...
Browning® products meet all your needs for Rotating Biological Contactor drives.
Specify the BROWNING solution on your next Rotating Biological Contactor installation or retrofit.
Superior Rotating Biological Contactor Drive Solutions
Built Rugged and Dependable for Minimal Maintenance and Downtime
Where to Buy
Related Models
Related Models
- HIGH QUALITY BEARINGS
- 100,000 Hour B-10 life at 5HP Class II Service
- GENEROUS SHAFT DIAMETERS
- Support overhung loads generated by V-Belt drive assembly

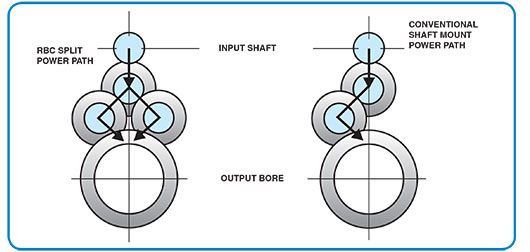

- SPLIT POWER PATH DESIGN
- Provides twice the tooth engagement when compared to conventional drives
- LEAK FREE OPERATION
- Plunge Ground Shafts with dual lip oil seals
| BROWNING RBC DRIVE RATINGS | |||||
|---|---|---|---|---|---|
| MOTOR HP/RPM | AGMA SERVICE FACTOR |
V-BELT DRIVE RATIO |
GEAR DRIVE RATIO | FINAL OUTPUT SPEED |
FINAL OUTPUT TORQUE RATING |
| 5/1150 | Class II | 5:2:1 | 148:1 | 1.5 RPM | 199,600 in./lbs. |
| 7.5/1150 | Class I | 5:2:1 | 148:1 | 1.5 RPM | 297,400 in/lbs |

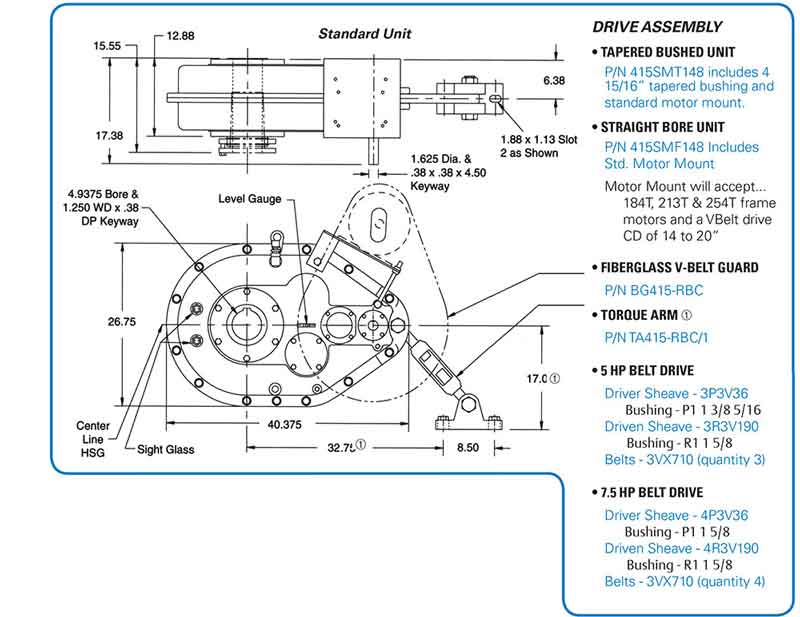

Rotating Biological Contactor Drive Dimensions
- COMPACT DESIGN AND DROP-IN FEATURES ALLOW FOR QUICK REPLACEMENT OF PROBLEM DRIVE
- Universal housings allow for left or right-hand installations
Reducer, Belt Guard, Torque Arm, Belt Drive and Motor are to be ordered separately
➀ If torque arm arrangement is longer than 32.75” in the horizontal, or smaller than 17.00” in the vertical dimension, contact Application Engineering at 800-626-2093

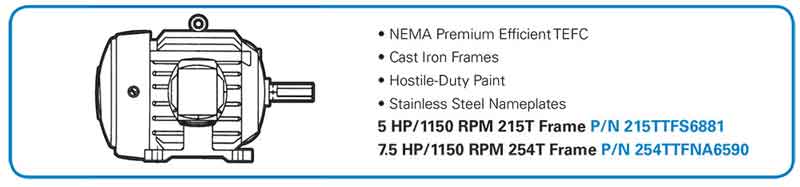

- SEVERE DUTY TOTALLY ENCLOSED FAN COOLED MOTORS
- Designed for Waste Water Treatment Plant Operation
