Chillers and Condensers
Chiller and Condenser Systems
Chillers and condensers play a vital role in commercial HVAC cooling systems. Chillers operate by extracting heat from liquids, typically used to cool spaces like commercial buildings, industrial facilities, and data centers. Condensers (also known as AC condensers) complement this by rejecting the extracted heat and converting refrigerants from gas to liquid. Condensers can be air-cooled, water-cooled, or evaporative, depending on system design. Working together, chillers and condensers ensure proper temperature regulation for energy-efficient operation in commercial buildings and industrial processes, which is essential for comfort, equipment protection, and process efficiency.Talk to one of our expert sales professionals about how our solutions can efficiently power your business.
Chillers and Condensers in Action

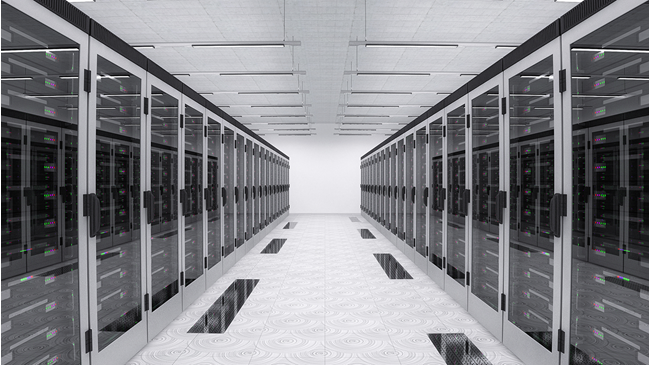

Data Centers
The heat emitted in data centers spaces threatens the health of the equipment that is integral to keeping digital systems up and running. As cloud computing and digital reliance increases, new data center and warehouse environments continue to emerge, creating a need for efficient cooling and ventilation.
Commercial Buildings
Multi-storied buildings are tenant to businesses of all shapes and sizes with different heating and cooling demands. These environments often require multiple air units to support the architecture and design of the space.
Hospitals & Health Centers
Sterile and controlled environments in the health and medical field require proper circulation and temperature control to support cleanliness, medical procedures, and patient support. These environments are considered energy-intensive and adhere to strict energy consumption standards.
Motor Solutions for Chillers and Condensers

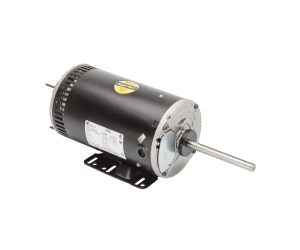

JuggerNaut Motors
JuggerNaut motors are PSC motors with a 70ºC operating ambient temperature and voltage change device configurations, allowing easy adaptation into condenser fan applications.

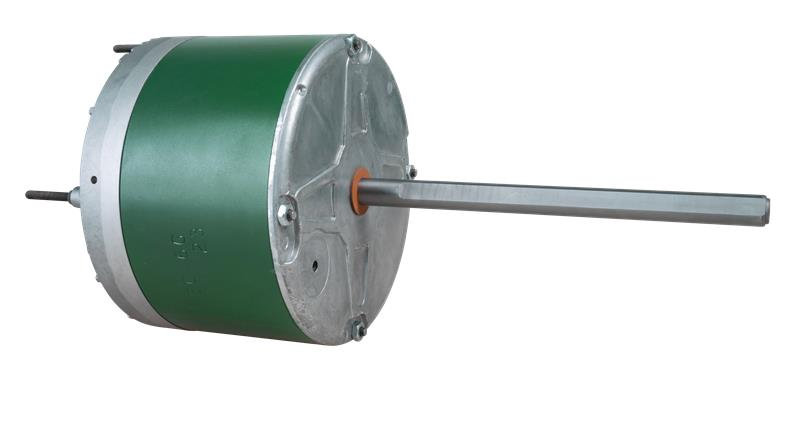

Evergreen® OM Motors
Evergreen OM motors are EC motors designed to replace permanent split capacitor (PSC) outdoor condenser fan motors. Just one motor replaces up to 28 of the most common PSC motor ratings.
Chiller and Condenser Overview

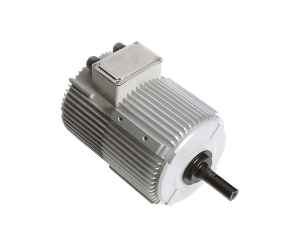

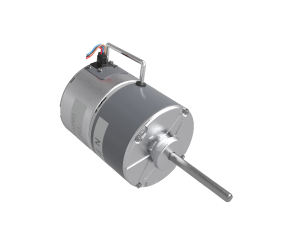

| SyMAX-PRO Extruded Aluminum | SyMAX-PRO Rolled Steel | 142 R | 142 R II 460V | JuggerNaut Motor | Evergreen OM | |
|---|---|---|---|---|---|---|
| Application | Commercial | Commercial | Commercial | Commercial | Commercial | Residential |
| Phase | Three | Three | Single | Single | Three | Single |
| Motor Type | EC Motor | EC Motor | EC Motor | EC Motor | Induction Motor | EC Motor |
| Horsepower (HP) Range | .75-4.2 HP | .75-3 HP | 1/3-1 HP | 1/3-1 HP | 1-1.5 HP | 1/3 HP |
| Frame Size | 56 frame | 56 frame | 48 frame | 48 frame | 56 frame | 48 frame |
| Voltage | 460V | 460V | 230V | 460V | 230/460 & 190/380V | 208-230V |
| Ambient Temperature Rating | 65°C | 60°C | Up to 60°C | Up to 60°C | Up to 70ºC | Up to 60°C |
| Enclosure Type | Extruded Aluminum | Rolled Steel | Rolled Steel | Rolled Steel | Rolled Steel | Rolled Steel |
| Ingress Protection (IP) Rating | IP55 | Up to IP54 | IP44 | IP44 | Class F Insulation | IP44 |
| Integrated Control | ModBus connectivity | ModBus connectivity | Serial | Serial | - | - |
| A2L Compliant | Yes | Yes | Yes | Yes | Yes | Yes |
| Brand | LEESON | LEESON | Genteq | Genteq | Century | Genteq |
