HEB
Genteq®'s High Efficiency Blower (HEB) provides a double digit improvement on efficiency which using the same trusted Genteq® ECMs that are in these applications today. Utilizing proven EON and Endura Pro motors, the HEB can save up to 50W while operating quieter. It is a cost effective solution to upgrade any forward curved blower system while streamlining manufacturing processes while lowering operating costs for end users.
| HEB with Endura Pro | HEB with EON | |
| Horsepower Range | 1/3HP - 1HP | 1/3HP - 1HP |
| Airflow Range | 200-2600 cfm | 200-2600 cfm |
| Max Static Pressure | 2.75" | 2.75" |
| Max Speed | 1200 RPM | 1400 RPM |
| Voltages | 115V, 240V, 277V, 460V | 20/240V & 120/240/277V |
| Sound Reduction (Vs Competition) |
2 dBA | 2 dBA |
| PWM Input (24v) | ✔️ | ✔️ |
| Constant Torque Control | ✔️ | ✔️ |
| Constant Airflow Control | ✔️ |
Features
- Heavy duty welded aluminum steel is standard on blower assembly
- ECM Toolbox based programming
- Low profile to fit most applications
- Unique blower system removes motor from blower inlet eliminating restriction and improving system efficiency
Benefits
- Improves Heat Transfer and reduces hot spots
- Reduces pressure drop across appliance
- Saves from 10% to 30% of the watts as compared to standard technology blowers
- Sound quality is equal or superior to standard technology blower systems
Specifications:
- 9" 10" and 11" diameter wheels from 4" to 11" wide
- Patented blower housings
- Operating speed range up to 1400 rpm
- UL® & cUL recognized system
Applications
- Air Handlers & Furnaces
- DOAS Units
- Water Source Heat Pumps
- VAV Units and Terminal Boxes
- Single Pack Vertical Units
- Fan Coils
- Biomedical Vent Hoods

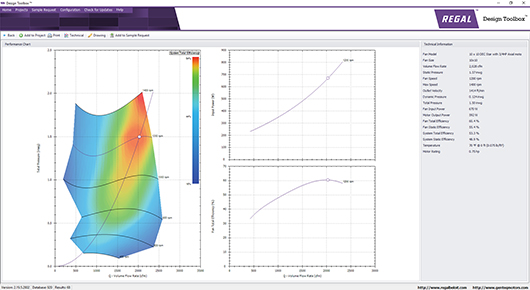

Our Design Toolbox software can help select the right blower for your application. Search by airflow, static pressure, and size.
Multiple options available with proven Genteq EC Motors. Our DEC Star blower provides the widest range of performance in the smallest package with our proprietary axial motor technology. Our HEB blower is offered with the efficient Endura Pro motor or the constant airflow capabilities of our EON motor. Find the solution that best fits your application.
| HEB with Endura Pro | HEB with EON | DEC Star | |
| Horsepower Range | 1/3HP - 1HP | 1/3HP - 1HP | 1/2HP - 3/4HP |
| Max Airflow | 200-2600 cfm | 200-2600 cfm | 200-2100 cfm |
| Max Static Pressure | 2.75" | 2.75" | 2" |
| Max Speed | 1200 RPM | 1400 RPM | 1400 RPM |
| Voltages | 115V, 240V, 277V, 460V | 20/240V & 120/240/277V | 120/240V & 120/240/277V |
| Sound Reduction (Vs Competition) |
2 dBA | 2 dBA | 4 dBA |
| PWM Input (24v) | ✔️ | ✔️ | ✔️ |
| Constant Torque Control | ✔️ | ✔️ | ✔️ |
| Constant Airflow Control | ✔️ | ||
| Reduced Width | 3/4" Smaller | ||
| Extended Range | Perform at up to 1/2" additional static pressure |
