Washdown Motors
LEESON® Washguard® motors deliver something most washdown duty motors can’t — the confidence to know your applications will be up and running no matter what you throw at them. Whether you need a motor that handles an occasional splash or a solution that handles continuous washdown 24/7, Regal Rexnord’s broad range of LEESON washdown motors can take it.
Choose a solution that’s USDA approved, FDA approved, BISSC certified, or a motor with an IP69 rated enclosure protection — to name just a few. If you’re looking for answers to tough application issues, look to LEESON motors.
Related Documents
Extreme Duck® Ultra Motors
The Extreme Duck® Ultra washdown duty motor is Rega Rexnordl’s revolutionary designed stainless-steel motor featuring our full body epoxy encapsulation system. Our patented solutions ensure greater reliability and uptime by providing maximum protection in the most demanding and harshest washdown environments.
Premium Duck™ Motors
The Premium Duck™ motors are proven performers in clean room and severe chemical-processing applications involving frequent motor washdown with nitric acid and caustic lye. With IP56 enclosure protection, this washdown duty motor is perfect for use in applications such as pharmaceutical, food processing, dairy, chemical processing, beverage, and bottling.
SST Duck™ Motors
The SST Duck™ Wash Down Duty® motors are designed for ultra-clean operations where a paint-free motor is needed. All stainless-steel external components withstand severe washdown duty environments found in food and beverage processing as well as pharmaceutical or chemical processing.
Washguard II Motors
The Washguard® II motors are well suited for the demanding environments of food processing areas requiring frequent sanitation using high pressure cleaning with concentrated caustic solutions, areas of high humidity, and in chemical environments. Typical applications for this washdown motor include bakeries and food processing facilities, as well as conveying.
White Duck™ Motors
The White Duck™ motors are designed for an occasional washdown. Coated in a high-gloss, high-durability, USDA-approved white epoxy finish, White Duck™ washdown motors are a perfect fit in conveying, bottling, food packaging, pumping and fan applications.

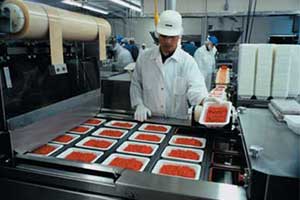

Prevent Bacterial Buildup in Food Processing
With full stainless steel construction, these washdown motors handle high pressure spray and caustic chemical washdown environments. To keep food processing byproducts and fluids from being harbored on the motor, seams have been minimized, shafts fully sealed, and a new mounting design helps prevent the opportunity for bacterial build-up.
LEESON WASHGUARD MOTORS FEATURES AT A GLANCE
| FEATURE | WHITE DUCK | WASHGUARD II | SST DUCK | STAINLESS DUCK | EXTREME DUCK ULTRA |
|---|---|---|---|---|---|
| SEALING ADVANTAGES | |||||
| Complete motor encapsulation | • | ||||
| Interior corrosion protection | • | • | • | • | • |
| Motor breather plugs/drain plugs | • | • | • | • | Not needed for total encapsulation |
| Shaft seals on both ends of TEFC motors | • | • | • | • | • |
| Two-piece shaft seal | • | ||||
| Viton®* seals between end-bells and frame | • | • | |||
| O-ring sealed openings | • | • | |||
| Potted lead entrance | • | ||||
| INSTALLATION AND MAINTENANCE | |||||
| Color-coded leads | • | ||||
| Non-wicking lead wires | • | ||||
| Sealed bearings | • | • | • | • | • |
| Internally locked shaft-end bearing | • | • | • | • | • |
| Screw-on conduit box cover | • | • | |||
| 360° rotatable conduit box | • | ||||
| Q-Car™ rotor cartridge change-out | • | • |
|||
| CERTIFICATIONS | |||||
| Nameplate permanently etched in frame | • | • | • | ||
| 60Hz and 50Hz data on nameplate | • | • | • | • | • |
| CE mark on nameplate | • | • | • | • | • |
|
Standard motors built with Inverter-rated Insulation System and marked on nameplate (1 HP and higher) |
• | • | • | • | • |
| IP Ratings | IP55 | IP55 | IP55 | IP56 | IP69 |
| UL, CSA listed | • | • | • | • | • |
| BISCC approved | • | • | |||
| SPECIAL CONSIDERATIONS | |||||
| Pump motor designs | • | • | |||
| Brakemotor designs | • | • | |||
| DC motors available | • | • | |||
| Metric designs available | • | • | |||
| Local Inventory Support | • | • | • | • | • |
CHEMICAL RESISTANCE COMPARISON
Preventing rust and corrosion in washdown environments is a top priority in the food and beverage industries. Even a small trace of rust or corrosion is enough to shut down a line causing unwanted downtime and possibly resulting in regulatory fines. In order to prevent rust and corrosion, take time to review the washdown chemicals used in your facility and evaluate the motors exposure to washdown procedures. Choose a finish that supports the level of protection required for that application.
| CHEMICAL NAME | % CONCENTRATION | EXPOSURE | WHITE EPOXY | STAINLESS STEEL |
|---|---|---|---|---|
| Fresh Water | 100 | Continuous | Excellent | Excellent |
| Salt Water | 5 | Continuous | Excellent | Excellent |
| Salt Brine | Dilute | Continuous |
Fair | Good |
| Ammonium Hydroxide | Dilute | Continuous |
Good | Excellent |
| Calcium Hydroxide (Lime) | 100 | Intermittent | Good | Excellent |
| Citric Acid | 10 | Continuous | Good | Excellent |
| Ethylene Glycol | 100 | Continuous | Excellent |
Excellent |
| Hydrochloric Acid | 37 | Intermittent |
Good | Poor |
| Lactic Acid | Dilute | Intermittent |
Excellent |
Excellent |
| Lactic Acid | 100 | Intermittent |
Fair | Fair |
| Mineral Spirits | 100 | Continuous | Excellent |
Excellent |
| Potassium Hydroxide | 50 | Intermittent |
Fair | Fair |
| Sodium Hydroxide | 5 | Continuous |
Fair | Excellent |
| Sodium Hydroxide | 20 | Continuous |
Fair | Excellent |
| Sodium Hydroxide | 50 | Continuous | Excellent | Excellent |
| Sodium Hypochlorite (Bleach) | 15 | Intermittent |
Excellent | Excellent |
| Sulfuric Acid | 10 | Intermittent |
Fair | Fair |
| Toluene | 100 | Continuous |
Fair | Fair |
| Animal Fats | NA | Continuous |
Excellent |
Excellent |
| Mineral Oils | NA |
Continuous | Excellent | Excellent |
| Vegetable Oils | NA | Continuous | Excellent | Excellent |
|
Cutting Oils |
NA | Continuous | Excellent | Excellent |
| Detergents | NA | Continuous | Excellent | Excellent |
| Gasoline | NA | Continuous | Fair | Fair |
| Hydraulic Fluid | NA | Continuous |
Excellent | Excellent |
| Lubricating Oils | NA | Continuous | Excellent | Excellent |
| General Weathering | NA | Continuous | Fair | Excellent |
| Mold/Mildew | NA | Continuous |
Excellent |
Excellent |
| Light Abrasion | NA | Continuous |
Excellent | Excellent |
| Heavy Abrasion | NA | Continuous |
Fair | Excellent |
